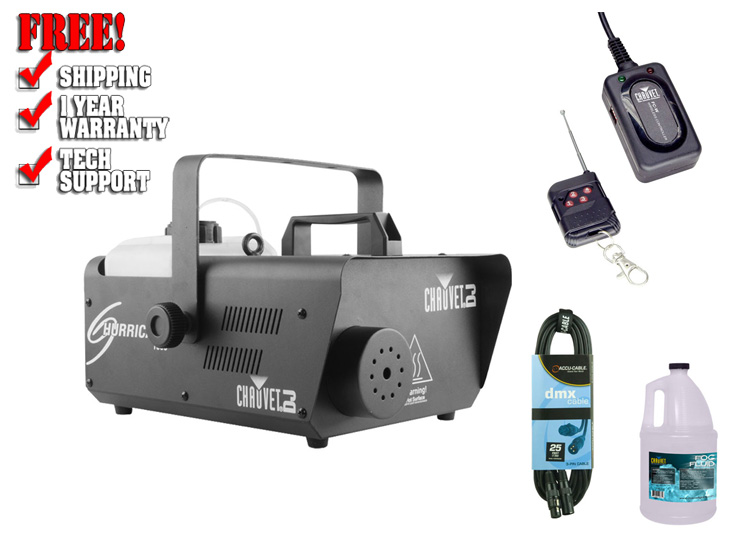

Chauvet DJ Hurricane 1600 H1600 Fog Machine +Wireless Remote +Fluid +DMX Cable

Description

Package Includes

1 x Chauvet Hurricane 1600

1 x Chauvet FC-W

1 x Chauvet FJU Fog Fluid Gallon

1 x American DJ 25 foot 3 Pin DMX Cable

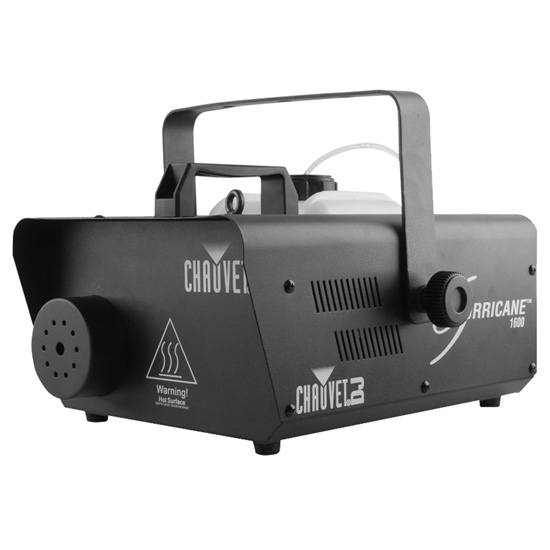

Chauvet Hurricane 1600

The Hurricane 1600 is a compact, lightweight high output fog machine that with DMX control to enhance any light show. Variable output control from DMX or the included timer remote allows for precise effect operation.The Hurricane 1600 features Always Ready technology providing fog on demand. A manual fog button provides easy control at your finger tips and the LED-illuminated tank enhances operation and safety. An advanced fluid sensor, with automatic shut-off protects the pump from overheating. The machine has ultra-fast heat up time for a quick setup and residue-free water based fog output.

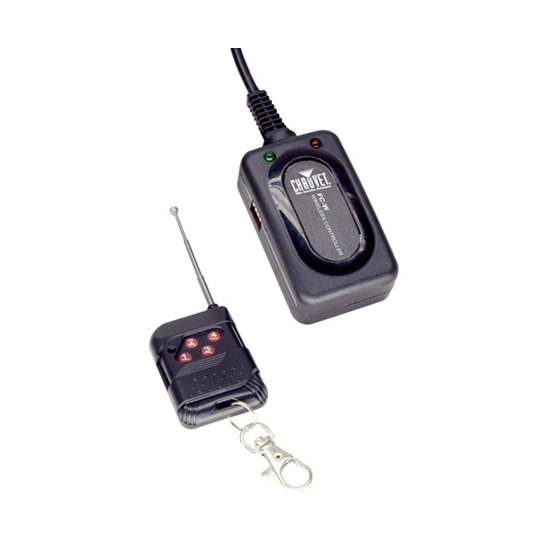

Chauvet FC-W

 Wireless Remote Controller (FC-W)

The FC-W is a wireless remote control designed to activate up to four CHAUVET fog machines independently (separate receivers for additional foggers are required). Two LED indicators display whether the machine is ready or heating.

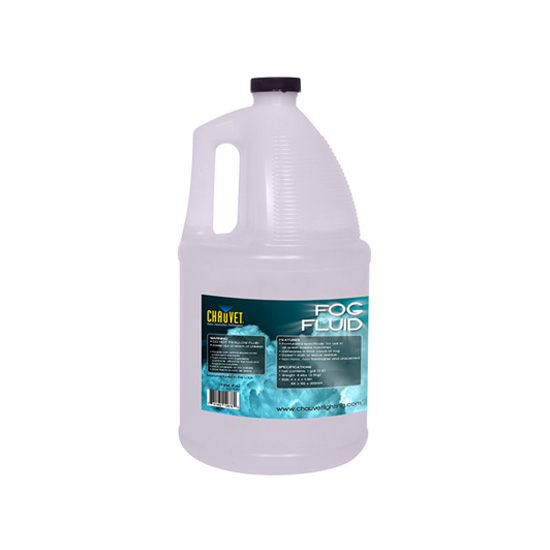

Chauvet FJU Fog Fluid Gallon

CHAUVET fluids are designed and tested to provide exceptional output from CHAUVET fog, snow, and bubble machines. The use of other, inferior products can cause irreparable damage to your machine. Play it safe and get maximum output by trusting CHAUVET fluids.

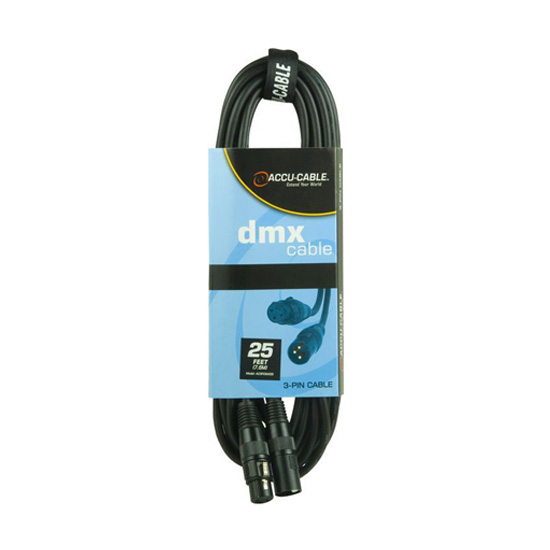

American DJ 25 foot 3 Pin DMX Cable

 22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Specifications

Chauvet Hurricane 1600

• Compact, lightweight, high output fog machine with DMX control
• Variable output control from DMX or the included timer remote allows for precise effect operation
• Always Ready technology provides fog on demand
• Advanced fluid sensor, with automatic shut-off protects the pump from overheating
• Manual fog button provides easy control at your finger tips
• LED-illuminated tank enhances operation and safety
• Ultra-fast heat up time for a quick setup
• Residue-free water based fog output
• DMX Channels  : 1
• DMX Connectors  : 3-pin XLR
• Tank Capacity  : 0.63 gal (2.4 l)
• Remote Length  : 15 ft (4.5 m)
• Heat-up Time  : 4 min
• Output  : 25,000 cfm
• Fluid Consumption  : 120 ml/min
• Input Voltage  : 120 VAC, 60 Hz or 230 V, 50 Hz
• Power and Current  : 1,580 W, 12.8 A @ 120 V, 60 Hz
• Power and Current  : 1,580 W, 6.8 A @ 230 V, 50 Hz
• Size  : 13.7 x 12.3 x 10 in (348 x 312 x 253 mm)
• Optional Controllers  : FC-W, FC-M
• Approvals  : CE

Chauvet FC-W

• Increase flexibility at any event by wirelessly triggering the fog output in most CHAUVET DJ fog machines
• Eliminates the need for extra plugs by receiving power from the fog machine
• Simplify operation with 2 LED indicators displaying the machine's state (heating and ready)
• Simultaneously or separately trigger up to 4 fog machines
• Dimensions : (Receiver): 3.2 x 1.9 x 1.1 in (80 x 48 x 29 mm)
• (Transmitter) : 2.3 x 1.5 x 0.5 in (58 x 39 x 14 mm)
• Operating Frequency : 433MHz

Chauvet FJU Fog Fluid Gallon

• Chauvet FJU 1 Gallon Fog Fluid Juice for Hurricane & Standard Fog Machine.

American DJ 25 foot 3 Pin DMX Cable

Conductor :

• Number of Pairs : 1
• Total Number of Conductors : 2
• AWG : 22
• Stranding : 0.15 x 19
• Conductor Diameter : .0354"
• Conduct or Material : TC-Tinned Copper

 Insulation :

• Insulation Material PE Polyethylene

 Lay Length:

• Lay Length : 2.5"
• Direction : Left Hand Lay
• Twists : 4.8 per foot

 Inner Jacket:

• Inner Jacket Material : PE- Polyethylene
• Inner Jacket Diameter : .055"
• Pair Color Code : Black/White

 Outer Shield:

• Outer Shield Trade Name : Duofoil®
• Outer Shield Type : Tape/Braid

 Outer Shield Material:

• Layer Number:1, Material Trade Name : Dufoil®, Type : Tape, Material : Aluminum Foil-Polyester, Coverage % : 100
• Layer Number : 2, Material Trade Name : Dufoil®, Type : Braid, Material : TC-Tinned Copper, Coverage % : 85

 Outer Jacket:

• Outer Jacket Material : PVC-Polyvinyl Chloride

 Overall Nominal Diameter:

• Overall Nominal Diameter : .229"

 Mechanical Characteristics:

• Operating Temperature Range : (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight : 31 lbs/1000
• Minimum Bend Radius (Install) : 3.2"
• Maximum Recommended Pull Tension : 72 lbs.

 Electrical Characteristics:

• Nominal Characteristic Impedence : 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz : 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z : 23 pF/ft
• Nominal Velocity of Propagation : 66%
• Nominal Delay : 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C : 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C : 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft) : 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current : 2.1 A mps per conductor @ 25 degree C
