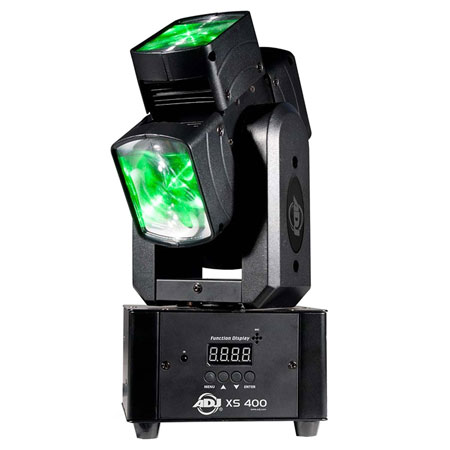

American DJ XS 400 Tri Lense Moving Head Quad Pack

The XS 400 comes with 3 different operating modes; sound active mode with sound sensitivity adjustment, show mode, or DMX control, used to create your own moving light shows or color combinations. The XS 400 can be used as a stand alone unit or in master-slave set up. The XS 400 is UC IR and Airstream IR compatible (Sold Separately) and is used to control various functions for the XS 600.

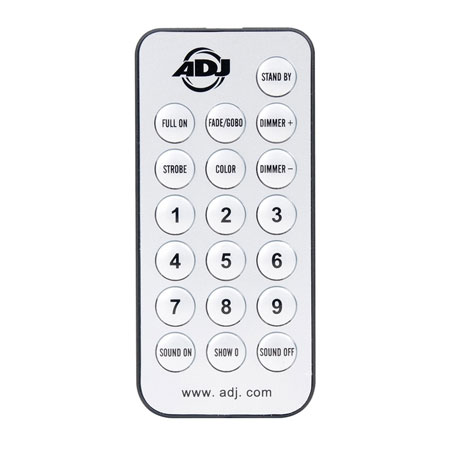

ADJ UC-IR Universal Remote Control for ADJ Lighting Fixtures

The UC-IR infrared remote has many different functions and gives you complete control of your fixtures.
Control the dimmer, Full ON, blackout, gobo, colors, shows, programs, speed, and sound active modes of your fixtures.

American DJ XS 400 Specifications

• Unique dual axis Moving Heads
• 360-degree continuous tilt rotation (spinning)
• 4 x 10W 4-in-1 RGBW LEDs
• Pixel control of each LED
• RGBW Color Mixing in DMX mode
• 3 Operational modes: DMX, Show Mode & Sound Active
• Stand Alone or Master-slave set up
• 2 DMX Channel modes: 16 Channels & 18 Channels
• 4-Button menu system LED Display making it easy to navigate
• 9 Built-in shows
• 5-degree Beam Angle

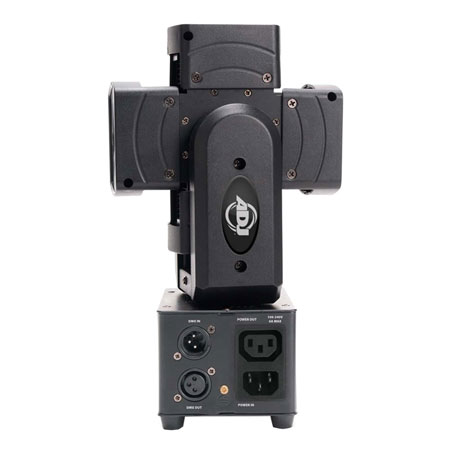

• 3-pin XLR DMX connectors
• I.E.C. In/Out Connections
• Lifetime of the LEDs (50,000 hr. rating)
• Power consumption: 40W total
• UC IR wireless controller & Airstream IR wireless App compatible (sold separately)
• IEC In & Out to Daisy chain Power (Connect up to 8 Fixtures)
• Multi-voltage operation: AC 100-240V 50/60Hz- I.E.C. In
• Dimensions (LxWxH): 4.75” x 6.75” x 11.25” / 123.6 x 169.9 x 284.5mm
• Weight: 2.5 lbs. / 6 kgs.

This Package Includes:

(4) American DJ XS 400 Tri Lense Moving Head
(1) ADJ UC-IR Universal Remote Control
(4) Universal O-Clamps with snug-fit grip
(3) 10FT Sure-fit DMX connecting cables
(2) Properly fitting & durable protective transport cases

Each XS 400 Box Includes:

(1) ADJ XS 400
(1) IEC power cord
(1) User manual

The ADJ UC-IR Box Includes:

(1) ADJ UC-IR Universal Remote Control for ADJ Lighting Fixtures
(1) QuickStart Guide
