(8) Chauvet DJ SlimPAR 64 RGBA & ADJ RGBW4C Package

About This Product

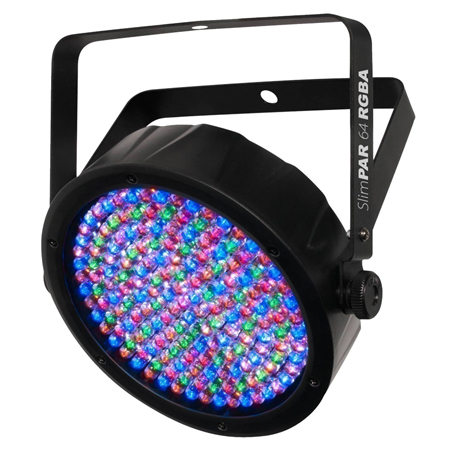

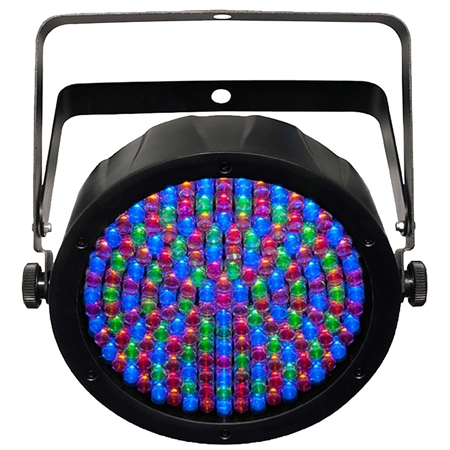

Chauvet DJ SlimPAR 64 RGBA

SlimPAR 64 RGBA is an LED PAR 64 with a slim, 2.5-inch thick casing that can fit almost anywhere. Boasting 180 red, green, blue and amber LEDs, the fixture offers static colors and color mixing with or without DMX. Use built-in automated and sound-activated programs and variable speed-pulse effect for use on the fly, or create your own looks using 4- or 8-channel DMX mode.

SlimPAR 64 RGBA Features:

• RGBA fixture joins the popular SlimPAR family.
• Generate a magnitude of colors and achieve natural color temperatures with punchy amber LEDs .
• Low-profile fixture fits most places other lights cannot .
• Compatible with the Satellite
• battery-operated system.
• Ideal for quiet installations due to silent operation and no moving parts.
• Easily create any color without DMX using the built-in digital display .
• Save time running cables and extension cords by power linking multiple units.
• Create coordinated light shows by linking other quad-color SlimPAR
• fixtures in master/slave mode.
• Easily transports in the optional CHS-25 VIP Gear Bag .
• Compact design easily fits inside sticks of TRUSST.

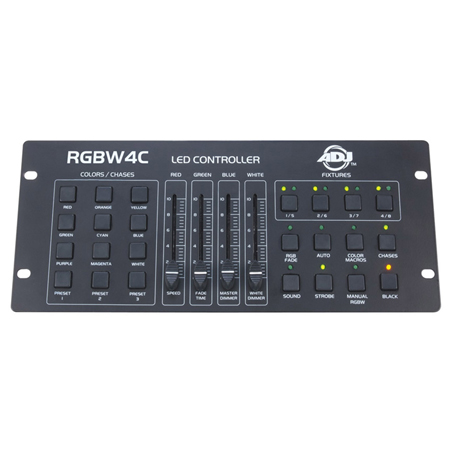

American DJ RGBW4C LED Controller

The RGBW4C is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber. Up to 8 LED fixtures or fixture groups can independently be controlled via four fixture buttons. All LED fixtures or fixture groups must be set to run in DMX mode and be addressed four channels apart for independent control. The units control panel includes 9 direct access "Static Color/Chase" buttons, which contain pre-programmed color presets and chase programs, 3 user programmable color preset buttons, 4 multi function faders that control RGBW intensities on the fly, as well as chase program "Speed", chase program "Fade Time" and "Master Dimmer". There is also an array of 8 buttons used to select the operation mode, including RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW and Blackout modes. The RGBW4C is one of the simplest and most versatile LED controllers available today. It's ideal for D.J.'s, nightclubs, lounges, bars and anyone that wants easy control of LED Par's, Bar's, Flood's or Panel's.

RGBW4C Features:

• Control up to 8 individual fixtures or fixture groups.
• 3 user programmable color preset, direct access buttons.
• 9 Color preset/Chase program direct access buttons.
• Color Macro playback mode.
• Manual RGBW intensity control mode.
• RGB and Auto modes.
• On the fly Speed & Fade control of all chase programs.
• Sound active mode via internal microphone.
• Adjustable microphone sensitivity.
• Variable strobe.
• Blackout button.

Technical Specification

Chauvet SlimPAR 64 RGBA Specifications

• DMX Channels: 4 or 8
• DMX Connectors: 3-pin
• Light Source: 180 (39 red, 39 green, 51 blue, 51 amber) 0.25W (20mA) LEDs 100,000hrs
• Beam Angle: 14°
• Field Angle: 23°
• Illuminance: 1,325 lux @ 2m
• Power Linking: 40 units @ 120V; 60 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 30W, 0.3A @ 120V 60Hz
• Power and Current: 33W, 0.2A @ 230V 50Hz
• Weight: 2.8lbs (1.3kg)
• Size: 10.8 x 10.8 x 2.6in (276 x 275 x 66mm)
• Approvals: CE, MET

American DJ RGBW4C Specifications

• DMX output connector: 3-pin XLR
• Power In: 12VDC 500mA UL approved power supply (Included)
• Power consumption: 3.6 Watts
• Size: 12.9" x 5.5" x 1.9" (327 x 140 x 48mm)
• Weight: 2.4lbs. (1.1kgs.)

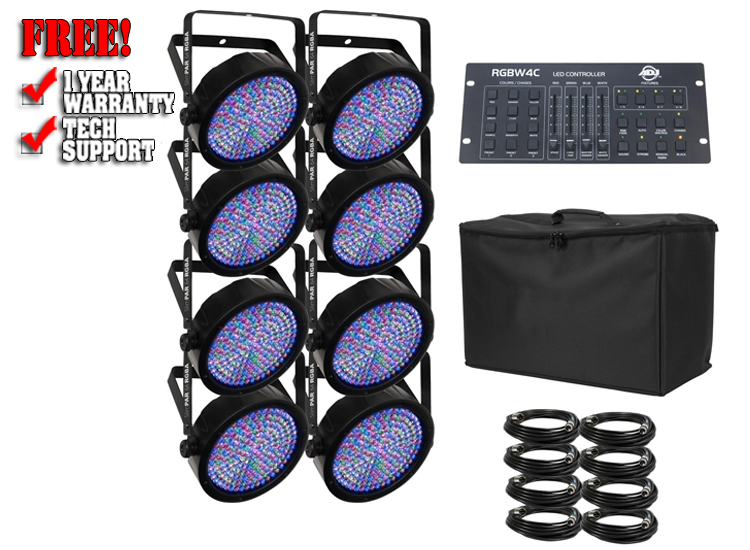

What's In The Box

This Package Includes:

• (8) Chauvet DJ SlimPAR 64 RGBA
• (1) American DJ RGBW4C LED Controller
• (1) 25FT Sure-Fit DMX Connecting Cable
• (7) 10FT Sure-Fit DMX Connecting Cables
• (1) Properly Fitting & Durable Protective Transport Case

Each Chauvet DJ SlimPAR 64 RGBA Box Includes:

• (1) SlimPAR 64 RGBA
• (1) Power Cord
• (1) Warranty Card
• (1) Quick Reference Guide

The American DJ RGBW4C Box Includes:

• (1) American DJ RGBW4C LED Controller
• (1) Power Cord
• (1) Instruction Manual
