Rane Twelve MKII & Pioneer DJ DJM-A9 Package

Rane Twelve MKII Motorized Battle-Ready DJ MIDI Controller

The RANE TWELVE MKII Motorized Battle-Ready DJ MIDI Controller is a powerful controller providing an uncompromisingly accurate, hands-on performance experience to digital DJ software, liberating DJs and turntablists from the pain of damaged tonearms or needles and eliminates unwanted audio feedback, bringing sub-bass back into their music. In addition to Serato DJ integration, the TWELVE MKII now adds TRAKTOR & Virtual DJ control, giving DJs a true vinyl-like experience to their chosen DJ platform. The MKII variant also adds USB control for track browse/selection and instant doubles, DVS Audio control, a new plunger style Start/Stop button, and an OLED Screen for BPM display and USB control status. Traditional performance familiarity meets the pinnacle in modern convenience, RANE TWELVE MKII Motorized Battle-Ready DJ MIDI Controller offers the ultimate in multi-platform legacy control.

True Vinyl-Like Performance

With no tonearm or damaged/skipping needles, the RANE TWELVE MKII gifts the Pro, Club, Scratch and Battle DJ with a zero-error, secure and solid performance environment underpinned with a black acrylic control disc and quick release adapter, customizable with any traditional vinyl record.

Precision Control

The TWELVE MKII's twin-torque, 12" motorised platter gives 3,600 ticks of resolution, per single revolution. This brings precision music file playback with previously unrealised digital performance accuracy-customizable even further with a DJ's own choice of slipmat/butter-rug.

Multi-Platform

The TWELVE MKII Motorized Battle-Ready DJ MIDI Controller provides USB MIDI and DVS control for Traktor, Virtual DJ and Serato DJs. Choose your platform and connect for the ultimate vinyl legacy experience in a digital world. Expand your control possibilities using USB MIDI, DVS Audio or a hybrid of both, all selected and controlled via the all-new OLED screen. Whatever your performance preference, TWELVE MKII guarantees to accommodate with ease.

Solid Steel Construction

The TWELVE MKII's all-metal body is built like a tank and has the precision control and no-latency response needed for the most demanding DJ performance. Simply put, the TWELVE MKII has the foundation feeling of a turntable, with all the creative advantages of the digital performance world.

Features

• DVS/USB MIDI Control for Serato DJ Pro, TRAKTOR and Virtual DJ
• OLED Screen, Control Selection and BPM display
• Navigation control: Scroll/Load, Back and Instant Doubles
• New plunger-style Start/Stop button
• Full 12" motorized platter to control playback
• Traditional, familiar turntable layout
• OLED screen display (BPM Display/Control Status)
• Dual Mode Strip: Track Search and 8 Hot Cue triggers
• 5.0 kfcm high-torque motor with Hi/Low torque adjust for more traditional setups
• 4 decks of control so you can use one, two or more
• Extreme precision-3600 ticks of platter resolution for seamless performance
• MIDI interface via USB that can be connected to the SEVENTY-TWO MKII or your computer
• RCA output for DVS audio signals
• 33-1/3 and 45 RPM platter speeds
• 8/16/50% pitch with precise dual resolution slider
• Top panel rotary and traditional Motor Off switch, allows traditional wind down effects

Specifications

Motor

• Drive: Quartz direct-drive
• Torque: High: 5.0kgf/cm (starting/instant); 3.4kgf/cm (stable), Low: 3.2kgf/cm (starting/instant); 1.4kgf/cm (stable)
• Starting Time: < 0.4 seconds
• Braking System: Electronic

Platter

• Material: Aluminum die-cast
• Diameter: 13.1"/332 mm
• Weight: 4.9 lb./2.2g

• Speeds: 33 1/3, 45 RPM
• Pitch Range: +8%, +16%, +50%

Connectors

• (1) USB Type-B port
• (1) Stereo RCA output
• (1) IEC power cable input

Power

• Connection: IEC
• Voltage: 100-240V, 50/60Hz
• Consumption: 60W

Dimensions

• (WXDXH): 14.5" x 16.2" x 5.3", 368 x 413 x 90 mm
• Weight: 20.5 lb. 9.3 kg

Pioneer DJ DJM-A9 4-channel professional DJ mixer (black)

A New Horizon

The 4-channel DJM-A9 raises the bar for club standard mixers - boasting huge upgrades compared to its predecessor, the DJM-900NXS2 - with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level. The DJM-A9 has also been improved as a musical instrument for more emotional and dynamic performances, while retaining the functions and layout that have become club standards.

KEY FEATURES

Stunning clear sound quality

The next-generation club sound of the DJM-A9 comes from extensive development and fine tuning of existing technology from previous units, plus brand-new components. The channel input section is equipped with an ESS Technology 32-bit high-quality A/D converter for crystal-clear, high-resolution sound, while the master and booth output sections employ 32-bit high-quality D/A converters from the same brand so you can experience sound from the booth monitors that's the same as the crowd hears on the dancefloor. Even the sound quality of the microphone input and headphone outputs has been improved with carefully selected new parts and design optimization.

Evolved playability

Increased spacing around the EQ knobs gives you the room to twist your fingers and high-grade, bright LEDs in the channel section make it easier than ever to get a visual grasp on sound levels. You can perform more dynamically than ever thanks to the frequency response of the isolators, which have been optimized to make the most of the latest music production traits. And, with higher quality, slicker channel faders than the DJM-900NXS2, plus the third-generation MAGVEL FADER crossfader, you can enjoy silk-smooth mixing and rapid, stable scratching.

Sound Color FX with world's first Center Lock knob

Turn on the brand-new Center Lock feature and, when you're using the popular Sound Color FX, each knob will stop turning when you reach the center position. This means you can twist the knob as quickly as you like, taking the effect right up to the maximum of the hi, or down to the minimum of the low parameter, without the risk of going too far and switching to the opposite parameter. When you turn Center Lock off, the Sound Color FX knobs work in the same way as those on the DJM-900NXS2.

Newly advanced Beat FX

A new color display helps you to quickly and accurately understand the status of the selected effect, and it features lighting that corresponds with the X-Pad's horizontal arrangement, enabling more intuitive control with a simple finger slide. You can use the X-Pad to change the Echo and Ping Pong effects to create a unique analog tape-style sound. And, within the 14 total Beat FX, there are 3 new ones (Mobius, Triplet Filter, and Triplet Roll) you can use to add extra variation to your performances.

Even better, the channel selector is now a dedicated button, enabling you to quickly apply effects to your chosen channel.

Enhanced mic section

The phantom powered input means you can connect a high-quality condenser mic directly to the DJM-A9, a feature never seen before on a DJ mixer. And there are 3 new microphone effects (Echo, Pitch, Megaphone) with a dedicated reverb effect so you can change the sound of your voice and hype up the crowd with your vocals.

It's quick and easy to turn the mic input on or off with the brand-new Push To Talk button when you want to grab the mic and address the audience. The audio from the mic can be excluded from the recording output if you want, so you can MC for the live crowd but record your mix without vocals.

Expanded connectivity

Connect 2 different PC/Mac systems at the same time thanks to the dual USB Type-B and USB Type-C ports (there are 2 of each) for seamless transitions between DJs and easy back-to-back sets. And, thanks to a Bluetooth® input which you can route to any channel on the DJM-A9, you can wirelessly drop audio tracks into your sets from other devices such as smartphones and use all the mixer's features and effects to change the sound. The Multi I/O section has an independent channel selector so external effects can be used separately from Beat FX, giving the DJM-A9 true send capabilities. This means you can route the effected sound from an external unit such as an RMX-1000 or a delay pedal to a separate channel instead of the channel it came from.

Dual independent headphone outputs and booth EQ

Plug in your headphones at the same time as another DJ and enjoy the freedom to monitor the channels you want to. With separate cue buttons, volume knobs, and mix balance knobs for each set of headphones, it's easy for 2 DJs to cue up tracks during changeovers and back-to-back sets. Plus, with the 2-band booth EQ, you can change the high and low frequencies to complement the master output and match the mood in the booth to the feeling on the dancefloor.

Support for the brand-new Stagehand app and built-in Sound Check function

The DJM-A9 is compatible with Stagehand, the industry-first PRO DJ LINK remote management app for front of house teams. Using an iPad connected wirelessly to the mixer via a LAN router (available separately), an engineer can keep an eye on things such as level meters and the DJ's use of the mixer's controls, making it easier to maximize the sound system's settings and run a smoother, more impactful show without needing to interrupt the DJ's performance or even enter the booth. (Coming Soon)

OTHER FEATURES

rekordbox

Make full use of the low-latency DVS feature in rekordbox for intuitive, smooth scratching. Find out more.

Serato DVS-ready

Use Serato DVS to control and scratch with CDJs or turntables.
*You'll need to buy a license or subscription.

DJM-REC

Easily record your performances with DJM-REC for iOS/Android. This handy app enables you to share your mixes via platforms such as Mixcloud and stream in real time via services including Twitch.

Lockable power cord

Relax in the knowledge that the lockable power cord will always stay firmly in place, even if you knock it while connecting or disconnecting other equipment from the mixer.

*In some regions, a non-lockable power cord is supplied.

Video and Lighting app support

With support for TC Supply's ShowKontrol and the free application PRO DJ LINK Bridge, DJs, event producers, lighting designers, LJs, video creators, and VJs can produce sound and visual coordination with confidence, and create shows that captivate audiences.

Firmware Update Manager

You'll be automatically notified when firmware updates become available. You can download the Firmware Update Manager here.

Specification

• Dimensions (W x D x H): 407.4 x 458.3 x 107.9 mm
  16.4" x 18.4" x 4.25"
• A/D converter: 32 bit
• Sound Color FX: Center Lock Knob
• Microphone effects: Echo
  Pitch
  Megafon
  Reverb
• Condenser microphone: Yes
• USB: USB Type-A x 1
  USB Type-B / USB Type-C x 2
• Bluetooth input
• DJ software: rekordbox
  Serato DJ Pro
• VJ / LJ / FOH support: ShowKontrol
  PRO DJ LINK Bridge
  Stagehand

Main Features

• MIDI Control: Full assignable MIDI controls
• PRO DJ LINK: Yes
• Booth EQ: Yes
• P-LOCK Fader Caps: Yes
• Auto Standby: Yes
• DVS Control: rekordbox
  Serato DJ Pro (Need to buy a license or subscription.)
• Software System Requirements: Visit rekordbox.com for its specifications.
  Visit serato.com for its specifications.

Bluetooth Audio Input

• Wireless system : Bluetooth Ver.5.0
• Maximum transmission distance : Approximately 10 m in unobstructed circumstances (Transmission distances are a guideline.)
• Frequency band used : 2.4 GHz
• Modulation method : FH-SS (Frequency Hopping Spread Spectrum)
• Compatible Codecs : SBC, AAC
• Wireless LAN: Supported standards : IEEE 802.11 a/b/g/n/ac
  Frequency band used : 2.4 GHz / 5 GHz

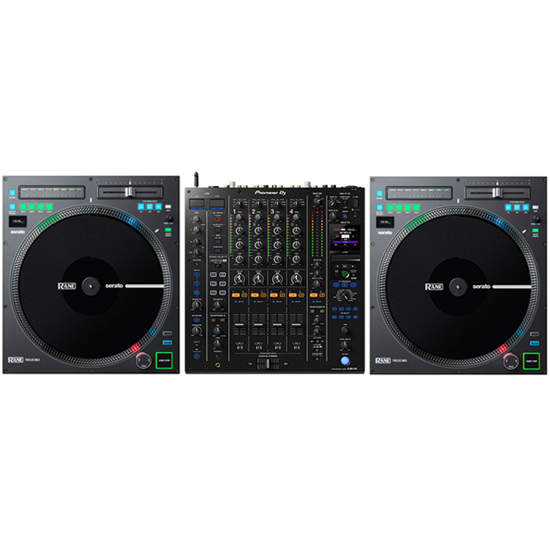

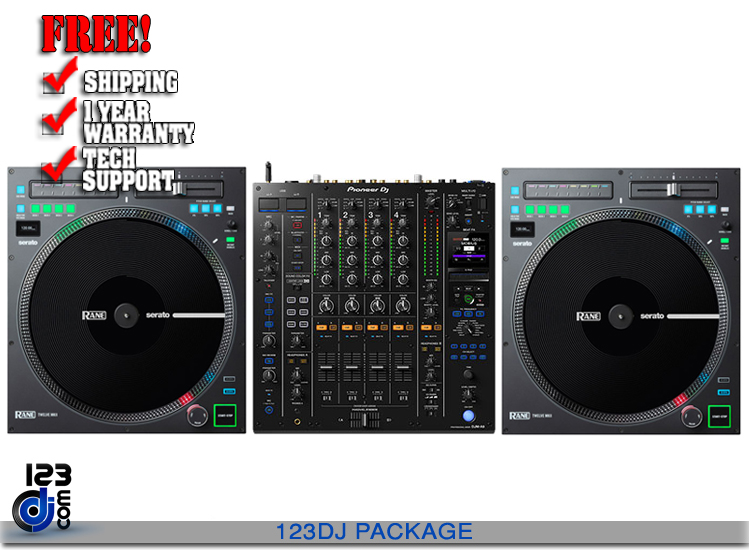

This Package Includes:

• (2) Rane Twelve MKII
• (1) Pioneer DJ DJM-A9
