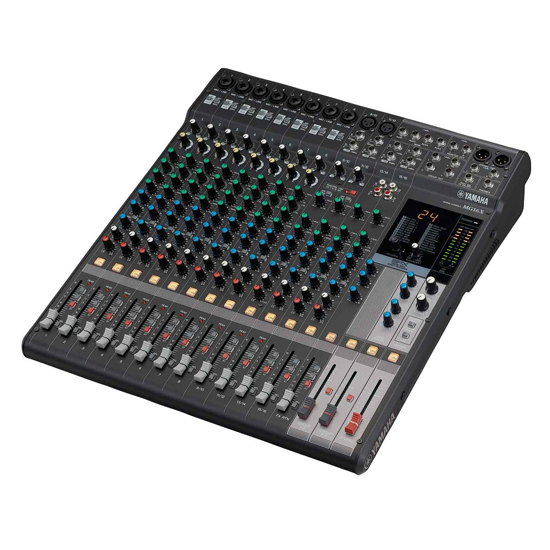

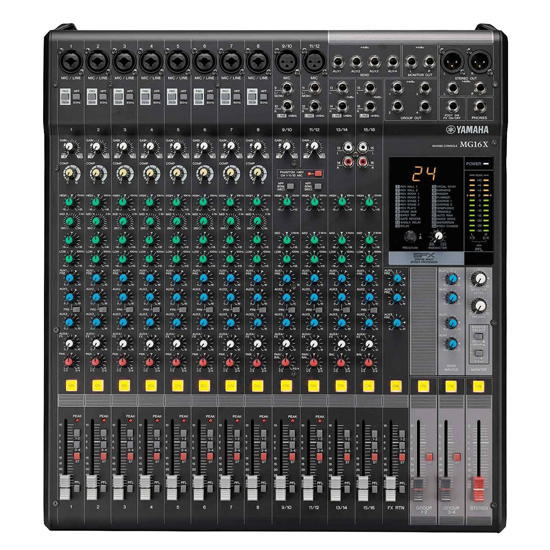

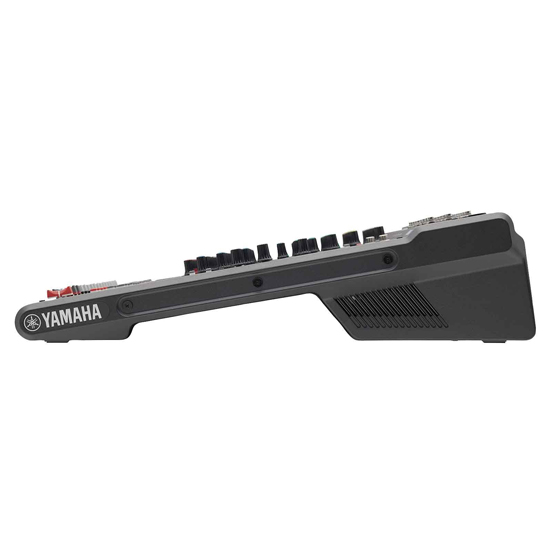

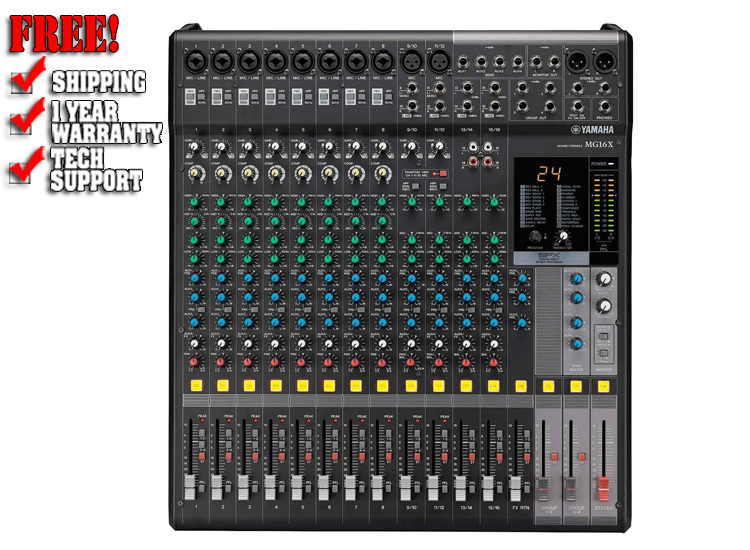

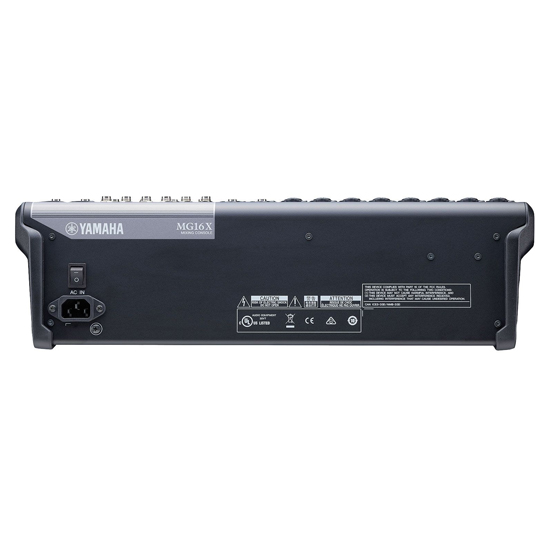

Yamaha MG16X CV 16-Input 4 Bus Mixer with Effects 12 RU

Yamaha MG16X CV 16-Input 4 Bus Mixer with Effects 12 RU can accommodate up to 16 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and three more are available. Eight channels of single-knob compression are available. The MG16X can accept XLR, 1/4" Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG16X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG16X CV can be rack mounted (12RU) with the included rack ears.

Features:

• Rugged, Powder-coated steel chassis for superior durability.
• Discrete Class-A microphone preamps.
• Built-in SPX digital effects with 24 programs.
• Switchable +48V Phantom power.
• Color coded controls offer easy operation.

Specifications:

• Frequency Response Input to STEREO OUT : +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Total harmonic distortion (THD+N) Input to STEREO OUT : 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min
• Hum & Noise (20 Hz to 20 kHz) : Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 O, GAIN knob: Max) Residual Input Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk (1kHz) : -78dB
• Input Channels
  • Mono [MIC/LINE]: 8
  • Mono/Stereo [MIC/LINE]: 2
  • Stereo [LINE]: 2
• Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 4
  • GROUP OUT: 4
• Bus
  • STEREO: 1
  • GROUP: 4
  • AUX SEND: 4 (incl. FX)
• Input Channel Function
  • Pad (Mono): 26dB
  • HPF (Mono, Mono/Stereo): 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
  • COMP (Mono): "1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec"
  • High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  • EQ Mid: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
  • Low: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  • Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter : 2x12 -segment LED meter [PEAK, +10, +6,+3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
• Internal Digital Effect SPX Algorithim : 24 programs
• Phantom Power Voltage : +48V
• Power Requirements : AC 100 - 240 V, 50/60 Hz
• Power Consumption : 30W
• Dimensions (W x H x D) 444 mm x 130 mm x 500 mm : (17.5" x 5.1" x 19.7")
• Net Weight : 6.8 kg (15.0 lbs.)
