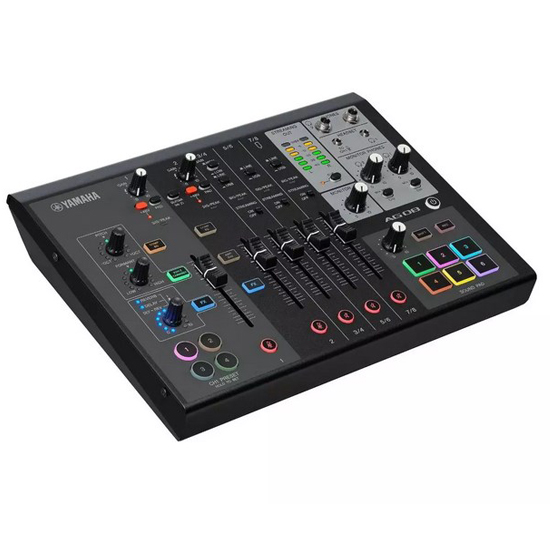

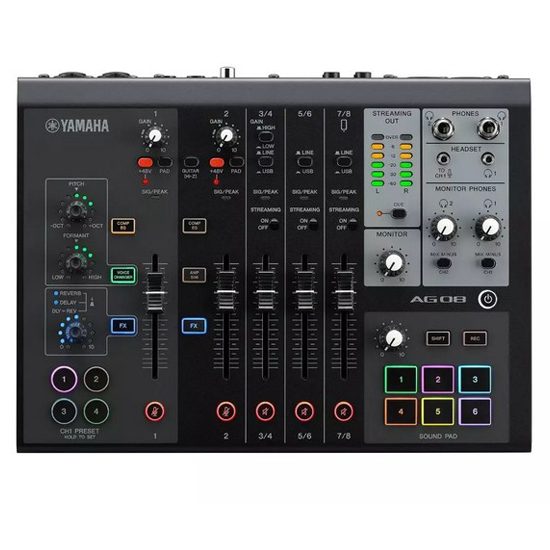

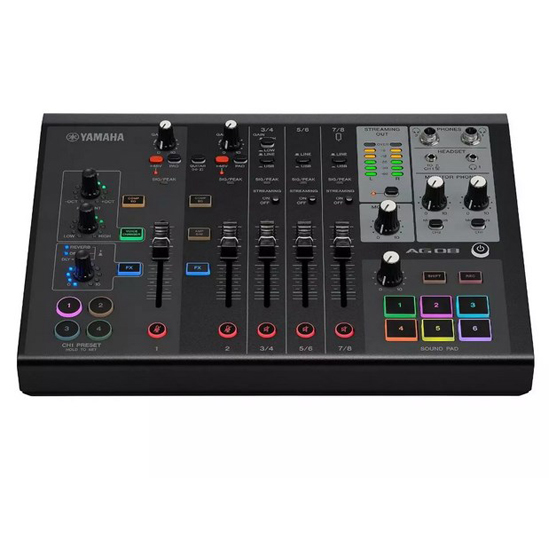

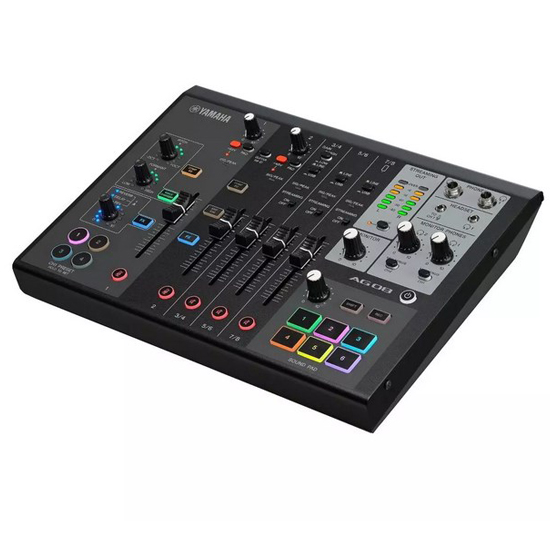

Yamaha AG08 Live Streaming Mixer

An 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler.

Features:

• Two mic/line inputs and two headphone outputs can be used simultaneously
• +48 V phantom power on CH1 and 2 for condenser mics or Dl boxes
• Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
• Three stereo inputs with assignable faders, switchable input source for LINE/USB
• 4-pole mini input/output (TRRS) on CH7/8
• MONITOR outputs (XLR + TRS) and MIX outputs (TRS)
• Six sound pads trigger audio samples in real time to add color to live streams
• Internal circuitry delivers highest sound-quality in the AG series
• 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)
• Flexible inputs and outputs ideal for live streaming
• DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
• AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management
• 60 mm faders and Mute buttons for each input
• Foot switch functionality for more versatile system control
• Windows / Mac support via USB-C connection
• OS connectivity via Apple Camera Adapter (requires external USB power supply)
• Android supported by 4-pole mini input/output (TRRS)
• USB-C power input (5 V DC, 1.5 A)
• Cubase Al, WaveLab Cast, Cubasis LE are available

Specifications:

• Input Channels
  • Mono[MIC/LINE] 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE] : 3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
  • Smartphone 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
  • AUX : 1 - Stereo mini
  • Smartphone 1 - 4-pole mini input/output (TRRS)
  • Smartphone 1 - 4-pole mini input/output (TRRS)
• Output Channels
  • PHONES 2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
  • Smartphone 1 - 4-pole mini input/output (TRRS)

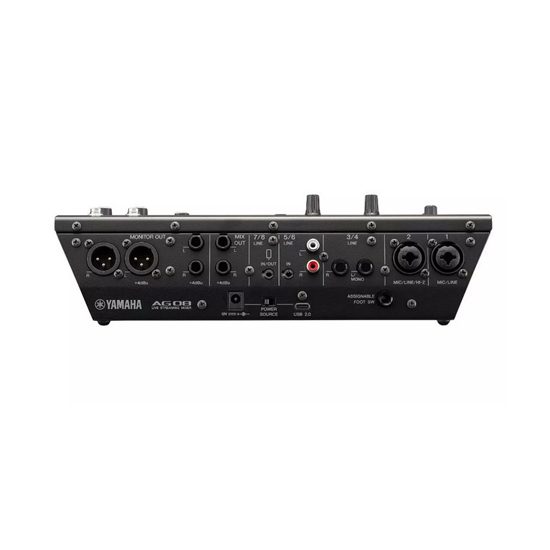

  • MONITOR OUT 2 - LR Stereo: XLR, 1/4 TRS Phone
  • STEREO OUT 1 - MIX: LR stereo TRS Phone
  • USB 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.
• Bus : 4 Stereo
• Functions : MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
• On-board processors
  • DSP : Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
• USB
  • USB Audio : 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input : 1 - Type-C, 5 V DC, 1.5 A
• Power requirements : DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
• Power consumption : Max. 7.5 W
• Dimensions
  • W : 290 mm (11.5")
  • H : 88 mm (3.5")
  • D : 222 mm (8.8")
• Net weight : 2.2 kg (4.9 lbs)
• Others : Operating Temperature: 0 to + 40°C

What's in the Box:

• Yamaha AG08
• USB2.0 Cable (1.5 m)
• AC adapter PA-150B
• Quick Guide
• Safety Guide
• Wavelab Cast Download Information
• Cubase AI Download Information
