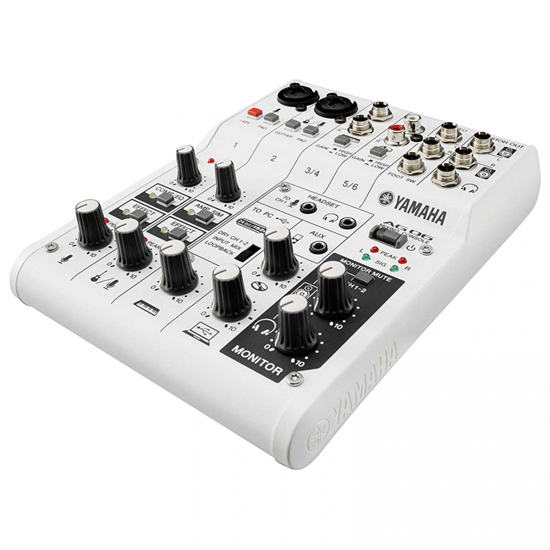

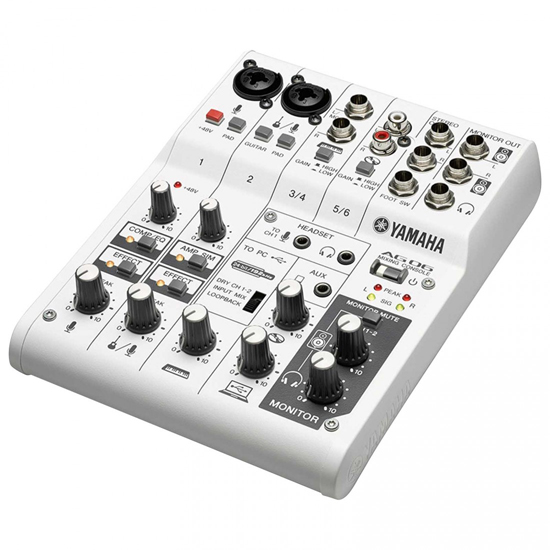

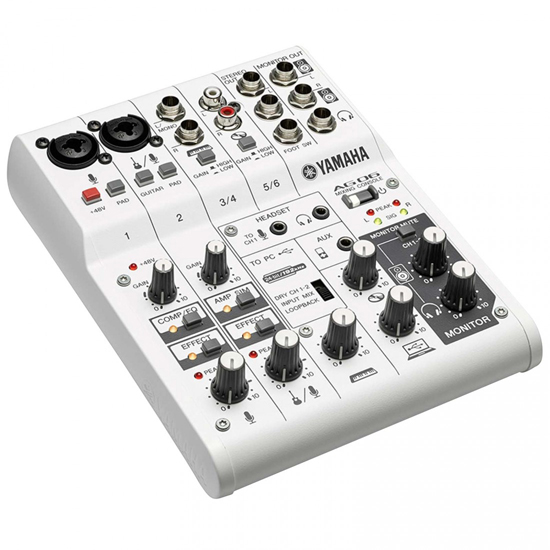

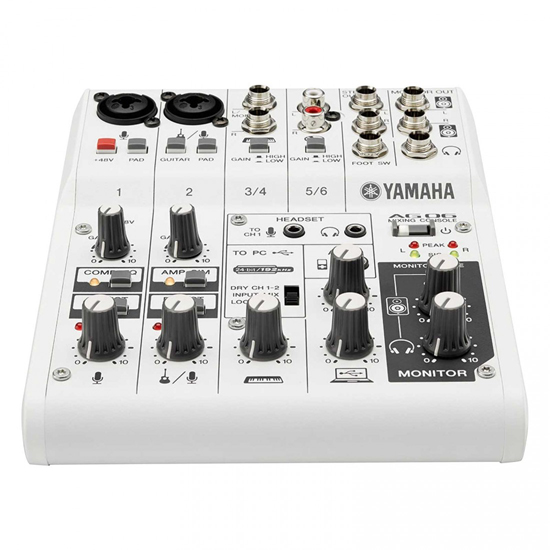

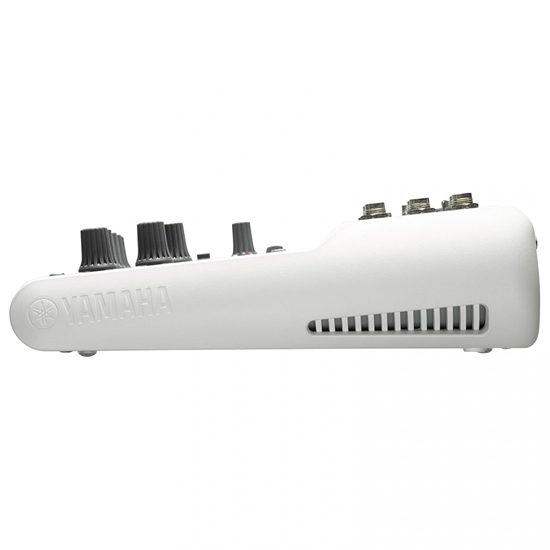

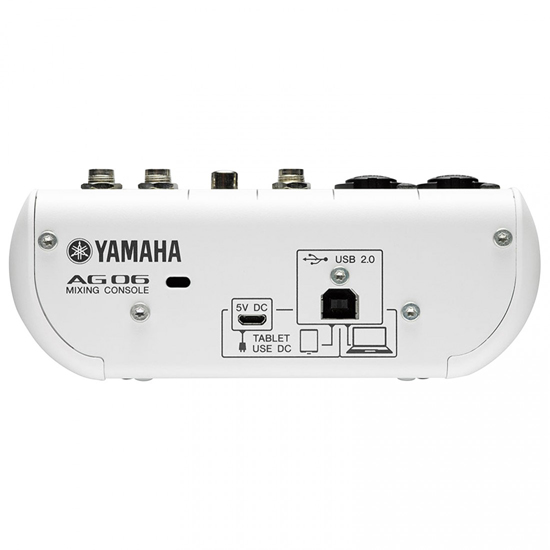

Yamaha AG06 6-channel Mixer and USB Audio Interface

Easy internet streaming with the loopback function

If you want to live stream multiple inputs and computer tracks simultaneously, the Yamaha AG06 is your solution. The loopback function combines all inputs and computer playback tracks, for easy recording to your internet streaming software.

Class compliant for iPad compatibility

The Yamaha AG06 is class compliant and ready to plug right into your iPad for high quality recording and playback. The AG06 is compatible with 2nd generation and later iPads.

Yamaha AG06 USB Mixer Features:

• USB mixer and audio interface for webcasting, gaming, and music production
• Built-in DSP for EQ, compression, filtering, and reverb
• Loopback mode combines all inputs and playback channels for easy internet streaming
• Outstanding audio quality, with D-PRE mic preamps and 24-bit/192kHz resolution
• Ready for your microphone, guitar, keyboard, and even your gaming headset
• Includes Cubase Al downloadable version

Specifications

• Type: Analog
• Channels: 6
• Computer Connectivity: USB
• Inputs - Mic Preamps: 2 x XLR
• Phantom Power: Channel 1
• Inputs - Line: 2 x XLR/TRS (Combo), 2 x 1/4"
• Inputs - Other: 1 x Stereo (Aux), 1 x 1/8" (Headset), 1 x 1/8" (Aux), 1 x 1/4" (Footswitch)
• Outputs - Main: 2 x 1/4"
• Headphones: 1 x 1/4", 1 x 1/8" (Headset)
• Effects: Yes
• Height: 2.5"
• Width: 6.1"
• Depth: 8"
• Weight: 2.2 lbs.
• Manufacturer Part Number: AG06
