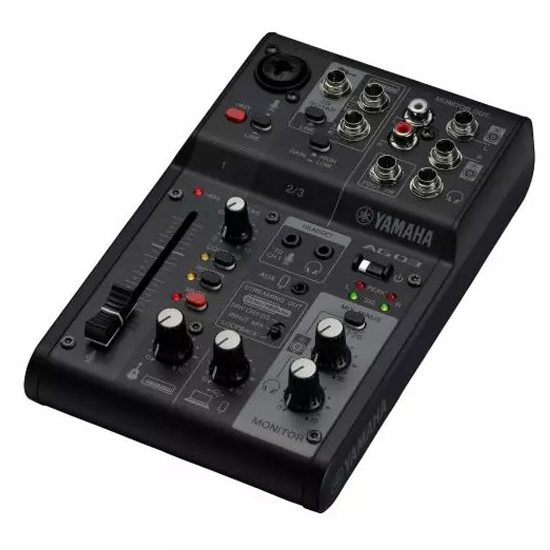

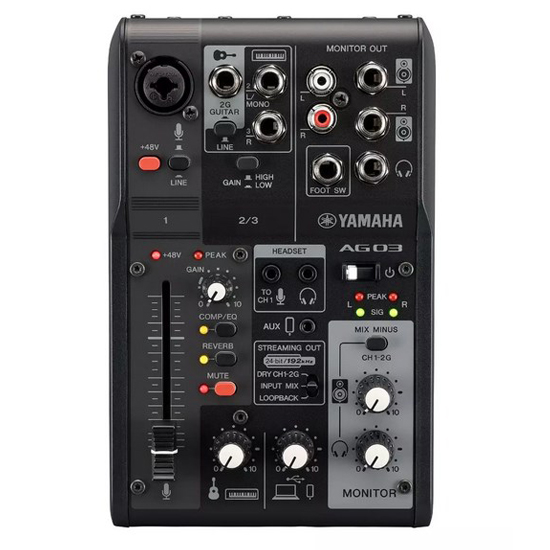

Yamaha AG03MK2 3-Channel Live Streaming Loopback Audio USB Mixer

Features:

• 60 mm faders for mic CH1
• +48 V phantom power on CH1 input for condenser mics or Dl boxes
• Hi-Z input for guitars on CH2
• High resolution (24-bit, 192 kHz) 2-track audio recording and playback
• 4-pole mini input/output (TRRS) to support a wider range of streaming applications
• Flexible inputs and LOOPBACK function ideal for live streaming or recording
• Mute button for convenient live streaming
• Easy control and pro sound with Amp Simulator and 1-TOUCH COMP/EQ, REVERB
• AG Controller (Windows/Mac/iOS) for precise parameter control
• Windows/Mac support by USB-C connection
• iOS connectivity via Apple Camera Adapter (requires external USB power supply)
• Android supported by 4-pole mini input/output (TRRS)
• USB-C power input (5 V DC, 900 mA)
• Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available

Specifications:

• Input Channels
  • Mono[MIC/LINE] : 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE] : 1 - Stereo Line / Guitar Input (Mono)
  • Smartphone : 1 - 4-pole mini input/output (TRRS)
  • USB : 1
• Output Channels
  • PHONES : 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
  • Smartphone : 1 - 4-pole mini input/output (TRRS)
  • MONITOR OUT : 2 - L/R Stereo: Phone, RCA
  • USB : 1
• Bus : 1 Stereo
• Functions : MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-board processors
  • DSP : COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
• USB
  • USB Audio : 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C

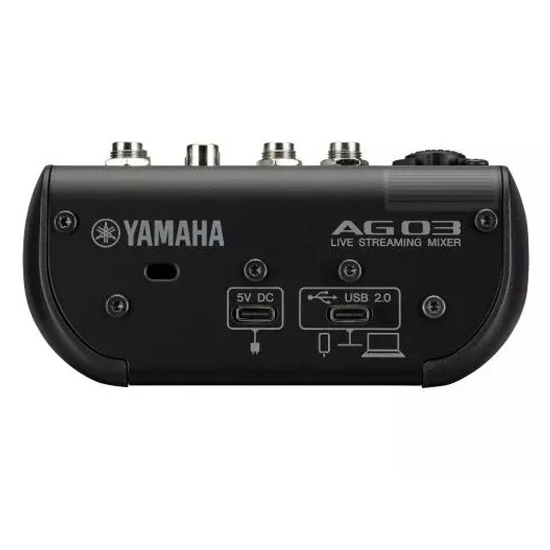

  • USB DC Power input : 1 - Type-C, 5 V DC, 900 mA
• Power requirements : 5 V DC, 900 mA
• Power consumption : Max. 4.5 W
• Dimensions
  • W : 126 mm (5.0")
  • H : 63 mm (2.5")
  • D : 201 mm (7.9")
• Net weight : 0.8 kg (1.8 lbs)
• Others : Operating Temperature: 0 to + 40°C

What's in the Box:

• Yamaha AG03MK2
• USB 2.0 Cable (1.5 m)
• Quick Guide
• Safety Guide
• Wavelab Cast Download Information
• Cubase AI Download Information
