Yamaha AG03MK2 LSPK USB Loopback Live Streaming Kit-White

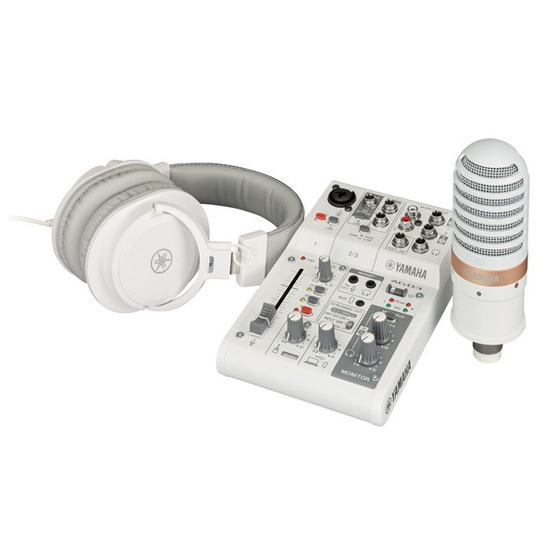

The AG03MK2 LSPK (Live Streaming Package) is a full-streaming setup that includes, and centers around, an AG03MK2 3-channel mixer the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.

Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.

Features:

• New design with two models in black and white
• AG03MK2: 3-channel Live Streaming mixer with USB audio interface
• YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
• YH-MT1: Studio-quality headphones
• XLR microphone cable (3 m, White)

Specifications:

• Input Channels
  • Mono[MIC/LINE] : 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE] : 1 - Stereo Line / Guitar Input (Mono)
  • Smartphone 1 - 4-pole mini input/output (TRRS)
  • USB : 1
• Output Channels
  • PHONES : 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
  • Smartphone : 1 - 4-pole mini input/output (TRRS)
  • MONITOR OUT : 2 - L/R Stereo: Phone, RCA
  • USB : 1
• Bus : 1 Stereo
• Functions : MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-board processors
  • DSP : COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
• USB
  • USB Audio : 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input : 1 - Type-C, 5 V DC, 900 mA
• Power requirements : 5 V DC, 900 mA
• Power consumption : Max. 4.5 W
• Dimensions
  • W : 126 mm (5.0")
  • H : 63 mm (2.5")
  • D : 201 mm (7.9")
• Net weight : 0.8 kg (1.8 lbs)
• Others : Operating Temperature: 0 to + 40°C

Microphone YCM01 Specifications:

• Microphone Unit : Back electret condenser type
• Polar Pattern : Cardioid
• Address Type : Side
• Frequency Response : 30 Hz - 20 kHz
• Max Input SPL : 130 dB (THD ? 1.0 % at 1 kHz)
• Sensitivity : -37 dB ? 3 dB (0 dB=1V/Pa, at 1kHz)
• Connector : XLR
• Dimensions (Microphone Only) : ?55 x 166 mm (?2.2" x 6.5")
• Weight (Microphone Only) : 0.4 kg (0.9 lbs)

What's in the Box:

• Yamaha AG03MK2 LSPK
• USB2.0 Cable (1.5 m)
• Quick Guide
• Safety Guide
• Wavelab Cast Download Information
• Cubase AI Download Information

• Yamaha YCM01
• Microphone pouch
• Owner's manual
• Technical specifications
