Yamaha EMX512SC

Overview

• Dual 500W amps
• Power mode switch allows amps to function in stereo, or as separate mono channels for mains and monitors
• 16 SPX digital effects including reverb, echo, chorus, flanger, phaser, and distortion
• FCL (Feedback Channel Locator) system
• 7-band graphic EQs for main and monitor power channels: 125Hz, 250 Hz, 500 Hz, 1kHz, 2kHz, 4kHz, 8 kHz, +12/-12 dB
• 3-band EQ per input channel
• 12 input channels: 4 for monaural microphone (with phantom power and one-knob compression) or line input, 4 pairs that can function either as monaural mic inputs or stereo line inputs
• Single knob compression on first 4 channels
• YSP (Yamaha Speaker Processing)

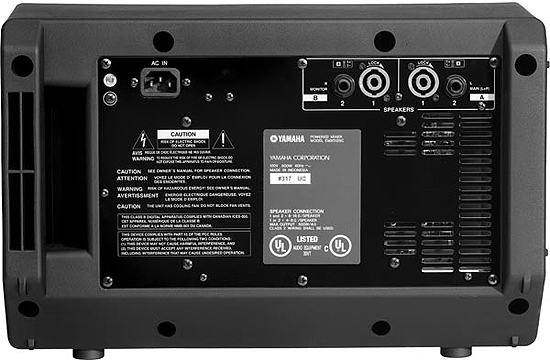

• Speakon and 1/4" phone jack speaker output connectors
• Durable, lightweight design
• 17-3/8"W x 11-1/4"H x 10-3/4"D
• 22lb.

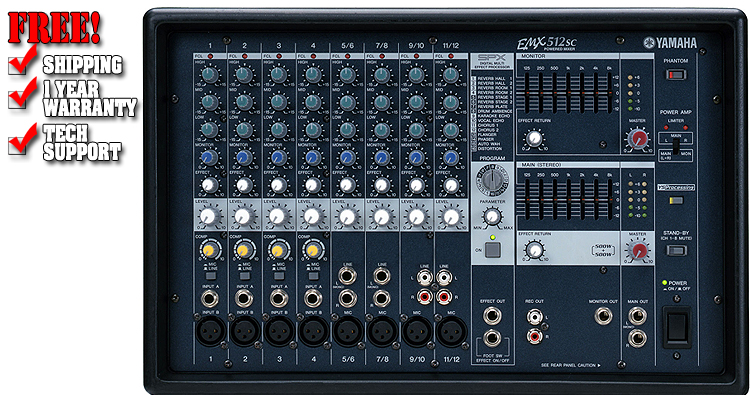

Yamaha EMX512SC Dual 500 Watt 12 Input 8 Channel Powered Mixer
Yamaha EMX-series Powered Mixers offer a range of features that let you mix, process, and deliver your sound with maximum quality and creative control ... and, of course, that unrivalled Yamaha sound. They're built at the same standards of sonic performance and rugged reliability that makes Yamaha the first choice for live sound applications from schools to stadiums around the globe.

One-knob Compression on Mono Channels
All four monaural mic/line channels on the EMX512SC feature built-in compressors that can help to bring vocals to the front of the mix, give your guitars extra smoothness and presence, deliver more authoritative bass sound, and generally refine your mixes in a multitude of ways. These one-knob compressors are simple to use, too. There's no need to juggle multiple attack, threshold, makeup gain, and other controls - just set the COMP control for the amount of compression you need.

SPX Digital Effects
The EMX512SC features a selection of 16 top-quality Yamaha SPX effects - including reverb, echo, chorus, flanger, phaser, and even distortion - that can add the final touch to your live presentation. Yamaha SPX digital effects are widely recognized as being some of the finest available, and the effects provided in the EMX mixers live up to that reputation.

Built-in Graphic EQ
Graphic equalizers are provided for both the main and monitor channels, so you can effectively control feedback or tailor the sound to match the room and program material.

Stand-by Mode
When you're done with a set simply engage the stand-by mode to mute all mono channels while leaving the 2-track inputs active for background music playback while you're taking your break.

Feedback Channel Locating (FCL) System
FCL System indicator LEDs at the top of each channel light if the corresponding channel goes into feedback, so you won't have to fumble around searching for the channel that needs adjustment.

12 Inputs
All three mixers in this series offer a total of 12 input channels - four for monaural microphone (incl. Phantom Power) or line input, plus four pairs that can function either as monaural microphone inputs or stereo line inputs - providing you with a versatile mix of input capabilities for a wide range of applications. If you need only microphone inputs you can use up to eight mic channels. Or if, for example, you want to play recorded background music during breaks (that's one stereo channel), and you have a keyboard player with a stereo-output keyboard (that's one more stereo channel), you still have six mic/line inputs. If you use all four stereo pairs to handle stereo line sources you have four channels available for mono mic or line input. This is a very versatile system that can adapt to your needs.

High Power For Main and Monitor Speakers
These powered mixers certainly don't skimp on power. EMX512SC has a solid 500 watts per channel. All models also feature a power mode switch that lets you use the two power channels as a stereo amplifier, or you can use one of the channels for the main speaker(s) and the other to drive monitors with a separate monitor mix set up via the channel MONITOR controls.

Yamaha Speaker Processing
Yamaha Club-series speakers are fine performers in their own right, but with Yamaha Speaker Processing you get extra-smooth highs and enhanced low-frequency output.

Durable, Lightweight Design
The EMX powered mixers offer the ideal combination of outstanding sound performance and easy handling. They're lightweight – only 10 kilograms (22lbs.) – and feature conveniently located handles for maximum carrying comfort. They're also built tough to withstand the rigors of use on the road.
