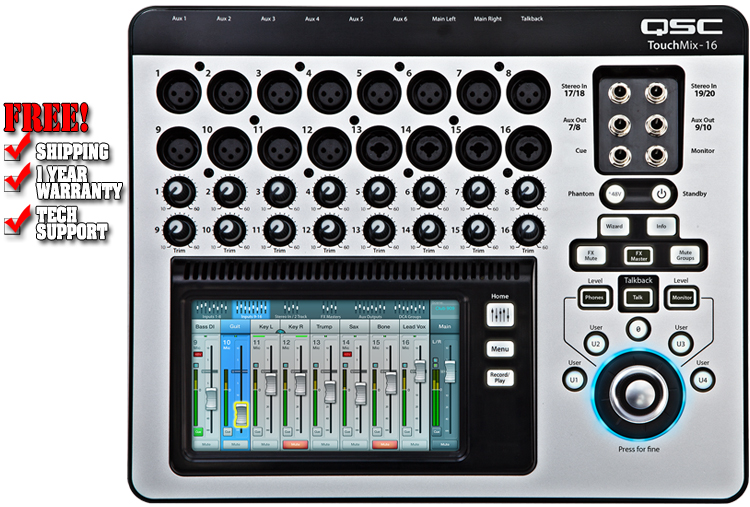

QSC TouchMix 16

Description

QSC TouchMix compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large "concert" mixing console in a compact, affordable and easy to use form. TouchMix-8 and TouchMix-16 mixers have the functionality to satisfy demanding professionals combined with a range of features and functions that help the less experienced user achieve quality results.

The QSC TouchMix Series represents a breakthrough in innovation and digital mixer design - the result of a remarkable collaboration between QSC and industry icons Greg Mackie and Peter Watts (M&W Pro Audio Ltd.) TouchMix not only resets the bar for performance and value, but also redefines the user experience for both professionals and novices alike.

Professional Results Made Easy

• Simple Mode makes getting great results easy and fast (similar to the "Auto" function on a DSLR camera)
• Advanced Mode gives pro users total control over all mixer parameters
• Wizards and preset libraries created specifically for live sound reinforcement assist the user with channel setup, effects selection and more
• Built-in color touchscreen combined with hardware controls for fast and intuitive operation

"Big Mixer" Features & Specifications

• 4-band full parametric EQ and variable high-pass filter on all input channels.
• Gate and compressor on all input channels
• Four premium stereo DSP's with a full selection of professional digital effects
• 1/3 octave graphic EQ, notch filters, limiters and delay on main and aux. outputs, DCA's and mute groups High Quality microphone preamps Channel-selectable phantom power
• Multiple monitor mixes including ability to drive in-ears directly
• Multitrack direct to disk recording/playback via external USB hard drive (not included.) No computer required. TouchMix delivers all the processing power and features that a professional live sound engineer could want.

  Compact and Complete
• Approximately the size and weight of a small laptop computer
• Operation via internal color touch-screen and rotary dial, mobile device or both simultaneously
• USB Wi-Fi adapter included. No additional network hardware required for remote control
• Includes padded carrying case for protection and easy transport


• 20 total inputs: 16 mic, (four with XLR/TRS combo connector) and two stereo line (TRS)
• Dedicated talkback mic input
• Stereo Main L/R outputs (XLR)
• Ample monitor outputs (eight total) with 6 mono auxiliary mixes (XLR) and 2 stereo auxiliary mixes.
  The 2 stereo aux outputs can drive wired in-ear monitors (IEM) directly.
  Mono auxiliaries may be linked for stereo use.
• Superb sound quality
  Class-A microphone pre-amps
  32-bit floating point processing
  24-bit AD & DA convertors
• Input channels are fully-featured:
  Four-band full parametric EQ
  Variable high-cut and low-cut filters
  Gate
  Compressor (with de-esser)
• Main and auxiliary outputs feature:
  1/3-octave graphic EQ (four-band parametric EQ on stereo auxiliaries)
  Limiter
  Delay
  Notch filters
• Four professional quality stereo DSP effects. Choose from:
  Two types of reverb
  Mono delay
  Stereo delay
  Chorus
  Pitch-change
• A pitch correct processor is assignable to any input channel.
• Eight DCA and eight mute groups.
• Color, capacitive touch screen graphical user interface combined with hardware controls for fast and intuitive operation.
• Great results and easy to use
  Input channel preset library features over 100 presets developed by experienced concert engineers specifically for live sound applications.
  Wizards assist with input gain adjustment and effects selection and routing.
  On board Info system gives you instant access to the user manual.
• Save your own channel presets and complete mixer scenes to internal memory or USB device.
• Capturing live performance to multi-track has never been easier. Record 22 tracks (all inputs plus a stereo mix) directly to USB hard-drive. Mix down on TouchMix or import into your favorite DAW.
• Remote control via iPad®.
• USB Wi-Fi interface and carrying case are included.
