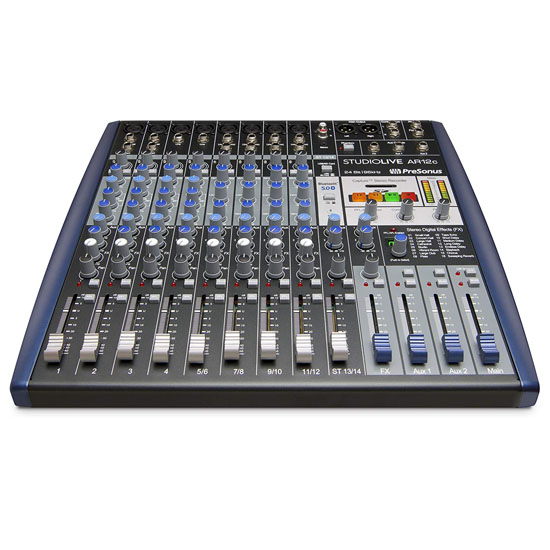

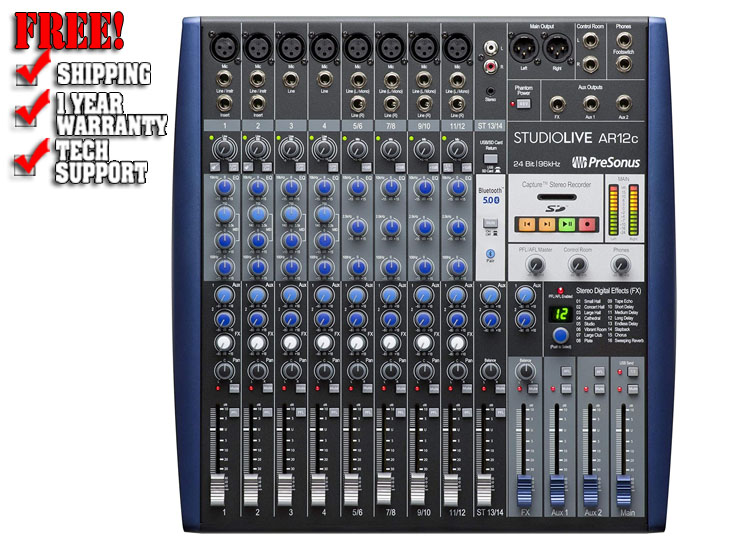

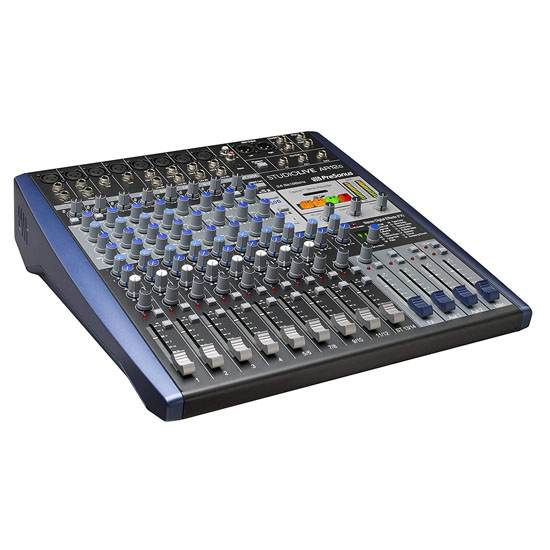

PreSonus StudioLive AR12c 14-Channel USB-C Hybrid Digital/Analog Performance Mixer

Description

Building upon the success of the original Studiolive AR12 USB, the PreSonus StudioLive AR12c is a 14-channel hybrid performance and recording mixer well suited for a variety of applications including mixing and recording live shows, studio productions, band rehearsals, podcasts, and more. Updates to the AR12c include a USB Type-C connection, Bluetooth 5.0, and a refresh to the design and layout. The mixer is packed with analog connections and digital tools that are powerful, yet easy to learn and use. The mixer features XMAX Class-A preamps and 3-band EQs.

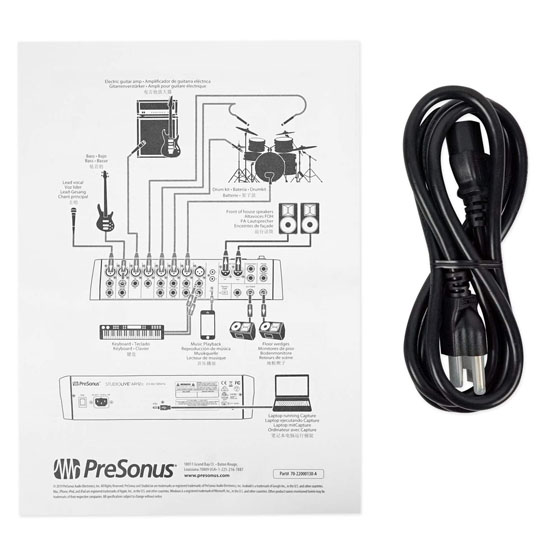

The StudioLive AR12c offers recording with or without a computer. Multitrack record and fly in backing tracks with its 24-bit / 96 kHz, USB 2.0 Type-C audio interface or record and playback a stereo mix with the integrated SD digital recorder. Additionally, the mixer features a Super Channel, which allows you to connect four stereo analog and digital sources at once, enabling the mixer to be used with high-tech devices including smartphones and tablets for wireless Bluetooth streaming. The StudioLive AR12c ships with a power cord, USB cable, Studio One 3 Artist production software, and Capture recording software.

Features:

Channels and Buses

• 14-channel mixer
• 4 mono and 4 stereo channels, each with:

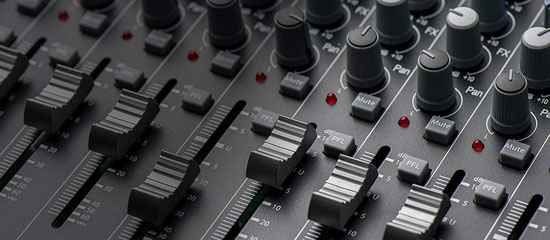

  • 60 mm level fader
  • Pan
  • Mute
  • PFL solo
• 1 stereo Super Channel (Ch. 13/14)
• 2 aux buses with PFL solo
• 1 stereo effects bus
• 1 stereo effects return with:
  • 60mm master fader
  • Dedicated monitor sends
  • Effects bypass footswitch jack

Inputs and Outputs

• 2 instrument inputs
• 12 balanced line inputs
• 2 unbalanced inserts
• 8 balanced mic inputs with:
  • Class-A microphone preamp
  • Global 48V phantom power
• Stereo Super Channel with:
  • Stereo RCA inputs
  • 1/8-inch stereo input
  • Switchable SD/USB stereo playback
  • Bluetooth 4.1 input
• L/R XLR main outputs
• 2 balanced TRS Aux outputs
• 1 balanced TRS effects output
• L/R Control Room outputs with level control
• Headphone output with level control

Signal Processing

• High-pass filter on channels 1-4
• +10 dB switch for channels 5/6-11/12
• Mono channels: 3-band semi-parametric EQ with sweepable mid band
• Stereo channels: 3-band semi-parametric EQ
• Stereo effects processor with 16 presets

Recording Options

• 14x4 24-bit / 96 kHz, USB 2.0 Type-C audio recording interface
  • Record every channel plus the Main Mix
• 2x2 SD recorder
  • Record main mix
  • Supports SD and SDHC formats up to 32 GB

Integrated Software

• Capture recording software
• Includes Studio Magic Plug-in Suite with Maag Audio EQ 2, SPL Attacker, Arturia instruments and more
• Includes Studio One 3 Artist software (DAW)

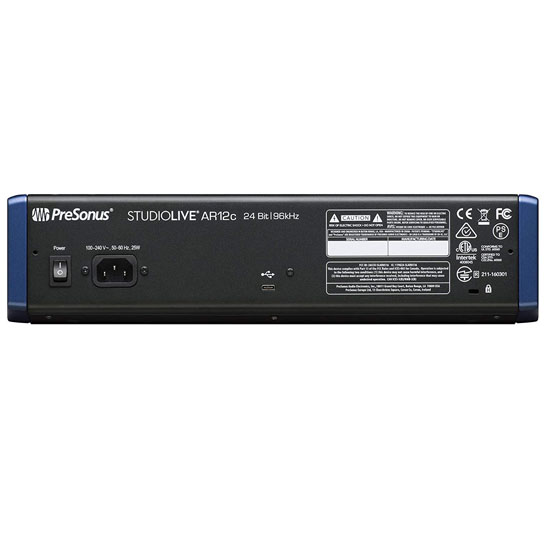

Power

• Internal power supply
• Standard IEC power connector

Physical

• Sturdy metal construction
• 60mm level fader
• Optional rackmount kit and carrying backpack available (not included)

Specifications

• Type: Analog Mixer with USB Interface
• Channels: 12
• Computer Connectivity: USB (14 x 4)
• A/D Resolution: 24-bit/96kHz
• Faders: 13 x 60mm
• Inputs - Mic Preamps: 8 x XLR
• Phantom Power: Global
• Inputs - Line: 1 x Dual RCA Stereo, 1 x 1/8" (stereo), 2 x 1/4" (line), 8 x 1/4" (4 x stereo pair)
• Inputs - Other: 2 x 1/4" (Hi-Z/line)
• Outputs - Main: 2 x XLR (main), 2 x 1/4" TRS (control room)
• Aux Sends: 2 x Aux (pre), 1 x FX (post)
• Send/Return I/O: 2 x 1/4" (aux send), 1 x 1/4" (FX send)
• Inserts: 2 x 1/4" (channel)
• Headphones: 1 x 1/4" TRS
• USB: 1 x USB-C 2.0
• Bluetooth: v5.0
• Other I/O: 1 x 1/4" (footswitch)
• EQ Bands: Low/High Shelving, Semi-parametric Mid, 100Hz Highpass
• Effects: 8 x Reverbs, 6 x Delays, Chorus, Chorus/Reverb
• Storage: SD/SDHC Card Slot (2 x 2)
• Software: Studio Magic Plug-in Suite, Studio One Artist DAW, Capture Live Recording Software
• OS Requirements - Mac: OS X 10.11.6 or later, 64-bit
• OS Requirements - PC: Windows 7 SP1 or later, 64-bit
• Power Source: Standard IEC AC cable
• Height: 3.5"
• Width: 15" (chassis)
• Depth: 15.6"
• Weight: 11.9 lbs.
