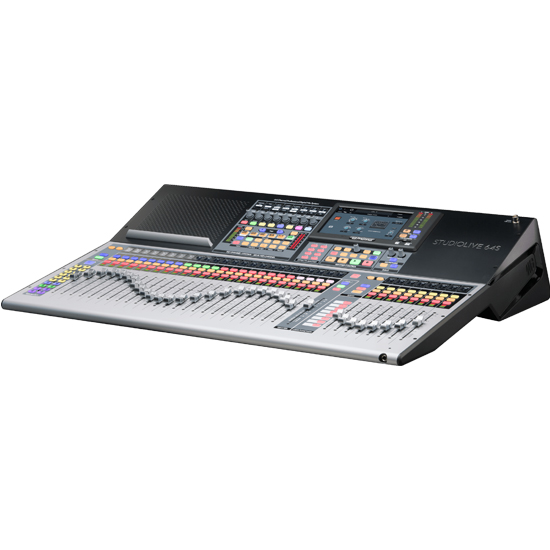

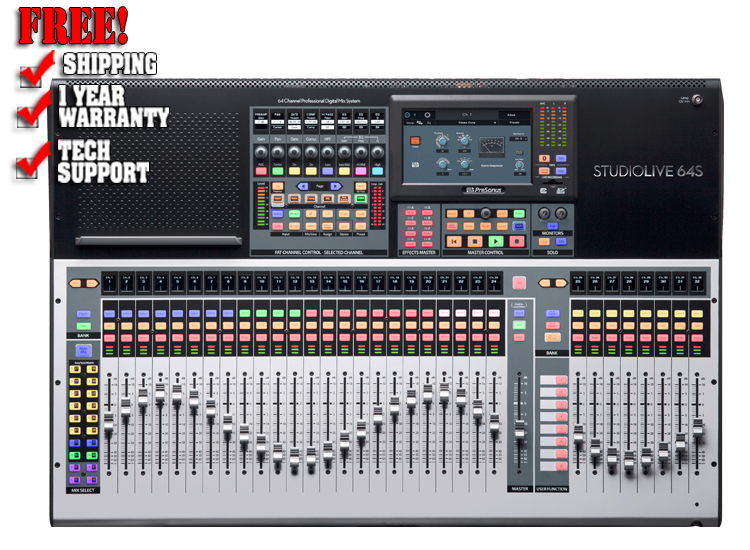

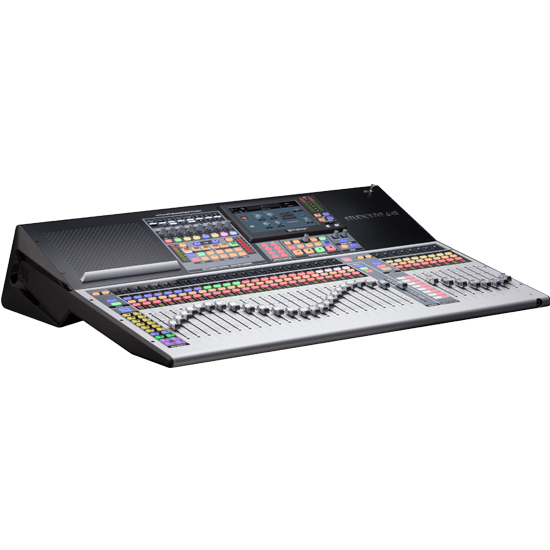

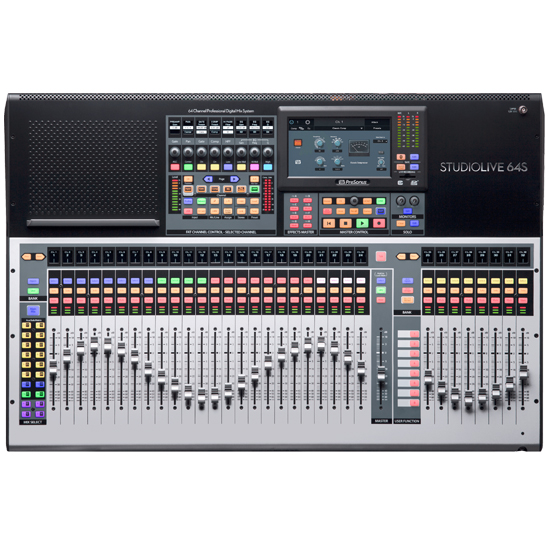

PreSonus StudioLive Series III 64S Digital Console Mixer

Description

Features:

• Powerful and flexible 76-channel digital console available for installed sound, touring, and recording with quad-core FLEX DSP Engine powering 526 simultaneous processors
• 33 touch-sensitive motorized faders
• Fully recallable, 38-input, 40-channel digital mixing console
• 43 Mix buses: 32 FlexMixes (Aux-, Matrix-, or Subgroup- configurable) and 8 FX Mixes plus LCR Main Bus
• Built-in 64x64 AVB audio networking makes connecting other StudioLive Series III mixers, PreSonus NSB stage boxes, EarMix 16M personal monitor mixers plug-and-play
• Built-in 128-channel (64x64) USB interface - the most of any digital mixer on the market
• Onboard multitrack SD Card recorder with true Virtual Soundcheck
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• Complete professional solution: suite of integrated software, including 12 months of Studio One® Pro + and Capture®

Specifications

• Electronics
  • Headphone Jack : 1/4" TRS Active Stereo
  • Phantom Power : +48 VDC (±2 VDC)
  • Power Consumption : 85W (Continuous)
  • Voltage : 100-120V
• General
  • Color : Gray
  • Product Name : StudioLive® Series III 64S Digital Console Mixer, Gray
  • Series : StudioLive®

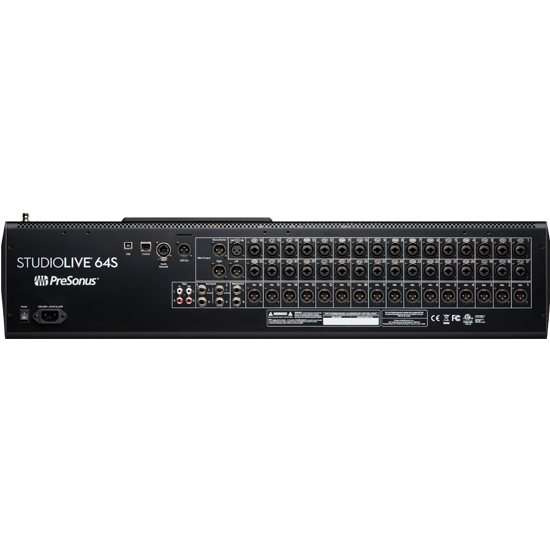

• Hardware
  • Digital Audio AES EBU Output : XLR Male
  • Digital Audio AVB Audio Network Ports : Locking XLR, Ethernet
  • Digital Audio Bluetooth Input : 4.1, Stereo
  • Digital Audio Network Control Port : RJ-45
  • Digital Audio USB Recording Port : USB 2.0, Type-B
  • Tape Connection Type : RCA Female, Unbalanced (Stereo Pair)
• Inputs
  • Line Input Connection Type : 1/4" TRS Female, Balanced
  • Line Inputs Signal To Noise Ratio : 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
  • Microphone Preamp Frequency Response : 20-20 kHz (±0.5 dBu at Unity Gain)
  • Microphone Preamp Signal To Noise Ratio : 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
  • Line Inputs Frequency Response : 20-20 kHz (±0.5 dBu at Unity Gain)
  • Line Inputs Total Harmonic Distortion : < 0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
  • Microphone Preamp Gain Control Range : 0 dB to 60 dB (±1 dB)
  • Microphone Preamp Total Harmonic Distortion : < 0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
  • Line Inputs Impedance : 10 kO
  • Microphone Input Connection Type : XLR Female, Balanced
  • Microphone Preamp Input Impedance : 1 kO
  • Tape Maximum Input Level : +12 dBu, ±0.5 dBu
  • Line Inputs Maximum Level : =+18 dBu
  • Microphone Preamp Common Mode Rejection Ratio : 65 dB (1 kHz at Unity Gain)
  • Microphone Preamp Maximum Input Level : =+12 dBu (Unity Gain)
• Measurements
  • Product Depth : 22.97" (583.84 mm)
  • Product Height : 6.51" (165.36 mm)
  • Product Width : 32.37" (822.21 mm)
• Miscellaneous
  • Digital Audio Internal Processing : 32-Bit, Floating Point
  • Power Cable : IEC
  • Recommended Ambient Operating Temperature : 0° to 40° Celsius / 32° to 104° Fahrenheit
  • Supported Sample Rates : 48 kHz, 44.1 kHz
• Output
  • Headphone Outputs Frequency Response : 20 Hz to 20 kHz, +/-0.5 dB
  • Headphone Outputs Maximum Output : 100 mW/ch. @ 60O load
  • Headphone Outputs Signal To Noise Ratio : 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
  • Headphone Outputs Total Harmonic Distortion : 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
  • Line Outputs Connection Type : 1/4" TRS Female, Balanced
  • Line Outputs Maximum Output Level : =+18 dBu, ±0.5 dBu
  • Line Outputs Output Impedance : 100 Ohms
  • Tape Maximum Output Level : +18 dBu, ±0.5 dBu
  • Tape Output Impedance : 100 Ohms
  • XLR Outputs Maximum Output Level : +24 dBu, ±0.5 dBu
  • XLR Outputs Output Impedance: 100 Ohms
• Performance
  • Crosstalk (Adjacent Channels) : -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
  • Digital Audio Bit Depth : 24
  • Digital Audio Dynamic Range : ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
  • Digital Audio Reference Level For Zero dBFS : =+18 dBu
  • Digital Audio Total System Latency : 1.9 ms (local routing, analog in-analog out, all processing active)
