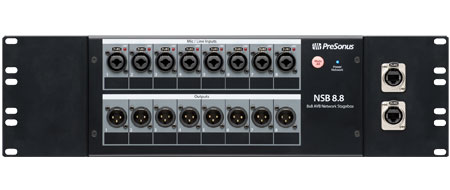

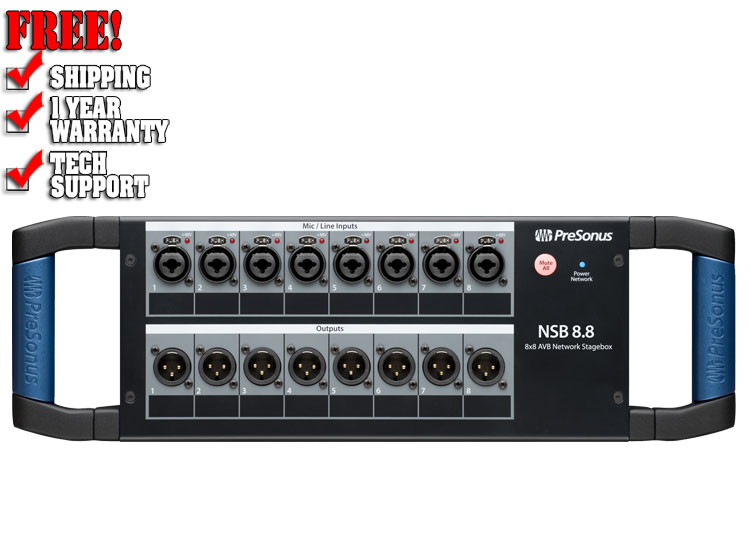

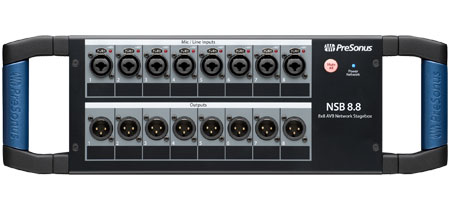

PreSonus NSB 8.8 Networked Stage Box

Gain compensation on every input.

The NSB 8.8 can provide inputs for any StudioLive Series III digital mixer on an AVB network. NSB-series stage boxes have onboard DSP that provides gain compensation on every input so every mixer on the network can make gain adjustments relative to the level set on the master mixer. In this way, every mixer can adjust the preamp level locally for optimal gain staging.

A complete networked solution.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 8.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or multiple mixers on the same network.

Specs

Electronics

• Phantom Power: +48 VDC (±2 VDC)
• Voltage: 100-120V

General

• Color: Black
• Product Name: NSB 8.8 Networked Stage Box, Black
• Series: NSB

Hardware

• Digital Audio AVB Audio Network Ports: Locking XLR, Ethernet

Inputs

• Line Input Connection Type: 1/4" TRS, Balanced
• Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Line Inputs Impedance: 10 kΩ
• Line Inputs Maximum Level: +18 dBu
• Line Inputs Signal To Noise Ratio: 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Line Inputs Total Harmonic Distortion: < 0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
• Microphone Input Connection Type: XLR Female, Balanced
• Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
• Microphone Preamp Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Microphone Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
• Microphone Preamp Input Impedance: 1 kΩ
• Microphone Preamp Maximum Input Level: +12 dBu (Unity Gain)
• Microphone Preamp Signal To Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Microphone Preamp Total Harmonic Distortion: < 0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

Measurements

• Product Depth: 4.5" (11.43 cm)
• Product Height: 5.2" (13.2 cm)
• Product Width: 16.7" (42.4 cm)

Miscellaneous

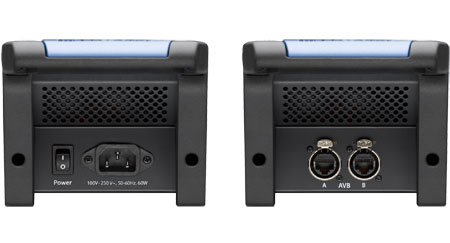

• Power Cable: IEC
• Supported Sample Rates: 48 kHz, 44.1 kHz

Output

• XLR Outputs Maximum Output Level: +24 dBu, ±0.5 dBu
• XLR Outputs Output Impedance: 100 Ohms

Performance

• Digital Audio Dynamic Range: 115 dB (A-Weighted, 48 kHz)
