PERFORMANCE PADS
For dynamic live mixing, 16 multi-colour touch pads give access to Hot Cue, Roll, Slice, Loop and more. Their optimised shape and seat switch connections provide great accuracy and response, while the EL display instantly shows which mode is in play. In Serato DJ you can map other functions to the pads and allocate specific colours for an even stronger visual cue.

CUSTOMISABLE FX BUTTONS
Six customisable buttons on each side of the mixer, and two in the middle, trigger effects directly on your hardware. Fire up six dedicated Beat FX on the left banks, or replace them with other popular on-board FX. On the right, you can map your favourite Serato DJ FX* and their parameters. The OEL display puts the effect types and beat settings at your fingertips.
* Serato DJ offers up to 55 different FX (paid expansion pack needed)

FILTER FX
A high/low pass filter on each channel lets you manipulate FX by simply rotating the knob. With Serato DJ you can switch to other filter FX like Dub Echo, Noise and Pitch.

STYLE LEVERS
The mixer has two large style levers that allow you to swiftly turn effects on and off. Give more dynamics to your sets by triggering FX briefly, locking them on, or exiting arrangements quickly.

TWO BUILT-IN SOUNDCARDS
Two USB soundcards make this the ultimate plug-and-play Serato DJ mixer. Play back-to-back with other DJs seamlessly using the input switcher on top to switch between all four Serato DJ decks. And if you prefer to play with CDJs or turntables, you can easily do so thanks to DVS support.

MIC input
The MIC input features Echo FX and high-quality circuitry to eliminate unwanted distortion.

Clip display
The clip display shows you when your input levels are too high, while the peak limiter eliminates distortion on the MASTER output

MIDI compatible
Fully assignable MIDI functionality via USB can transmit most control information to external devices and can also be used as a MIDI controller.

Features:

• MIDI Control : Full assignable MIDI controls
• Serato HID Control : Yes
• Auto Standby : Yes
• Software System Requirements : Windows 8.1/ 7
• (CPU) Core i3, i5 or i7 1.07 GHz Duo, (Memory) 4GB
• Mac OS X 10.10/10.9/10.8
• (CPU) Core i3, i5 or i7 1.07 GHz Duo, (Memory) 4GB
• Display Resolution : 1280 x 720 or higher

Specifications:

• Width : 267 mm
• Height : 107.9 mm
• Depth : 407.3 mm
• Weight : 4.6 kg
• Rack Mount : Yes
• Frequency Range : 20 - 20,000 Hz
• SN Ratio Line : 107 dB
• Distortion : < 0.005 %
• Power Requirements : 100-240 V / 50/60 Hz
• Master Balance : Yes
• Level Meter Size : 12 segment

  Channels
• Channel EQ : 3 band
• EQ Range : -∞ ~ +6 dB
• EQ On/Off : Yes
• Reverse Channels : Yes
• Level Meter Type : Shared Master

  Performance Control
• Channels : 2
• Beat Effects : Delay, Echo, Flanger, Phaser, Reverb, Trans
• Effect : High-Pass Filter, Low-Pass Filter, Dub Echo, Noise, Pitch
• Serato DJ FX powered by iZotope : 55

  Effect/Sampler
• 3 Band Isolator : Yes
• Auto BPM Counter : Yes

  Cross Fader
• Cross Fader Type : Magvel Fader Pro
• Assignable : Yes
• Reverse Cross Fader : Yes
• Tension Adjustment : Yes

  Mic
• Mic Connection : XLR / Jack Combo
• Talkover : ON/OFF Button
• Talkover Attenuator : Yes

  Soundcard
• Connection : USB
• Sample Rate : 24 bit
• Frequency : 48 kHz

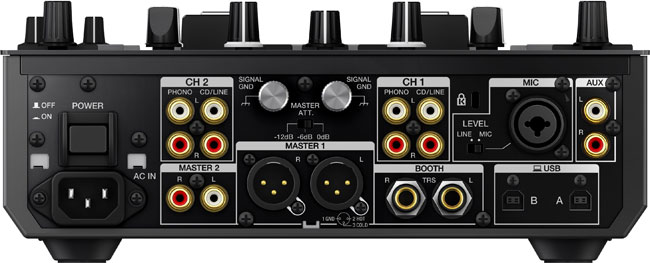

  Terminals
• Inputs : 2 CD/LINE (RCA), 2 PHONO (RCA), 1 MIC (XLR/Jack Combo), 1 AUX (RCA)
• Outputs : 2 MASTER (XLR, RCA), 1 BOOTH (1/4 inch Jack), 2 HEADPHONE MONITOR (1/4 inch Jack, MiniPin)
• USB : 2 USB B ports
