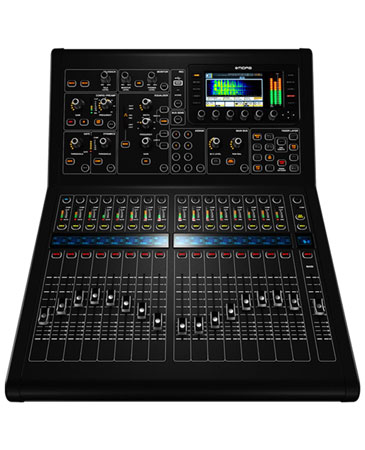

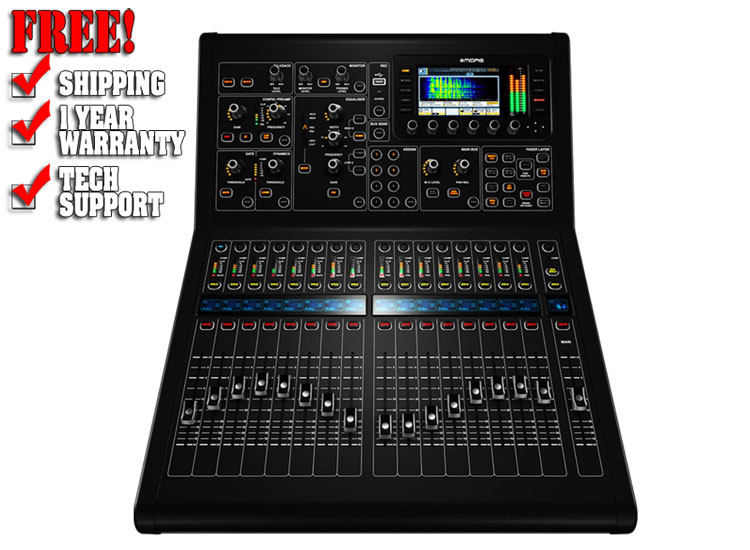

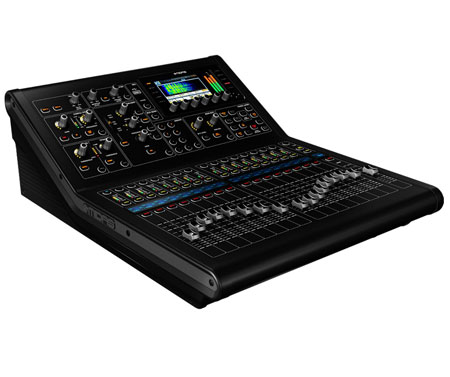

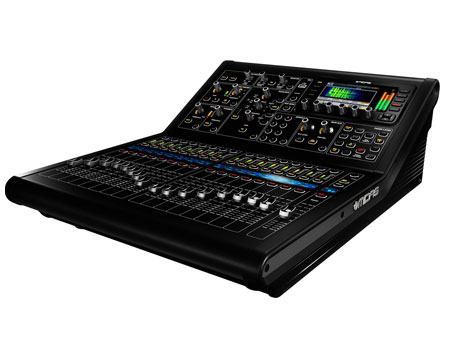

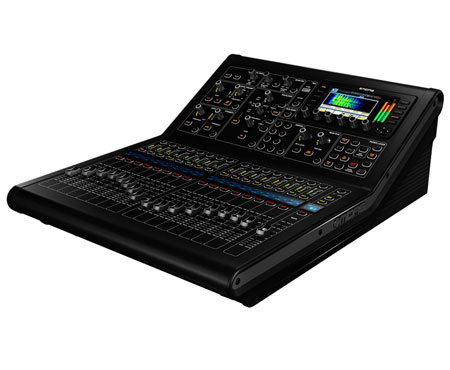

Midas M32R 40-Input 25-Bus Digital Mixer

Digital Console for Live and Studio with 40 Input Channels,
16 MIDAS PRO Microphone Preamplifiers and 25 Mix Buses

Features:

• Live performance and studio recording digital console with up to 40 simultaneous input channels
• 16 award-winning MIDAS PRO microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• Open architecture allows for future 96 kHz operation
• 192 kHz ADC and DAC converters for outstanding audio performance
• Industry-leading design by Bentley Motors Designer
• High-performance aluminium and high-impact steel structure
• Rack mount brackets included for ultimate flexibility
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines
• 17 MIDAS PRO motorised 100 mm faders
• Daylight viewable 5" full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control and HUI protocols
• Auto-ranging universal switch-mode power supply
• 3-Year Warranty Program
• Designed and engineered in England

Designing A Future Classic

Midas' goal for M32R was to combine the best of classic British console designs with advanced modern technology to completely redefine what a rack mountable digital desktop mixing console can offer.

Midas began the industrial design process by drawing inspiration from a somewhat unexpected source - the luxury and high-performance car industry.

Why High-Performance Cars?

Simply because the design teams at Aston Martin, Bentley, Rolls Royce, and other leading manufacturers are skilled at introducing innovative technological advancements while simultaneously maintaining the feel, essence, and intangible qualities of their cherished brands. And in essence, that's the challenge Midas, too, faced when creating the M32R console.

So in order to create a future-forward design that took the MIDAS legacy even further, Midas enlisted the help of Rajesh Kutty, a leading industrial designer known for his work with celebrated luxury auto manufacturers such as Bentley, etc.

Kutty started by examining the design elements that have made MIDAS consoles so highly sought after - from the straightforward, logical layout to the unparalleled usability and ergonomics. These are characteristics that live sound engineers around the world have come to rely on, and are key aspects of the MIDAS legacy.

With these design elements in mind, Kutty set forth to create a styling that would be modern, innovative, futuristic, and stunningly elegant.

Many different construction materials were tested. Countless design variations were explored. And in the end, a styling was chosen that represented the perfect marriage between aerodynamic artistry and uncompromising performance. The design is both ultramodern and distinctly classic at the same time.

The Landmark in Console History

A close look at M32R reveals that the styling is completely new in every sense of the word. Rajesh Kutty's automotive-inspired design elements mesh perfectly with a recognisable MIDAS signature, setting the M32R apart from any other console. Its beautifully streamlined and elegant form factor completely revolutionises the experience of live mixing.

The MIDAS M32R construction is equally impressive, and is designed to offer you years of reliable performance while withstanding the demanding environment of live performance venues. M32R employs a predominantly space-frame construction, with parts of the sub-frame consisting of high-performance aluminium. Multiple alloys have been employed throughout to guarantee maximum component efficiency and an improved performance-to-weight ratio.

The M32R is an innovative, evolved design that brings together modern construction principles and high-tech materials into a styling destined to go down as a landmark in console history.

MIDAS is the Epitome of Excellence

"In 2013, MIDAS approached me to create a new design language for MIDAS and with it a new mixing console. Having designed for Bentley, I am intimately familiar with the challenge of transforming a brand while retaining the precious heritage - in this case the 40 year old iconic British mixing console brand MIDAS.

Representing the pinnacle of its industry, MIDAS is the Epitome of Excellence. When it comes to ergonomics, performance and style, the aspects of a high-performance luxury car equally apply to a high-end mixing console. I was given a blank sheet of paper for my choice of materials. This meant considering lightweight materials such as top-grade aluminium, while using a sophisticated steel construction, for high-impact structural areas.

High attention was paid to the tactile elements such as fader knobs and the illumination to work under all background conditions.

From the onset the idea was to break the mould! Hence the form study deliberately tried to break away from the static, bulky feel of today's mixing consoles. Instead making it more dynamic, ergonomic, yet luxurious. Colours, size, mobility and hardware were given equal importance to arrive at the M32R - a true projection of the brand, today." - Rajesh Kutty

Industry-Leading 192 kHz Precision

The groundbreaking M32R console combines legendary MIDAS sound quality with advanced digital technology, future-proof 96 kHz capable open architecture design and industry-leading 192 kHz ADC and DAC converters, creating a revolutionary mid-format live console. M32R features ultra-sleek styling, offering you a truly luxurious mixing experience. High-end construction materials provide unparalleled durability and strength, plus substantially lower weight than comparable consoles.

The M32R utilises award-winning MIDAS PRO Series microphone preamplifiers and the custom-designed MIDAS PRO motorised faders that are rated for 1 million life cycles-three times more than other leading consoles.

The MIDAS M32R is a future-forward console that completely raises the bar for live mixing.

Legendary MIDAS Sound Quality

While the MIDAS M32R design, styling, and construction will surely turn a lot of heads, it's the sound that matters most to engineers and performing artists. And that's where M32R shines even brighter - as the latest in a long line of pristine-sounding MIDAS consoles, it descends from a celebrated lineage that literally set the standard in electrical design and sound quality. Ever since MIDAS consoles first found fame 40 years ago with acts like Billy Joel, Yes, The Beach Boys, Pink Floyd and others, the MIDAS legacy has always been about uncompromising quality and the ultimate in sound reproduction.

Backing the analogue input section are audiophile Cirrus Logic multi-channel 192 kHz capable A/D converters, which boast a 114 dB dynamic range, ensuring impressively low distortion and low noise performance.

Built for Tomorrow

The M32R is a console built for today, and tomorrow - its future-proof 96 kHz capable open architecture design and industry-leading 192 kHz 24 bit ADC and DAC converters provide outstanding state-of-the-art audio performance.

Award-Winning MIDAS Mic Preamplifier

The MIDAS mic preamp is considered by leading live sound and recording engineers to be the very essence of the famous MIDAS sound. More than 40 years of design experience paired with the fi nest choice of premium-grade components lead to the acclaimed warmth and depth, bring out subtle ambience, maintain spatial positioning, and more effectively capture a precise image. The acclaimed sound of the award-winning MIDAS microphone preamplifier has inspired generations of live sound engineers to their best work, creating sonic landscapes that have captivated audiences worldwide.

Creating Sonic Landscapes

The MIDAS preamplifier design eliminates typical imbalances of gain-setting stages, thereby improving the common-mode rejection ratio (CMRR) and harmonic distortion to an almost immeasurable level. The constant high-frequency bandwidth topology assures excellent stability, RF rejection and noise performance at all gain levels, contributing to its transparent, open and dynamic sound. But it doesn't end there, over the years many mix engineers have found that this robust and overload-tolerant design takes on a whole new dimension of sound when driven hard, the pristine audiophile reproduction giving way to just the right combination of harmonics, a warm and organic sound heard by millions of concertgoers and recorded for posterity on countless live albums over the years.

Since pristine sound always begins with the microphone preamplifier, the first point where your signal enters the console, M32R features genuine MIDAS microphone preamplifiers, which faithfully reproduce every sonic detail so no part of a performance will ever be missed. Transparent and pristine sound, low noise and high common-mode rejection are all hallmarks of this classic design.

The microphone preamplifiers are the very same ones used in the industry standard MIDAS XL4 and HERITAGE 3000 consoles, which many consider to be the greatest analogue live consoles ever built. Over the past decade, the XL4 and HERITAGE 3000 have been utilised by countless top artists including Bon Jovi, Alanis Morrisette, AC/DC, Coldplay, Kid Rock, Metallica, Alicia Keys, Foo Fighters, Christina Aguilera, Sir Paul McCartney, Pearl Jam, and many more.

The M32R draws from this same legacy to bring you an elite professional level of audio quality and performance.

What Makes the M32R Possible is - Everything

Whether you come from an analogue mixing background, or are accustomed to using other digital consoles, your first experience with M32R has been engineered to be intuitive, fluid and straightforward.

The brilliance of the M32R is its simplicity and workflow. Tactile controls allow smooth adjustments to critical elements as the mix progresses while the TFT screen keeps you informed every step of the way. This integration of tactile controls, motorised faders and the array of LCD and TFT displays makes the M32R experience the premiere solution for Live Sound, Broadcast, Studio Recording and Post Production applications.

M32R changes the game by completely rethinking what is possible in a digital mixer. An intuitive workflow coupled with a fully interactive user interface ensures immediate familiarity and instills confidence. Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price - changing the game entirely.

Industry-Leading Technology for More than 40 years

MIDAS' experience spans over 40 years at the very top end of the live audio industry on countless world tours by the greatest artists and the most prestigious events. 40 years of relentless research, development with 300 of the world's best engineers plus complete control over the manufacturing process. This is what powers the M32R.

Above all, M32R is designed to put the power of digital in your hands, without compromise. MIDAS' singular focus on a matchless value proposition means M32R integrates advanced features such as motorised faders, LCD scribble strips, integrated personal monitor mixing and true high-speed digital audio networking as standard features.

Your "Mind-to-Sound" Interface

M32R is your "mind-to-sound" interface - the intersection of creativity and production.

Whether you're accustomed to digital mixers or not, the M32R's intuitive user interface offers a fluid mixing experience that instantly feels like home.

From the first moments of use, the workflow unfolds in a way that strips away obstacles, distractions, and hesitation.

Channel Strip

The M32R Channel Strip puts the most important channel processing parameters into one section so that no matter which channel you are working on, the controls are always the same.

This highly-efficient layout stems from MIDAS decades of console design and input from Midas' users. Optimized control illumination ensures a clear indication of levels or status from any viewing angle.

Illuminated rotary encoders and switches give you control of preamp settings, frequency shelving, dual dynamics sections, as well as multi-mode fully parametric EQ, bus sends, main, mono and stereo panning.

5" Main Display

M32R's 5" day-viewable color TFT (Thin-Film Transistor) display shows the setting parameters you need when you need them.

Selected for its high-contrast performance and outdoor visibility, TFT is ideal for concert and open air festival venues. Flanked by high-precision, context-sensitive tactile encoders, the screen comes to life and immediately reports in high definition all adjustments applied to a wide range of parameters.

Intelligent design puts control of vital functions such as Effects, Metering, Routing and much more 1 or 2 button presses away.

Sends On Fader - Fader Flip

M32R brings the convenience of digital mixing to your Aux and output bus mixes too, thanks to its integrated Sends on Fader feature. This function allows you to build sub-mixes for monitor, secondary zone feeds, and much more - simply, by flipping the channel faders from main mix level to any selected auxiliary send level. The M32R Fader Flip conveniently works both ways: select one input channel and control its various bus send levels directly adjusting the bus faders, or select a bus master and control its mix by adjusting the input channel faders. The M32R's extremely fast and accurate motor faders will always provide a perfect overview for all mixes and speedy access to adjustments.

DCA Groups

DCA (Digitally Controlled Amplifier) groups allow control over several signals at once without actually mixing them into a subgroup bus. M32R's 8 DCA groups let you control multiple signals via a single fader, such as the entire drum mix, the horn section, or the backup vocalists, etc.

DCA control affects the FOH mix, while allowing the individual buses to remain unchanged. The result is a customizable workflow that provides maximum flexibility, but still allows individual buses and subgroups to serve the purpose they were intended for, such as zone sends, broadcast feeds, etc.

View Function

Across the M32R you'll find 9 strategically placed View buttons associated with various functions. These buttons enable immediate access to information about that specific function.

For instance, if you press the View button in the Equalizer section, information for that channel's EQ is instantly shown on the main display, providing in-depth editing of all related parameters.

This direct access to visual fine-tuning gives the engineer a level of control previously available only on consoles costing exponentially more.

Assign Section

While some digital consoles offer a few user-definable controls, M32R's Assign section sets a new standard by providing a total of 36 fully customizable controls on three separate layers.

Hit the Assign section's VIEW button to select one of the 3 layers. Eight dedicated Buttons can be defined to toggle parameters on/off , adjust timing of effects by tapping, or jump to specific screen views. Use the rotary encoders at the main display that can be assigned to any effects parameters, or to specific parameters in the Dynamics section relevant to the current channel selection.

"Acoustic Integration" - the Live Sound Revolution

Legendary 40-year old British company TURBOSOUND, famous for producing some of the world's best speaker systems, have teamed up with MIDAS to seamlessly integrate mixer and speaker systems. Midas calls it "Acoustic Integration".

The M32R's ULTRANET bus allows streaming up to 16 channels of pristine digital audio to an array of TURBOSOUND iQ speakers - all on a single CAT5 cable, along with control data to set sound presets remotely.

Furthermore, iQ Series loudspeakers feature "True Physical Modelling" of some of the most popular speakers, which can be easily remote controlled via the M32R, allowing the sound engineer to apply different speaker models in real time from the comfort of the mixing desk.

"Acoustic Integration" is the next live sound revolution.

100-Band RTA for all Channel/Bus EQs

The M32R includes a high-resolution 100-band Real Time Analyzer (RTA), with full Bar and Spectrograph views. This high-resolution RTA displays the audio energy distribution in 100 frequency bands over time - capturing a sonogram window of a full 10 seconds.

Switch between the Large RTA view, displaying any available signal in full screen resolution, or the Combined view with the RTA view shown above each of the channel and bus EQ curves. See the results of your filtering choices in the audio spectrum directly. Additionally, the RTA can be displayed on top of the 31-band graphic EQs in the FX rack.

Monitoring and controlling frequencies has never been easier!

16 Breathtaking FX "Plug-Ins" Based on True Physical Modeling

Midas have included 16 breathtaking FX "Plug-Ins" in the M32R, giving you access to a total of 50+ effects that would otherwise cost tens of thousands of dollars in hardware.

This generation of high-end FX "Plug-Ins" is based on True Physical Modeling of classic audio hardware. Midas essentially "rebuilt" classic analog gear in the digital domain and included models of legendary processors such as Urei's 1176, Teletronix LA-2A and Fairchild 670 compressors as well as the legendary Pultec EQP-1a and EQ5 equalisers etc. Midas also included a cutting-edge 5-band multiband compressor.

Gain Splitting and Remote Control for FOH and Monitoring

Gain Split mode separates channel gain (trim) from the head amp gain, allowing both the FOH and/ or the monitor engineer to adjust local trim digitally - and independently of the preamp gain.

Additionally, the HA Gain Remote option allows console gains to be remotely controlled by an external console, such as when using the M32R as a stage box.

Routing and Processing Flexibility

The M32R's routing is extremely robust and flexible. Output signals and XLR outputs are treated separately, allowing signals from AES50 sources or expansion cards to be routed directly to the M32R's analog outputs.

For example, you can use the outputs from an M32R for directly routing back PA or monitoring signals from a main or FOH console. Plus, output tap points can be set as pre- or post-mute for greater usability with your P16 personal monitoring mixers. This is very useful in situations where you don't want mute groups to interrupt your signal flow.

Mighty Tools for Scene and Show Management

M32R's Cue List provides an innovative way to automate the loading of scenes and "Snippets" at different points during a show. Each of the 500 Cue entries can load any of the 100 Scenes or Snippets separately or at the same time. This gives you an amazing total of 500 Cues x 100 Scenes x 100 Snippets!

For example, store your favorite EQ settings for drums on channels 1 - 8 as a Snippet, recallable in an instant as its own preset, completely independent of the console's overall scene. It's like taking a snapshot of a parameter on an input, return, FX slot, bus, Matrix, Main, or DCA group - and saving it for quick access whenever you need it.

The MIDAS PRO FADER-Rated for 1 Million Life Cycles

In Midas' pursuit to lead the industry in every possible aspect, Midas decided to design the world's most reliable motor fader. Midas dove deep into materials science, employing semi-precious metals that offered the durability Midas desired. Midas took painstaking care to design a motorised fader that would provide continuous performance night after night, year after year.

After spending a great deal of time working with metal vendors, Midas developed precision components that offer high linearity, robustness, and smooth feel during operation. Midas needed ultra-straight high-grade steel guide rods with smooth polished surfaces - and Midas got them. Midas worked closely with Midas' manufacturing partners to maintain the tolerance of Midas' parts, always choosing the most suitable materials and controlling the processes to ensure consistent moulding quality and eliminating the warping and deformation caused by shrinking as the parts cool.

True, none of this was easy - Midas spent many long hours developing the MIDAS PRO FADER design. However the results speak for themselves.

MIDAS PRO FADERS are rated for up to 1,000,000 cycles - three times that of other leading manufacturers.

LCD Scribble Strips

A total of 17 programmable LCD Scribble Strips offer channel/bus identification that mirrors what is being controlled.

Use them to enter input/output tags, plus add icons you recognize at-a-glance. Then assign colors to create visual groups for immediate, on-the-fly recognition of similar inputs.

Simple, elegant and effective - plus you'll never need masking tape again.

Virtual Effects Racks

M32R includes an extensive array of onboard effects, rendering outboard processing racks a thing of the past. The Virtual FX rack features 8 true-stereo, studio-grade effects engines each assignable to any input, group or output mix bus. Choose from high-end FX modules including a range of reverbs, delays, EQs, dynamics and much more.

Each FX algorithm has been completely re-imagined for stunning performance - typically costing several times the price of the M32R.

Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the M32R mix engine, ensuring flawless performance, flexible routing and the end of cable faults forever!

The immaculate tube signal path in Teletronix' LA-2A Leveling Amplifier has left its exceptional clarity, its rich and warm compression on countless albums of the past decades.

The ultra-smooth optical attenuator is closely modeled in Midas' LA COMPRESSOR. It provides breezing, natural and effortlessly musical compression. (Inspired by Teletronix LA-2A)

When Urei released the 1176LN Limiting Amplifier in the late 60's, it broke new ground. Field Effect Transistors employed were just invented and the 1176 was one of the first audio processors to benefit from this new technology.

Midas' digital re-incarnation, ULTIMO COMPRESSOR, is based on the early Rev. E model and authentically captures the smooth character of the original class-A output stage and its FET's legendary fast Attack. (Inspired by Urei 1176LN)

The Fairchild 670 tube compressor not only achieves record bids in high-end vintage gear auctions, it also delivers some of the finest colorations in compressor history. Two small trim VR's preset the control side chain action, a six-step switch determines the timing, and the two large Input and Threshold knobs adjust the levels.

Midas' FAIR COMPRESSOR model is true to the original signal path, and conveniently provides models for dual, stereo-linked or M/S operation. (Inspired by Fairchild 670)

The COMBINATOR is an amazing 5-band compressor that emulates famous broadcasting and mastering compressors.

A highly complex processor, the COMBINATOR utilizes automatic parameter control that produces stunning and "inaudible" results. Makeup-gain for each frequency band will automatically be adjusted by the Spectral Balance Control (SBC) function, to maintain a balanced audio spectrum.

The XTEC EQ1 is undisputedly one of the best passive studio equalizers ever manufactured. Virtually indescribable, recording engineers claim the Pultec EQP-1a to be the "secret sauce" of sound enhancement.

Midas analyzed this classic to the core and created an exact physical model that reproduces the multi-faceted sound in painstaking detail. Even the transformers and tube output stage have been faithfully modeled! (Inspired by Pultec EQP-1a)

Pultec simply wrote the book on passive equalization. By digitally "rebuilding" every aspect of the original Pultec classic, Midas captured the very essence in Midas' parametric equalizer XTEC EQ5. Midas' digital re-incarnation is based on the original model and authentically emulates the smooth character of the its rather unique components. (Inspired by Pultec MEQ5)

The new SUB OCTAVER provides two channels of earth-shattering sub-harmonics generation, one or even two octaves below the input signal. While originally designed for bass players, the effect can be adjusted for Hi, Mid and Low frequency tracking to apply to a wide range of applications. This is your secret weapon for beatboxing...

The EDISON EX1 is the re-incarnation of Midas' own analog classics. This remarkably-effective tool allows manipulation of the stereo field. Selectable M/S input/output modes allow the processing or creation of M/S recorded sound sources.

The SOUND MAXIMIZER restores natural brilliance and clarity to any audio signal by adjusting the phase and amplitude integrity to reveal more of the natural texture of the sound, which is often hidden when using some effects and equalizers. (Inspired by Sonic Maximizer 482i)

The DIMENSIONAL CHORUS is the perfect emulation of what has been referred to as "the best analog Chorus unit ever created". Four simple Mode preset buttons activate amazing effects, best described as "space" and "dimension". Absolutely faithful to the original, multiple preset buttons can be pressed simultaneously. (Inspired by Roland Dimension D Chorus)

MODULATION DELAY combines three of the most used time modulation effects into one easy-to-operate unit. Enjoy true-stereo delay with a lush and spacious chorus, topped off with three reverb models to choose from.

The Lexicon 480L has been recognized as the gold standard of digital reverb. Midas have included three of the finest reverb models - Rich Plate, Room and Rich Chamber. The M32's models precisely capture all nuances based on Midas' "True Physical Modeling" and Midas' algorithms even incorporate the unit's AD/DA gain-stepping converters - nailing the entire analog and digital circuit paths right down to the last detail. (Inspired by Lexicon 480L)

EXCITERS increase presence and intelligibility in live sound applications and are indispensable for adding clarity, air and harmonic overtones in the recording studio. ENHANCERS let you emphasize the Bass, Midrange and Hi output at selectable frequencies.

You can generate maximum punch, clarity and detail, without turning up the overall volume. (Inspired by Aphex Aural Exciter and SPL Vitalizer)

Midas' TruEQ STEREO GEQ delivers musical and responsive signal processing-perfect for general room equalization, indispensable for monitoring. M32 provides up to 16 mono graphic EQs, in addition to the multi-band parametric EQs in all channels and buses, to cope with the most demanding stage monitoring situation.

Plus, the M32's motorized faders can be switched to control the filter bands of the graphic EQ, with the channel LCDs showing the corresponding filter frequencies-and you can even put this on a user defined hot-key for immediate access. (Modeled after KLARK TEKNIK DN360)

VINTAGE ROOM stands out head and shoulders over other competing reverberation strategies in the way it models sound propagation in air and room resonances. Invented in the early '80s, the role model delivered authentic room character from an algorithmic reverb long before convolution-based processing was available.

It is an ideal reverb for mixes or sub-groups, as it adds space to complex signals, which is highly desirable in classical music and broadcasting environments. (Inspired by Quantec QRS)

PLATE REVERB emulates the characteristics of a plate reverb chamber with control over the damping pad, modulation depth and speed, and crossover. PLATE REVERB will give your tracks the sound heard on countless hit records since the late 1950's. (Inspired by Lexicon PCM70)

The 3-TAP DELAY in the M32 records the input signal and then echoes it back after a user-definable period of time and number of repeats. What makes the stereo and triple delay useful and outstanding is the linked tap-timing and musical choice of echo patterns.

Use the 3-TAP DELAY to fatten up vocals and instruments, or to add an enhanced spatial element to any performance.

The HALL REVERB effect provides a broad spectrum of reverberation possibilities, from small room to large, or even cavernous proportions. When softly mixed with the original signal, Hall Reverb can be used to create a warm, more natural sound. (Inspired by Lexicon 480L)

This handy dynamic FLANGER and DELAY duo blends the "whoosh" of soaring jet planes with classic Delay, and can be adjusted from mild to wild. This combination effect only takes up one FX slot. (Inspired by Lexicon PCM70)

WAVE DESIGNER is a powerful tool for adjusting signal transients and dynamics such as attack and sustain. Use it to make a snare drum really "crack" in the mix or level out volume inconsistencies of slap bass tracks. (Inspired by SPL Transient Designer)

The STEREO PRECISION LIMITER is perfect for setting a precise volume limits, ensuring distortion-free and optimal signal integrity. Use the Stereo Precision Limiter to boost quiet signals or reduce the level of "hot" signals to prevent clipping. (Inspired by Sony Oxford Dynamics)

The DE-ESSER is a "must-have" tool for reducing the amount of sibilance in vocal mics while adeptly preserving the natural voice timbre of a performance. Use it to enhance the smoothness of the upper mid to high frequencies in vocals as well as drum overheads and strings, etc. (Inspired by SPL 1239)

Based on the legendary EMT250, the VINTAGE REVERB delivers a shimmering, bright reverb that won't overpower your live or recorded tracks. Use the VINTAGE REVERB to sweeten vocals and snare drums without sacrificing clarity. (Inspired by EMT250 Plate Reverb) Occupying only

Occupying only one FX slot, the CHORUS and CHAMBER effect combines the shimmer and doubling characteristics of a studio-grade Chorus with the sweet sound of a traditional Chamber reverb. (Inspired by Lexicon PCM70)

You Are Connected

Each M32R comes loaded with all of the connectivity, I/O and functionality you need, right out of the box - but it doesn't end there. Onboard USB 2.0 connectivity delivers a full 32 x 32 channels of audio and MIDI to your DAW. Integrated multi-channel digital audio interfaces connect to remote stage boxes and/or the P16 Personal Monitor System. Native Ethernet control enables remote operation by computer, iPad or iPhone over a wired or wireless network, across the room - or across the planet!

Dual AES50 network ports featuring KLARK TEKNIK SuperMAC technology support up to 96 inputs and 96 outputs over shielded (STP) CAT5 cable, allowing remote stage boxes and sharing signals among several connected M32Rs and other MIDAS, KLARK TEKNIK and AES50-equipped products.

On-board ULTRANET provides a 16-channel digital mix direct to P16 Personal Monitor Mixers, without added hardware, cost or latency.

Ethernet, USB and MIDI are all standard features on M32R.

An additional expansion slot is also included, so that the M32R can connect to current and future digital audio networks and link protocols via a wide range of expansion cards including USB, ADAT, MADI and Audinate Dante.

A versatile powerhouse of a live console, the M32R also provides robust studio functionality. Record and play back up to 32 tracks which run on Windows XP, Windows Vista, Windows 7, and Windows 8 operating systems or Mac computers via integrated USB 2.0 connectivity. M32R supports both 44.1 and 48 kHz sample rates at 24-Bit, allowing you to record up to 32 tracks of live audio directly to your computer for mixing down later. Take advantage of M32R's built-in FX engines to augment your DAW's plug-in collection, or to free up valuable computer resources.

M32R's recall capability makes it easy for both project and professional studio engineers to stay organised by storing projects as scenes, either internally or externally on a USB stick.

DAW Ready-MIDI Plus Mackie Control and HUI Protocols

Thanks to its onboard MIDI ports, the M32R console can function as a high-level, large-format control surface, similar to Mackie Control and HUI, and integrates seamlessly with most popular DAW platforms. M32R's motorised faders can be used to send position information to the onscreen DAW faders, while each bus' mute and solo buttons control their onscreen counterparts. This powerful control surface relationship, which functions bidirectionally between the M32R and your DAW, allows you to work more quickly and attend to the finer nuances of the overall mix. After all, mixing with your hands puts you in "touch" with your project, providing a level of finesse that can mean the difference between a good recording session-and a work of art! Or, would you rather use a mouse?

M32 EDITOR (PC and Mac)

Just as in life, you can never have too many connections and this applies to controlling the console itself. Simply connect the M32R to a laptop or desktop PC and Mac via LAN, wireless network or Ethernet cable. The M32 EDITOR gives you command of the M32R remotely via computer. Move a fader on the PC, it moves on the M32R; press a button on the computer, the button toggles on the M32R. You'll find this feature extremely helpful for stage of side monitor control, individual control of multiple installed M32Rs, as well as multiple remote control stations of the same M32R. The M32 EDITOR also lets you create scenes on your PC beforehand to minimise the time required for sound checks.

With the M32 EDITOR software for PC and Mac, your computer becomes your virtual M32R.

M32 MIX (iPad)

Front of House is wherever you and your iPad are - thanks to the new M32 MIX App for iPad. Just plug in a wireless router via Ethernet cable to the M32R, and then wirelessly connect up to 10 iPad devices, which is especially handy for custom monitor mixes.

The M32 MIX App lets you control all 32 mic inputs, 8 Aux inputs and 16 buses - plus the FX stereo returns and the Matrix, Main, and DCA levels. Select a fader bank on the iPad, slide the virtual faders and M32R's motorised faders instantly mirror your action. Additionally, thanks to the Sends on Faders functionality, your iPad now controls 16 independent monitor mixes. The M32 MIX App gives you the flexibility and mobility to make running sound a breeze!

Download the free M32R MIX App from the Apple App Store.

M32 CUE (iPhone and iPod touch)

M32 CUE is the perfect tool for setting up your personal monitoring mix with the MIDAS M32R Digital Mixing Console. Compatible with iPhone models and iPod touch devices, each artist can run their own M32 CUE App to adjust and tweak their personal wedge's mix. M32 CUE includes an assignable MCA (Mix Control Association) feature that makes monitor mixing simple enough to be adjusted during performance. Assign any input or combination of inputs to one of the 4 MCA controls inside M32 CUE and instantly get "more me", "less band", "more click track"... with a single sweep of your finger.

Download the free M32R CUE App from the Apple App Store.

M32 CUE (Android)

M32 CUE is also available for Android devices, allowing you to set up your personal monitoring mix with the MIDAS M32R Digital Mixing Console. Compatible with Android (2.2 or higher) mobile devices, each artist can run their own M32 CUE Android app to adjust and tweak their personal IEM or wedge monitor mix with an interface similar to the iPhone app. The app includes an assignable MCA (Mix Control Association) feature for monitor mixing simple enough to be adjusted during performance. Assign any input or combination of inputs to one of the 4 MCA controls inside M32 CUE Android and instantly get "more me," "less band," "more click track..." with a single sweep of your finger.

Specifications:

Processing

• Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
• Output Processing Channels: 8/16
• 16 aux buses, 6 matrices, main LRC: 100
• Internal Effects Engines (True Stereo/Mono): 8/16
• Internal Show Automation (structured Cues/Snippets): 500/100
• Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
• Signal Processing: 40-Bit Floating Point
• A/D Conversion (8-channel, 96 kHz ready): 24-Bit, 114 dB Dynamic Range, A-weighted
• D/A Conversion (stereo, 96 kHz ready): 24-Bit, 120 dB Dynamic Range, A-weighted
• I/O Latency (Console Input to Output): 0.8 ms
• Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

Connectors

• MIDAS PRO Series Microphone Preamplifier (XLR): 16
• Talkback Microphone Input (XLR): 1
• RCA Inputs/Outputs: 2/2
• XLR Outputs: 8
• Monitoring Outputs (XLR/1/4" TRS Balanced): 2/2
• Aux Inputs/Outputs (1/4" TRS Balanced): 6/6
• Phones Output (1/4" TRS): 1 (Stereo)
• AES50 Ports (KLARK TEKNIK SuperMAC): 2
• Expansion Card Interface: 32 Channel Audio Input/Output
• ULTRANET P-16 Connector (No Power Supplied): 1
• MIDI Inputs/Outputs: 1/1
• USB Type A (Audio and Data Import/Export): 1
• USB Type B, rear panel, for remote control: 1
• Ethernet, RJ45, rear panel, for remote control: 1

Mic Input Characteristics

• Design: MIDAS PRO Series
• THD+N (0 dB gain, 0 dBu output): < 0.01% unweighted
• THD+N (+40 dB gain, 0 dBu to +20 dBu output): < 0.03% (unweighted)
• Input Impedance (Unbalanced/Balanced): 10 k Ohm/10 k Ohm
• Non-Clip Maximum Input Level: +23 dBu
• Phantom Power (Switchable per Input): +48 V
• Equivalent Input Noise @ +45 dB gain (150 Ohm source): -125 dB (22 Hz-22 kHz, unweighted)
• CMRR @ Unity Gain (Typical): >70 dB
• CMRR @ 40 dB Gain (Typical): >90 dB

Input/Output Characteristics

• Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB (20 Hz-20 kHz)
• Dynamic Range, Analogue In to Analogue Out: 106 dB (22 Hz-22 kHz, unweighted)
• A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB (22 Hz-22 kHz, unweighted)
• D/A Dynamic Range, Converter and Output (Typical): 109 dB (22 Hz-22 kHz, unweighted)
• Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
• Output level, XLR Connectors (Nominal/Maximum): +4 dBu/+21 dBu
• Output Impedance, XLR Connectors (Unbalanced/Balanced): 50 Ohm/50 Ohm
• Input impedance, TRS Connectors (Unbalanced/Balanced): 20 k Ohm/40 k Ohm
• Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
• Output Level, TRS (Nominal/Maximum): +4 dBu/+21 dBu
• Output Impedance, TRS (Unbalanced/Balanced): 50 Ohm/50 Ohm
• Phones Output Impedance/Maximum output Level: 40 Ohm/+21 dBu (Stereo)
• Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz unweighted
• Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22Hz-22kHz unweighted
• Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz-22 kHz unweighted

Display

• Main Screen: 5" TFT LCD, 800 x 480 Resolution, 262k Colours
• Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
• Main Meter: 18 Segment (-45 dB to Clip)

Power

• Switch-Mode Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz)
• Power Consumption: 70 W

Physical

• Standard Operating Temperature Range: 5°C - 40°C (41°F - 104°F)
• Dimensions: 478 x 617 x 208 mm (18.8 x 24.3 x 8.2")
• Weight: 14.3 kg (31.5 lbs)
