Denon X1850 Prime 4-Channel Club Mixer

Overview

Introducing the X1850 4-Channel Pro DJ digital club mixer from Denon DJ. Fusing a familiar, intuitive layout with a rugged construction, performance driven effects, plus an arsenal of versatile connectivity options, the X1850 provides the next generation in DJ performance technology - a true pro-mix centerpiece for the forward-thinking, creative DJ.

Familiar Layout, Superior Performance
With a rugged metal construction, the X1850 is a 'mixing comfort-zone' for any DJ. Center stage are 4-channels with multi assignable phono/line inputs for seamless integration into virtually any setup. A 'high-visibility', 3-band EQ section offers both 'normal' and expressive 'isolation' modes for further expressive capability, plus expanded sonic creativity via frequency controlled band-isolation. Four smooth 60mm throw, contour adjustable line faders and a Denon DJ contour adjustable Flex-Fader crossfader handle all Pro-DJ mixing styles - from cutting and scratching to blends and mixing. Denon DJ's acclaimed 'Flex-Fader' technology adds adjustable tension to the Crossfader response for a completely personalized experience, so you can focus on delivering the perfect performance.

Sculpt your Sound
A true club mixer shouldn't stand it the way of your creativity, it should act as a true, natural extension of you - the DJ - crafting your unique sound and giving you the professional edge your performance demands. Add dynamic audio effects into your mix with 4 Sweep FX, contouring frequencies with X1850's powerful Lo/Hi Pass Filter and coloring with the adjustable Resonance control. Get creative with the X1850's 16 enhanced Pro-Club BPM FX and 'Time-Division' Touchstrip to activate on-the-fly rhythm-based FX adjustments. For total command of your set, X1850's crisp OLED screen enables full customization of your workflow and performance settings, alongside unrestricted access to adjust and edit the 16 Pro Club FX. Putting even more power to your performance, the X1850 introduces a new FX Quantize control with the Engine Connect Protocol; now all effects parameters always align with your grooves so you spend less time focussing on functions and more time commanding the dancefloor.

Mainstage Connectivity
Audio routing is the core responsibility of any mixer, but complete mastery of your signal chain is a luxury provided by so few solutions on the market. X1850 offers effortless audio source options, routed with (4) Phono/Line channels, Digital, (switchable) USB, a DVS channel selection plus a dedicated stereo send and return. The X1850 PRIME has a built-in 5-port LAN hub for connecting up to four 'SC' media players, carrying tempo information, ultra-fast music file transfer and StagelinQ audo visual connections. A 5-Pin MIDI out to start/sync external gear brings you even more performance flexibility. Add (4) dedicated digital inputs, DVS capability, 24-bit/96kHz pro-grade audio output, plus easy switching to, and between, USB inputs, and your connectivity options for any performance scenario are completely covered. You can further personalize your live performance elements with the two independent mic inputs outfitted with dedicated level and EQ controls, while monitoring the cue/split/ master mix with either ." or 1/8" headphone connectivity.

Dual USB Connections
Seeking hassle-free connectivity to your favorite DJ Software? X1850's dual USB connections easily connect to your laptop, provide a second port for a back-up laptop or let you run two DJ applications in tandem for quick and easy DJ 'hand-offs'. As the X1850 is a fully featured audio interface too, you can send 5 stereo channels (4 x channel faders and the stereo master) to a DAW, so you can record your mix in multitrack mode for editing and finessing later!

Enhance Lighting and Video Shows with STAGELINQ
Denon DJ's 'StagelinQ' connection controls SoundSwitch lighting, Resolume video and TimeCode software - easily sync and enhance any AV show, from mobile to mainstage.

Features

• 4-channel, multi-assignable input, Pro DJ Club Mixer
• 16 pro-level BPM FX with new FX Quantize control
• 'MIDI Start with Clock' feature for syncing external instruments
• Expressive EQ-choose Classic or Isolation modes and an adjustable filter resonance control
• Rugged, smooth channel line faders
• Channel dedicated Sweep FX and Filter
• Crisp, OLED screen for FX editing and preference adjustments
• Dual USB audio connections for software and audio devices
• (2) dedicated XLR (." combo) mic inputs with EQ/Level/talkover
• Tension adjustable, Denon DJ 'flex-fader' Crossfader
• 24-bit/96kHz digital output for uncompromised audio quality
• (4) digital inputs for high-resolution audio mixing
• 5-Port LAN Hub for network & StagelinQ Event lighting/video connectivity
• Rugged metal construction
• Locking IEC connector for secured power cable

Specifications

• Dynamic Range (master): > 117dB (A-weighted)
• Frequency Range: 22-22,000Hz (+1 dB)
• Signal-to-Noise Ratio: Line > 93dB (A-weighted), Phono > 87dB (A-weighted)
• THD+N: < 0.02%
• Channel Separation: < -90dB (@1KHz, unity)
• Headroom: Line Inputs > 16dB, Microphone Inputs > 20dB, Outputs > 20dB
Analog Output
• Master (balanced)
• Master (unbalanced)
• Booth
• Record
• Send
• Headphones
Analog Input
• Line
• Phono
• Microphone
• Return
Microphone Inputs
• CMRR: > 80dB (@ 1KHz, unity)
• EIN: < -124dBu (Rs =150O, DIN)
Digital Output
• Sampling Rate: 44.1, 48, 96kHz
• Bit Depth: 14-bit
Displays
• 1.6" / 39mm (diagonal)
• 1.4" x 0.69" / 35 x 17mm (width x height)
• (2) monochromatic LED-backlit displays

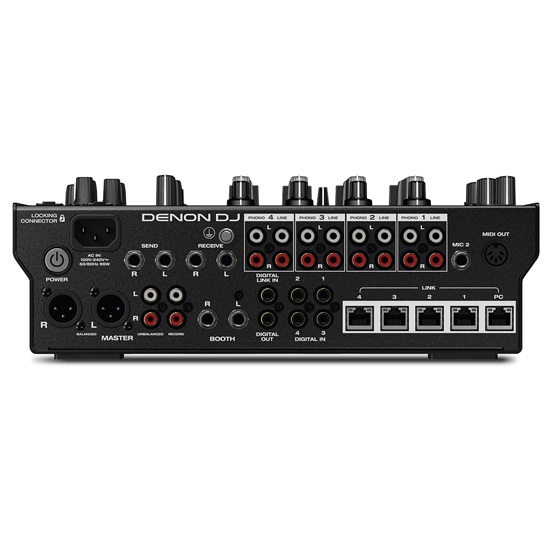

Connections
• 2) XLR outputs (balanced master)
• (2) RCA output pairs (1 unbalanced master, 1 unbalanced record) (
• 5) 1/4" (6.35mm) outputs (2 booth, 2 send, 1 headphone)
• (1) 1/8" (3.5mm) output (headphone)
• (1) coaxial digital output (audio)
• (1) 5-pin DIN MIDI output
• (8) RCA input pairs (4 line, 4 phono)
• (1) XLR+1/4" (6.35mm) input (Mic 1)
• (3) 1/4" (6.35mm) inputs (2 receive, 1 Mic 2)
• (5) RCA digital inputs (4 audio, 1 link)
• (5) Ethernet link ports
• (1) IEC power inlet with locking connector
Power
• Connection: IEC
• Input Voltage: 100-240V~, 50/60Hz
• Consumption: 65W
Dimensions
• (width x depth x height) 12.2" x 17.5" x 4.3",  31.1 x 44.5 x 11.0cm
Weight
• 15.43 lbs. 7.00kg
