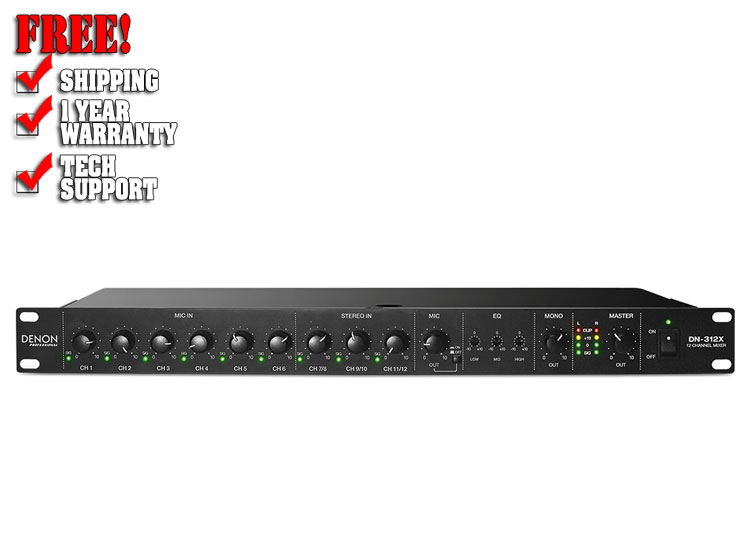

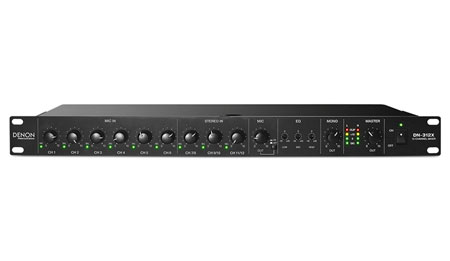

Denon DN-312X

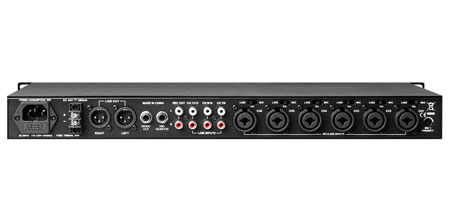

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre's) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics' signals. The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variey of applications; everything from a classtroom to a tour bus.

Features

• 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches
• 6 mono (3 stereo) RCA Inputs
• Mic monitor 1/4" output for private listening of all mic inputs
• Balanced XLR line outputs
• Mono 1/4" line output can be used to feed audio to external recording device
• AC or 24V DC power inputs
• Mic 1 Priority Control
• Master and Individual level controls
• 1U rack mountable

Specification

Input Channels

Microphone Input: 6 Balanced XLR Connectors (Channels 1-6)

• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: -40 dBu
• Maximum Input: -19 dBu

Maximum Voltage Gain:

• 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
• 50 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB
• Phantom Power: 18-21 V, switch control

Line Inputs: 6 Balanced XLR Connectors (Channels 1-6)

• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: 0 dBu
• Maximum Input: +21 dBu

Maximum Voltage Gain:

• 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
• 10 dB (Mic Input to Rec Out)
• Signal-to-Noise Ratio: > 103 dB

Line Inputs: Stereo Balanced RCA Connectors (Channels 7/8-11/12)

• Frequency Response: 20 Hz - 22 kHz
• THD+N: < 0.03% @ 1 kHz
• Sensitivity: +10 dBu
• Maximum Input: +21 dBu

Maximum Voltage Gain:

• 10 dB (Line Input to Line Out)
• 0 dB (Line Input to Rec Out)
• 4 dB (Line Input to Mono Out)
• Signal-to-Noise Ratio: > 103 dB

Impedance:

• Mic/Line Input: 1.4 kO
• Line Input: > 10 kO
• All Outputs: 120 O

Equalizer

• High: +15 dB @ 12 kHz
• Mid: +12 dB @ 2.5 kHz
• Low: +15 dB @ 80 Hz

Crosstalk

Adjacent Inputs:

• < -70 dB @ 1 kHz (Channels 1-6)
• < -68 dB @ 1 kHz (Channels 7/8-11/12)

Input to Output:

• < -82 dB @ 1 kHz

Main MixOutput

• Line Output: 0 dBu (+2 dBu), balanced
• Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
• Maximum Output: +21 dBu balanced/unbalanced, 1/4" (6.35 mm) jacks
• Noise (Bus): < -83 dB @ 20 Hz - 22 kHz

General

• Power connection: IEC
• Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
• Dimensions: (width x depth x height): 19.0" x 7.7" x 1.7" (483 x 195 x 44 mm)
• Weight: 6.4 lbs (2.9 kg)

In the Box:

• DN-312X mixer
• IEC Cable
• User Guide
• Safety and Warranty Manual
