Behringer UB2222FX- PRO | DJ Mixers| DJ Equipments

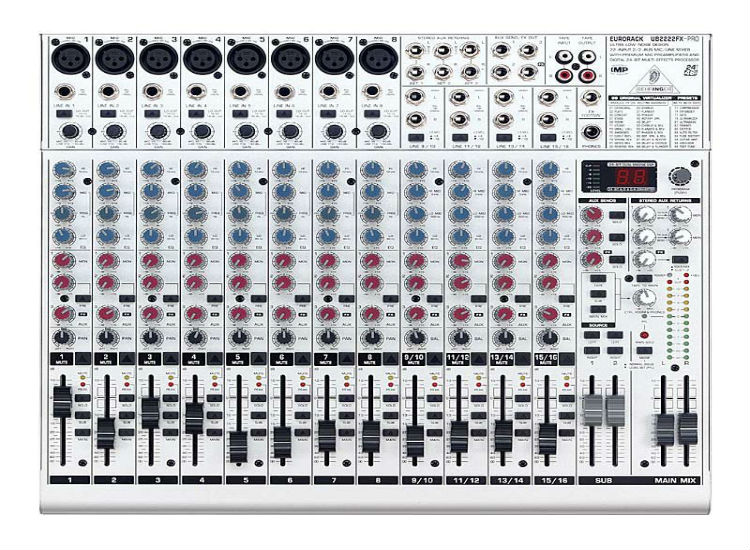

UB2222FX- PRO

This is our second-largest console in the entire UB Series Mixing Consoles. There are 16 balanced high-headroom line inputs, 8 Invisible Mic Preamps (IMPs), 3 aux sends per channel (1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications and 1 post fader for internal FX or as external send). There are effective, extremely musical 3-band EQs with semi-parametric mid bands plus switchable low-cut filters on all mono channels. 2 subgroups with separate outputs for added routing flexibility and 3 multi-functional stereo aux returns with flexible routing are also there. You will also find the integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets.

Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
8 new state-of-the-art, studio-grade IMP “Invisible” Mic Preamps with:
- 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
- Ultra-wide 60 dB gain range
- Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
Integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets including reverb, delay, chorus, compressor, tube distortion, vinylizer and more plus 1 kHz test tone generator
Effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels
Inserts on each mono channel for flexible connection of outboard equipment
16 balanced high-headroom line inputs with +4/-10 level selection on stereo channels
State-of-the-art 4580 operational amplifiers provide lowest noise and distortion—better than 4560 op amps
3 aux sends per channel: 1 pre fader for monitoring, 1 pre/post fader switchable for monitoring/FX applications, 1 post fader (for internal FX or as external send)
Peak LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
2 subgroups with separate outputs for added routing flexibility
3 multi-functional stereo aux returns with flexible routing
Balanced main mix outputs with TRS and gold-plated XLR connectors, separate control room, headphones and stereo tape outputs
Control room/phones outputs with multi-input source matrix
Tape inputs assignable to main mix or control room/phones outputs
Switchable +48 V phantom power for condenser microphones
Long-wearing 60 mm logarithmic-taper ALPS® faders and sealed rotary controls
Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy saving
Extremely rugged steel construction ensures long life even under the most demanding conditions
Rack mount brackets included
Manufactured under ISO9000 certified management system
