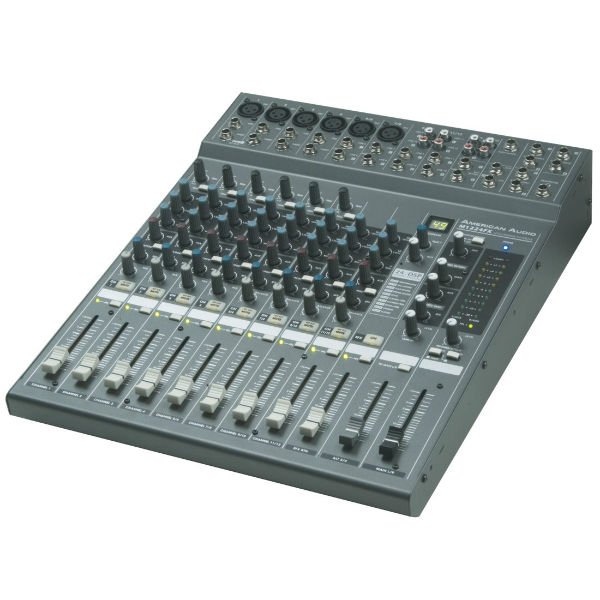

American DJ M 1224 DJ Mixers

PDF Manual

Controls
4 Mono & 4 Stereo Channel Input
Stereo Main Output & ALT 3/4 output
Trim with Peak LED, HPF, 3-band EQ, 1 AUX with Pre/Post Switch, 1 EFX, PAN, Mute & PFL Switch for Mono Input
Trim with Peak LED, HPF (CH5-8)
3-band EQ, 1 AUX with Pre/Post Switch, 1 EFX, BAL, Mute & PFL for Stereo Input
Main L/R with AFL Switch, ALT 3/4 with AFL, to Main Switch, AUX Send, EFX Send, AUX Return & EFX Return
Tape with PFL Switch, HP/Control Room & Phantom Power
24-bit DSP Effect 100 Presets, EFX On / Off & EFX Level

Input Connectors
XLR & 1/4" Phone Jack Balanced & 1/4" Phone Jack for Insert on Mono Input
XLR & 1/4" Phone Jack for Stereo (CH5-8) 1/4" Phone & Phono Jack for Stereo Input
1/4" Phone Jack for Stereo Return & Phono Jack for Tape

Output Connectors
1/4" Phone Jack for Main, ALT 3/4, AUX Send, EFX Send, Control Room & Headphone
Phono Jack for Tape & 1/4" Phone Jack for Footswitch

Indicator
Peak for Each Mono Channel, PFL, Level Meter, Phantom Power & DSP Program

Accessories
19" Standard Rack Mountable (optional)

Specifications
Maximum Output Level: 24 dBm
Frequency Response (-1dB): 20 Hz - 20 kHz
T.H.D.: < 0.01%
Crosstalk: > 70 dB
Hum & Noise Ratio: EIN > 127 dB; Residual > 100 dB; Main, ALT3/4, AUX, EFX output > 80 dB
Equalization High: 12 kHz Â±15 dB, Mid: 2.5 kHz Â±12 dB, Low: 80 Hz Â±15 dB
DSP Effect 24 bit / 100 presets
Power Source: AC 100~240V, 50/60 Hz (external power supply)
Weight : 8 lbs. / 3.4 kg
Dimensions (WxHxD): 13”x16.5”x2.5” / 328 x 420 x 65 mm
