American Audio 19MXR

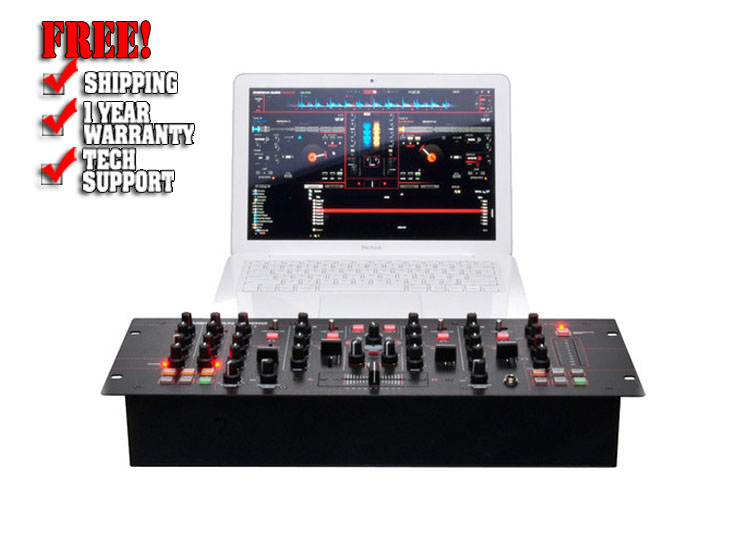

The 19 MXR LTD 4-Channel MIDILOG Mixer from American Audio features an easy-to-use graphic layout, a custom version of Virtual DJ 8LE, and an improved browser for navigation. It features a built-in DSP D-Core sound card with 4-input / 4-output audio interface, balanced XLR outputs, MIDI navigation controls, and user-assignable control buttons to make it easy to customize and play your music.

Features

• Feather Fader Plus
• Balanced XLR outputs
• Feather Fader for smooth and clean cross fades (replaceable)
• Bass, mid, and treble for each channel
• Gain, bass, and treble for mics 1 and 2
• USB connection
• Cue mixing
• Turntable ground connectors located on the rear panel
• Adjustable Crossfader curve
• On/off switch for channel assign
• Gain control for each channel
• Master level indicator
• 19", 4-channel MIDILOG mixer (Compatible with any "MIDI Learn" software or analog inputs such as CD players, turntables, etc.)
• Easy-to-use graphics layout
• Custom version of Virtual DJ 8LE
• Browser features for improved navigation
• Inputs: Four line, two phono, and three mic inputs
• 20 on-board MIDI control buttons (mappable)
• MIDI interface (USB MIDI I/O)
• Built-in DSP D-Core sound card with 4-input and 4-output audio interface
• Controller Mode: When activated USB output streams are routed through master and headphone outputs
• Three-band EQ with rotary kills (treble, mid, and bass)
• MIDI navigation controls to allow easy software navigation of your music library
• Crossfader channel assign
• Master, booth, headphone level, and mix controls
• Microphone volume control and two-band EQ (treble and bass)
• Microphone reverb control
• Mic 3 routed through channel MIDLOG 4
• Crossfader assignable low/high pass filter control
• Ten-segment VU meter

Specifications

• Sensitivity / Impedance
  • EQ Flat, Maximum Gain, Load: 100 kOhms
  • Line: -14 dB
  • Aux: -14 dB
  • Phono: -52 dB
  • Mic: -45 dB
  • Rec: -14 dB
  • Master Unbalanced: 5.2 V
  • Master XLR (Load: 600 Ohms): 10.8 V
  • Digital Out (Load: 75 Ohms): 10.8 V
  • Phones (Load: 32 Ohms): 1.6 V
• Maximum Input
  • 1 kHz Input, Master Output THD: 1%, EQ Flat, FX Off, Maximum Gain
  • Line, Aux: 0.7 dB (1 V)
  • Phono: -38 dB (12.5 mV)
  • Mic: -30 dB (30 mV)
• Maximum Output
  • EQ Flat, Maximum Gain, FX Off, THD: 1%
  • Master: 10.8 V
  • Rec: 5.2 V
  • Phones: (Load: 32 Ohms) 1.6 V
• Output Noise
  • Maximum Gain, EQ Flat, with 20 kHz LPF, A-Weighted
  • Line, Aux: 0.7 mV
  • Phono: 2 mV
  • Mic: 1.5 mV
• Frequency Response
  • EQ Flat, Maximum Gain
  • Line/Aux: ±1 dB, 10 to 20 kHz
  • Phono: ±1.5 dB, 10 to 20 kHz
  • Microphone: ±1.5 dB, 10 to 20 kHz

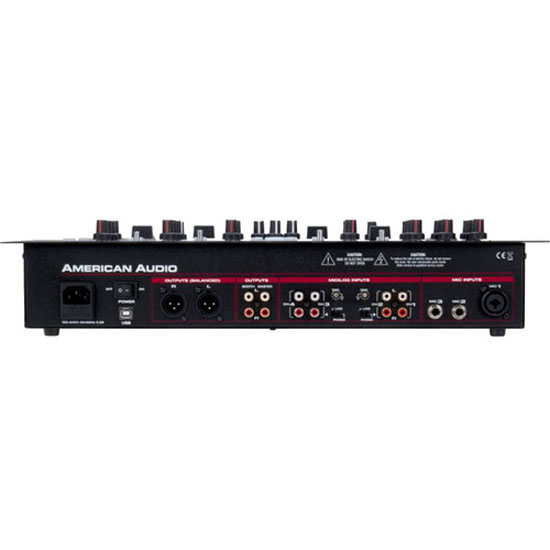

• Connectors
  • 3 x mic
  • 4 x line
  • 2 x Phono
  • RCA master outputs
  • Booth outputs
  • Balanced XLR master outputs
  • USB
  • Audio Inputs: RCA
  • Microphone Inputs: 1 x balanced XLR, 2 x 1/4" balanced
  • Headphone Input: 1/4" stereo
• THD
  • EQ Flat, Maximum Gain, with 20 kHz LPF
  • Line, Aux: 0.03%
  • Phono: 0.1%
  • Mic: 0.1%
• Crosstalk
  • (Maximum Gain, EQ Flat)
  • Line, Aux, Phono: -55 dB
• Equalizer
  • Channel Equalizer: (Maximum Gain, Master Unbalanced Output)
  • Bass: -15 to 11 dB
  • Mid: -13 to 11 dB
  • Treble: -24 to 12 dB
  • Microphone Equalizer: (Maximum Gain, Master Unbalanced Output)
  • Bass: -15 to 11 dB
  • Mid: -13 to 11 dB
  • Treble: -24 to 12 dB
• Crossfader
  • Feather Fader Plus
  • Low-grounding impedance crossfader
• Headphone Impedance 16 to 64 Ohms
• Operating Temperature 41 to 95°F (5 to 35°C)
• Storage Temperature 14 to 140°F (-10 to 60°C)
• Humidity 25 to 85% RH (non-condensing)
• Mount 19" rack mountable
• Power Consumption 6 W
• Power Supply 100 to 240 VAC, 50/60 Hz (universal)
• Dimension (L x W x H) 19 x 7.25 x 3.5" (482 x 178 x 85 mm)
• Weight 8 lb (3.4 kg)
• Packaging Info
  • Box Dimensions (LxWxH) 24 x 12 x 8"
