Alesis MultiMix 12R

Description

Who said you can't take it with you? Our MultiMix line combines studio-quality components and effects processing with rock-solid construction for the ultimate in compact mixers – all at prices wandering musicians will love.

MultiMix FX mixers are the most compact, affordable, high-quality mixers with built-in 28-bit digital effects and choice of configurations.

For those who don't need effects, but want 12 channels of transparent Alesis sound packed into a three-space rack, we offer the MultiMix 12R.

Embrace your multiple personalities: The Alesis MultiMix product line.

Features:

• Ultra-affordable 12-channel mixer in a 3U rack
• 8 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 2 stereo balanced 1/4" line inputs
• 2 aux sends (pre- and post-fader), stereo aux return, 8 1/4" inserts, 2-track stereo RCA in and out
• Separate 1/4" balanced main and monitor outs, front-panel headphone out
• Pan control, peak indicator, and 60mm fader on each channel
• 2-band high/ low shelving EQ per channel
• 10-segment LED stereo meters

Specifications:

CONTROL

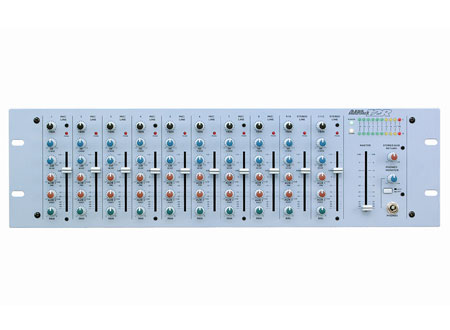

• Front-panel (top down):
• 8 mic/line channels and 2 stereo channels with trim, 2-band EQ (high shelving at 12kHz, low shelving at 80Hz), aux send 1 (pre-fader), aux send 2 (post-fader), pan/balance, and 60mm fader.
• Front-panel other:
• 60mm stereo master fader. Stereo aux return level. Headphone jack with level and master/tape switch. Stereo 10-segment LED meters. Power and phantom power LEDs.

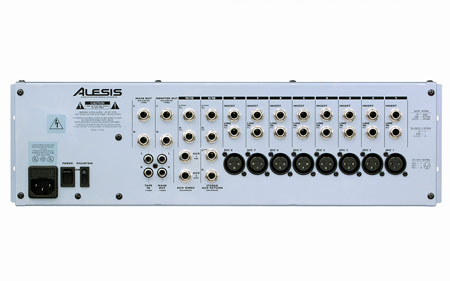

CONNECTIONS

• All 1/4" TRS except as noted:
• Mic in x 8 (XLR), line in x 12, channel insert x 8, aux send x 2, stereo aux return, stereo main out, stereo monitor out, headphone out. Stereo tape in and master out (RCA).

POWER

• 120V AC internal transformer

DIMENSIONS

• (H x W x D): 5.25" x 19" x 6.25" (134mm x 483mm x 158mm), 3U rackmount

WEIGHT

• 8lbs (3.6kg)
