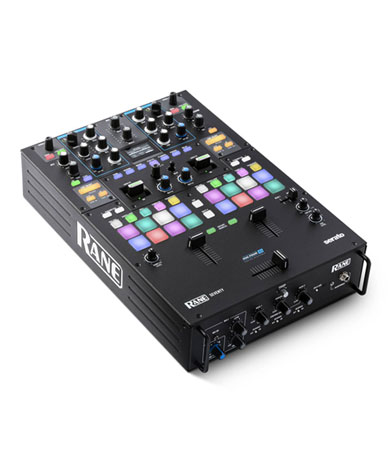

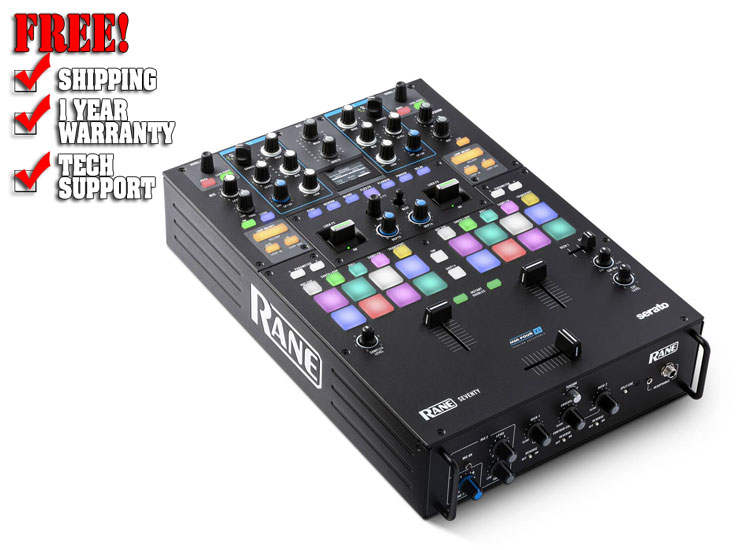

Rane Seventy

Intuitive layout

The SEVENTY gives the most demanding DJ all the tools right where they need them. Instantly select internal Flex FX and Serato FX, dedicated loop control and instant doubles. The SEVENTY also unlocks Serato DJ Pro and Serato DVS.

New MAG FOUR faders

Introducing the brand new contactless MAG FOUR faders. 50% lighter than their predecessors for tighter, faster cuts on the crossfader and upfaders.

Custom Control

Alongside the 3 new MAG FOUR Faders is the external crossfader tension-adjust control. Lose or tight, customize your winning mixers feel.

Performance pads

16 Akai Professional MPC pads with independent control per deck. Includes Hot Cue, Pitch 'n Time, Saved Loops, Sampler, Roll and Transport control.

Tech Specification

Digital Audio

• Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
• Digital Signal Processing : 32-bit, floating point, double precision
• Dynamic Range: (A-weighted, unity gain) - ADC - 114 dB
  DAC - 114 dB
  CD Input to Analog Output - 114 dB
  CD Input to USB Output - 114 dB
  USB Input to Analog Output - 114 dB

Inputs

• Microphone 1/2: (Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable): Analog Gain - 30 dB (Mic), 4.75 dB (Line)
  Maximum Input - 0.126 Vrms (Mic), 2.3 Vrms (Line)
  Gain Trim - Off to +20 dB (unity at center)
• Aux Inputs 1/2(RCA stereo pairs) : Maximum Input - 4 Vrms
  Dynamic Range (A-weighted) - 114 dB
• CD/Phono Inputs 1/2(RCA stereo pairs, switchable) : CD - Line
  Maximum Input - 4 Vrms
  Dynamic Range (A-weighted) - 114 dB
  Phono - RIAA
  RIAA Curve - +0.1/-0.2 dB
  Gain (@ 1 kHz) - 30 dB
  Maximum Input (@ 1 kHz) - 126 mV
• Session Input(RCA stereo pair) - Maximum Input - 4 Vrms
  Dynamic Range (A-weighted) - 114 dB

Outputs

Main Outputs(XLR)

• Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
• Maximum Output : 8 Vrms
• THD+N (@ 1 kHz, 4 Vrms) : 0.002%

Booth Outputs(1/4"/6.35 mm TRS)

• Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
• Maximum Output: 8 Vrms
• THD+N (@ 1 kHz, 4 Vrms): 0.002%

Session Outputs(RCA stereo pair)

• Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
• Maximum Output: 4 Vrms
• THD+N (@ 1 kHz, 2 Vrms): 0.002%

Headphone Outputs(1/4"/6.35 mm and 1/8"/3.5 mm TRS)

• Maximum Output Voltage : 4 V (no load)
• THD+N (@ 1 kHz, 2 Vrms): 0.003%
• Output Power: 96 mW (50 ohms)
• Controls: On/Off muting

General

• Display : 1.6" OLED (diagonal)
• Pads - (16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
• Faders - (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)

Connectors

• (2) XLR outputs (Main)
• (2) 1/4" (6.35 mm) TRS outputs (Booth)
• (4) RCA stereo input pairs (Deck 1-2)
• (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1-2)
• (1) RCA stereo input pair (Session)
• (1) RCA stereo output pair (Session)
• (1) 1/4" (6.35 mm) TRS output (Headphones)
• (1) 1/8" (3.5 mm) TRS output (Headphones)
• (2) USB Type-A ports (Deck 1-2 USB Controllers)
• (2) USB Type-B ports
• (1) IEC power cable input

• Power - Connection: IEC
  Voltage: 100-240 V, 50/60 Hz
  Consumption: 30 W
• Dimensions: (width x depth x height)
  11.2" x 17.5" x 4.13"
  285 x 445 x 105 mm
• Weight : 12.3 lbs.
  5.6 kg
