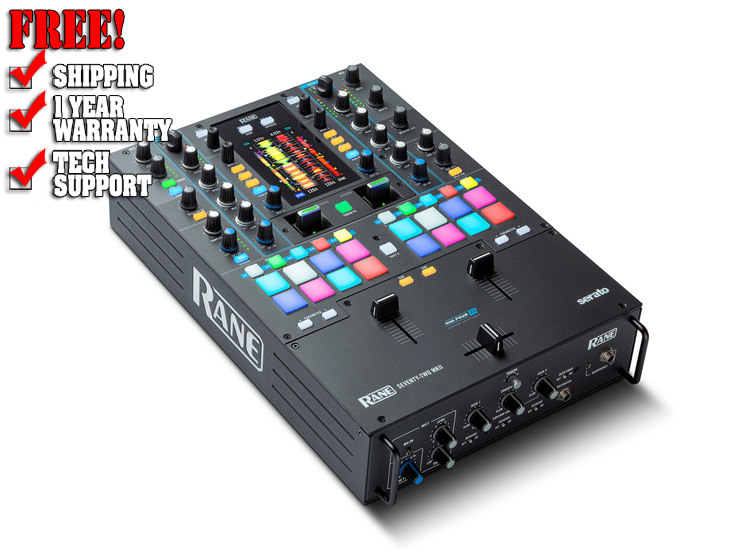

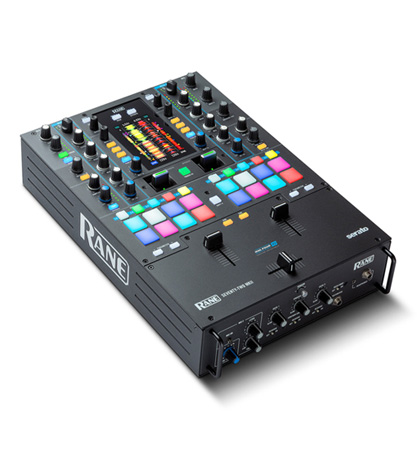

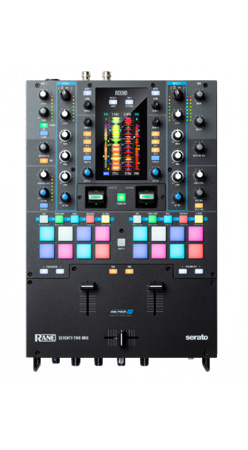

Rane Seventy Two MKII

Premium 2-Channel scratch mixer

Features

Maximum performance, ultimate reliability

Solid steel construction - built like a tank for non-stop, heavy-duty use

Ultimate design

Advanced performance control and creative options with unrivaled Serato DJ Pro integration. The SEVENTY-TWO MKII is designed for high-performance DJs who demand the best.

Solid build

It's solid. With the strength and durability of a solid steel casing and aluminium paddles, the SEVENTY-TWO MKII is ready for any anything. Go into battle to win, go with a solid steel tank.

Performance touchscreen

4.3" color touchscreen interface shows moving waveforms from Serato DJ Pro, enables navigation, track selection, FX control and extensive performance tools.

Multiple FX options

Using the metal paddles, stack up to 6 Serato DJ Pro FX with internal FLEX FX. Customizable Touch FX control via X/Y grid with a single finger. Pad mode trigger using Fader FX or Pad FX

MAG FOUR faders

Three new ultra-light MAG FOUR faders. This design is our lightest yet and delivers all our high-quality patented technology, along with an external crossfader tension-adjust for that perfect custom feel

Performance pads

16 Akai Professional MPC-style pads with independent mode controls per deck, Serato control and Scratch Bank access, plus special modes for FX, Pitch 'n Time, transport, Silent Cue and custom MIDI mappable

Tech Specs

• Display : Full-color display with capacitive multi-touch (2.1" x 3.7" / 54 x 95 mm (wxd)) (4.3" / 109 mm (diagonal))
• Pads : 16x velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
• Faders : 3x MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
• Outputs
• 2x XLR (Main)
• 2x 1/4" (6.35 mm) TRS (Booth)
• 1x RCA stereo pair (Session)
• 1x 1/4" (6.35 mm) TRS (Headphones)
• 1x 1/8" (3.5 mm) TRS (Headphones)
• Inputs
• 4x RCA stereo pairs (Deck 1–2)
• 2x XLR / 1/4" (6.35 mm) TRS (Mic 1–2)
• 1x RCA stereo pair (Session)
• 1x 1/4" (6.35 mm) TRS (Footswitch)
• Connections
• 2x USB Type-A ports (Deck 1–2 USB Controllers)
• 2x USB Type-B ports
• 1x IEC power cable input
• Digital Audio
• Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
• Digital Signal Processing: 32-bit, floating point, double precision
• Dynamic Range (A-weighted, unity gain):
• ADC: 114 dB
• DAC: 114 dB
• CD Input to Analog Output CD: 111 dB
• Input to USB Output USB: 114 dB
• Input to Analog Output: 114 dB
• Power
• Voltage: 100–240V, 50/60 Hz
• Consumption: 30 W
• Dimensions : Dimensions (wxdxh): 11.2" x 17.5" x 4.13" (28.5 x 44.5 x 10.5 cm)
• Weight : 12.3 lbs. (5.6 kg)
