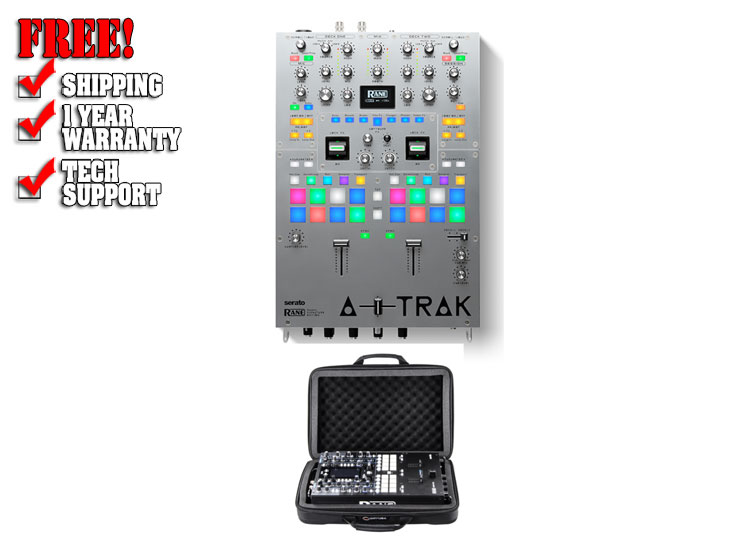

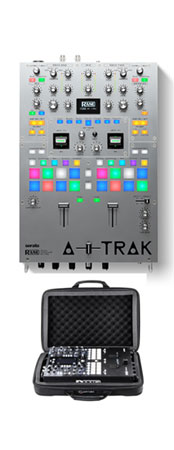

Rane Seventy A-trak Signature Edition + Odyssey BMSRANE72 Case Bundle

More than Just a Pretty Faceplate

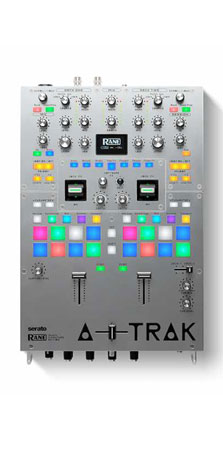

The exterior of the SEVENTY A-TRAK SIGNATURE EDITION features a stunning silver finish that gleams beneath the aluminum-capped rotary-styled knobs and encoders. Custom font-faces and elements adorn the mixer, but the real magic lies beneath the surface. The sound curve and frequency response of the mixer was handcrafted by A-Trak himself, increasing the depth of the low-end to ensure that the high-quality audio matches his signature sound. Simply put, the SEVENTY A-TRAK SIGNATURE EDITION sounds like nothing you've ever experienced before!

Features:

• Exclusive A-Trak designed silver solid-steel exterior with premium rotary-style aluminum-capped knobs
• Up-fader controlled Fader FX with 4 tone generators for advanced performance creativity
• Signature A-Trak sound curve with custom low-end frequency response and industry-leading signal-to-noise ratio of 114dB
• Special 10" Serato Sticker Lock vinyl is included along with custom-designed sticker set
• (6) post-fader internal Flex FX stackable with Serato DJ Pro software FX
• Dual diecast, rotatable aluminum FX paddles
• (3) MAG FOUR contactless faders with external control for crossfader tension-adjustment
• 16 performance pads with independent pad modes for each channel (includes Scratch Bank support)
• Dedicated SYNC buttons with option to change to Instant Doubles or Silent Cue
• (32) MIDI-Assignable Pads
• Dedicated loop controls
• Dual USB connections for DJ handoffs
• RANE TWELVE Connection Hub
• Dual microphone inputs
• Library browse and track selection controls

Other Features

Stunning Custom Design

The exterior of the SEVENTY A-TRAK SIGNATURE EDITION features a stunning silver finish that gleams beneath the aluminum-capped rotary-styled knobs and encoders

Enhanced Capabilities

Fader FX transforms the channel volume faders into linear controllers for performance effects like Filter, Roll, Pitch, Ring Modulator, and four types of Oscillators

Sonic Innovation

The sound curve and frequency response of the mixer was handcrafted by A-Trak himself, increasing the depth of the low end to ensure that the high-quality audio matches his signature sound.

Performance-Enhancing Fader FX

"I'm a big believer that every classic piece of kit should have a signature feature," says A-Trak, "something that sets it apart from the rest." Enter Fader FX, a new mixer feature that transforms the channel volume faders into linear controllers for performance effects like Filter Roll, Pitch, Ring-Modulator, and four types of Oscillators. DJs can dive deep into the settings of these Fader FX options to change root keys, octaves, and more, crafting a personalized set of tools to take with them to their next performance or battle

Built on the Solid Foundation of the RANE SEVENTY

The SEVENTY A-TRAK SIGNATURE EDITION was built upon the solid foundation of the RANE SEVENTY, known for its intuitive layout and best-in-class performance. The same solid-steel construction that makes the SEVENTY a battle-standard mixer is found in the SEVENTY A-TRAK SIGNATURE EDITION along with the same premium MAG FOUR faders and MPC-style Performance Pads. All of the other features that make the original SEVENTY the mixer of choice for discerning DJs are in the SEVENTY A-TRAK SIGNATURE EDITION as well, including easy access to Serato's Scratch Bank, external crossfader tension adjustment, and six post-fader internal Flex FX (including Fader FX) which can layered with Serato DJ Pro's Software FX

SPECIFICATIONS

Digital Audio

• Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
• Digital Signal Processing: 32-bit, floating point, double precision
• Dynamic Range: ADC - 114 dB
• (A-weighted, unity gain): DAC - 114 dB
• CD Input to Analog Output - 114 dB
• CD Input to USB Output: 114 dB
• USB Input to Analog Output: 114 dB

Inputs

• Microphone 1/2: Analog Gain - 30 dB (Mic), 4.75 dB (Line)
• (Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable): Maximum Input - 0.126 Vrms (Mic), 2.3 Vrms (Line)
• Gain Trim: Off to +20 dB (unity at center)
• Aux Inputs 1/2: Maximum Input - 4 Vrms
• (RCA stereo pairs): Dynamic Range (A-weighted) - 114 dB
• CD/Phono Inputs 1/2: CD - Line
• (RCA stereo pairs, switchable): Maximum Input - 4 Vrms
• Dynamic Range (A-weighted): 114 dB
• Phono - RIAA
• RIAA Curve - +0.1/-0.2 dB
• Gain (@ 1 kHz) - 30 dB
• Maximum Input (@ 1 kHz): 126 mV
• Session Input: Maximum Input (@ 1 kHz) - 106 mV
• (RCA stereo pair): Dynamic Range (A-weighted) - 102 dB

Outputs

• Main Outputs: Frequency Response - 20 Hz to 20 kHz (± 0.2 dB)
• (XLR): Maximum Output - 8 Vrms
• THD+N (@ 1 kHz, 4 Vrms) - 0.002%
• Booth Outputs: Frequency Response - 20 Hz to 20 kHz (± 0.2 dB)
• (1/4"/6.35 mm TRS): Maximum Output - 8 Vrms
• THD+N (@ 1 kHz, 4 Vrms) - 0.002%
• Session Outputs: Frequency Response - 20 Hz to 20 kHz (± 0.2 dB)
• (RCA stereo pair): Maximum Output - 4 Vrms
• THD+N (@ 1 kHz, 2 Vrms) - 0.002%
• Headphone Outputs: Maximum Output Voltage - 4 V (no load)
• (1/4"/6.35 mm and 1/8"/3.5 mm TRS): THD+N (@ 1 kHz, 2 Vrms) - 0.003%
• Output Power: 96 mW (50 ohms)
• Controls - On/Off muting

General

• Display: 1.6" OLED (diagonal)
• Pads: (16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
• Faders: (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
• Connectors: (2) XLR outputs (Main)
• (2) 1/4" (6.35 mm) TRS outputs (Booth)
• (4) RCA stereo input pairs (Deck 1-2)
• (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1-2)
• (1) RCA stereo input pair (Session)
• (1) RCA stereo output pair (Session)
• (1) 1/4" (6.35 mm) TRS output (Headphones)
• (1) 1/8" (3.5 mm) TRS output (Headphones)
• (1) 1/4" (6.35 mm) TRS input (Footswitch)
• (2) USB Type-A ports (Deck 1-2 USB Controllers)
• (2) USB Type-B ports
• (1) IEC power cable input
• Power: Connection: IEC
• Voltage: 100-240 V, 50/60 Hz
• Consumption: 30 W
• Dimensions: 11.2" x 17.5" x 4.13"
• (width x depth x height): 285 x 445 x 105 mm
• Weight: 12.3 lbs. - 5.6 kg

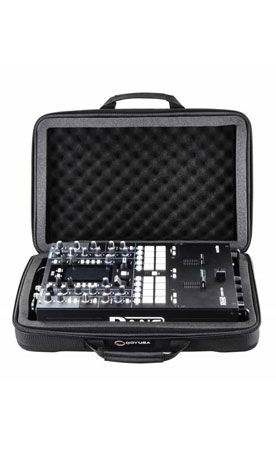

Odyssey BMSRANE72 - Rane Seventy / Seventy-Two EVA Molded Carrying Bag

The sleek reinforced stitched molded shell design of Odyssey's Streemline series EVA bags brings a new standard to DJ gear protection. Effective protection efficiency and versatility is the key. Featuring embossed corners and a multi-layer foam padded interior, the BMSRANE72 is perfect for the Rane Seventy / Seventy-Two DJ Mixer and gear of similar size. Optimize protective space by safely laying them between the convoluted foam sheets. These durable lightweight carry bags have large top grade custom logo zippers and comfortable rivet enforced dual handles. Keep your mind at ease as you flow on down to your gigs with a signature series Streemline DJ bag!

Features:

• Sleek Reinforced Stitched EVA Molded Shell Design
• Embossed Corners
• Multi-layer Foam Interior
• Top Egg Foam is 1.5" Thick
• Bottom Foam Sheet is 0.5" Thick
• Bottom Side Foam Border is 2.25"H and 0.75" Thick
• Durable and Lightweight
• Large Top Grade Custom Logo Zippers
• Comfortable Rivet Enforced Dual Handles
• Non-slip Shoulder Straps
• Empty Bag Interior Dimensions: 19.5" x 12.5" x 4.75

SPECIFICATIONS

• Exterior Dimensions: 20" W x 13.75" D x 5" H
• Interior Dimensions: 19.5" W x 4.75" D x 12.5" H
• Weight: 3 lbs
• Shipping Dimensions: 20.5" W x 14" D x 14" H
• Shipping Weight: 4 lbs

WHAT'S INCLUDED

• Rane Seventy A-trak Signature Edition
• Odyssey BMSRANE72 Case
