Rane Commercial AM 2 Automixer

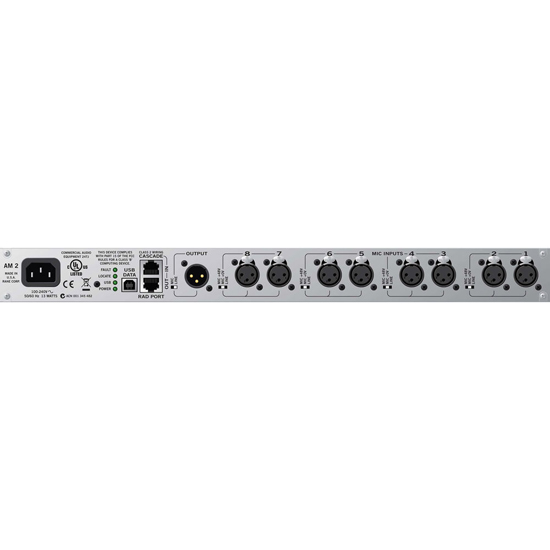

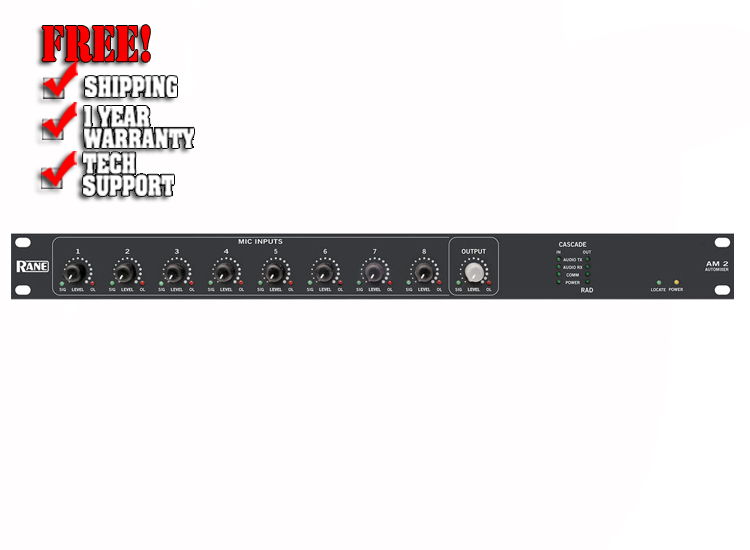

The Rane AM 2 Automixer is a versatile, feature packed single-space rack mount mixer with 8 line / microphone switchable XLR inputs, USB I/O and Ethernet connections for RAD and cascading.

The AM 2 is capable of automatically mixing incoming channel levels, making it an ideal solution for commercial audio installations, podcast recording applications and more. Manual mixing is also available, and its USB connections make it a plug-n-play device for both Windows and Mac OS. In addition to all this, the AM 1 features an RAD output for CobraNet support, and a cascade connection for linking additional AM 2 mixers (sold separately).

Features

• Gain sharing and automatic mic mixing
• 8 XLR mic inputs with level controls & signal/OL indicators
• Manually or automatically mix levels
• USB audio input (16-Bit. 48kHz)
• Power, Locate, USB, Fault and RAD status indicators

Specification

• Total # Of Inputs : 8
• Mic/Line Inputs : 8 - Balanced Mic/Line Switchable 3-pin XLR
• In-Line Inputs/Returns : No
• AUX Sends : No
• AUX Returns : No
• Inserts : No
• 2 Trk Master I/O : Mic / Line Switchabe XLR USB
• ALT I/O : USB Audio, Cascade In and RAD Ethernet Conections
• Channel Level Control : Sealed Rotary Potentiometers (POTS)
• Trim/Gain Control : Same as Channel Level
• Phantom Power : Switchable +48V
• Metering : Signal and Overload LEDs
• Frequency Response : XLR Inputs 100Hz to 7kHz, +0/-3dB, -20dBFS, Extended vocal range
• Dynamic Range : 101dB re +20dBu, 20kHz BW, A-weighted, 0dB gain
• Total Harmonic Distortion (THD) : Mic in < 0.01%, 22Hz to 20kHz, A-weighted, +4dBu, 0dB gain
• Power Supply : Universal Line Voltage 100 to 240VAC, 50/60Hz, 13W
• Dimensions : 11.75 x 19 x 8.5" (4.4 x 48.3 x 21.6cm)
• Weight : 5 lb 4 oz (2.4 kg)
• Package Weight : 7.65 lb
• Box Dimensions (LxWxH) : 20.4 x 13.8 x 4.3"
