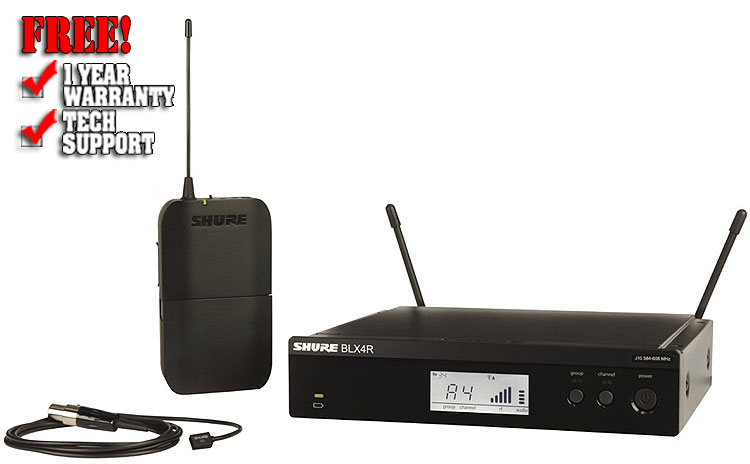

Shure BLX14R/W93 Lavalier

Description

The BLX14R/W93 Wireless Presenter System from Shure joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the miniature wearable WL93 lavalier microphone for spoken word applications. Legendary sound and performance, right out of the box.
For performers who wish to unplug from the wire, BLX Wireless Systems are the clearest choice. Shure delivers wireless confidence with legendary sound from industry-renown microphones, decades of wireless design proficiency and world-class construction. Available in a wide offering of bodypack and handheld configurations.

Includes:
• BLX4R rack mount wireless receiver with rack mount kit
• BLX1 bodypack transmitter
• WL93 omnidirectional condenser lavalier microphone with windscreen, tie clip
• BLX1 Bodypack Transmitter:
• TQG connection for use with Shure lavalier, headset, earset, andinstrument microphones and guitar cables
• Tactile on and off switch
• Adjustable gain control
• Lightweight, rugged construction
• Up to 14 hours of continuous use (2x AA batteries included)
• Up to 300 feet (100m) transmission radius (line of sight)
• Quick and easy frequency matching (GROUP and CHANNEL selection buttons)
• Two-color transmitter status indicator LED
• -Green: "Ready"
• -RapidlyFlashing Red: "Controls Locked"
• -Solid Red: "Battery Power Low" (less than1 hour remaining)
• -Flashing Red/Power Down: "Batteries Dead" (replacebatteries to repower transmitter)

  BLX4R Single Channel Rackmount Receiver:
• One-touch QuickScan frequency selection quickly locates the best openfrequency (in case of interference)
• Up to 12 compatible systems per frequency band (region-dependent)
• Two-color audio status indicator LED
• -Green: Normal audiolevels
• -Red: Excessive audio levels (overload/clipping)
• XLR and 1/4" output connectors
• Adjustable output level
• Removable antennas for quickantenna distribution
• LCD display with detailed RF and audio metering
• Rugged metal construction,rack mount hardware included

  Specifications:
• Operating Range: 300 ft (91 m) line of sight (actual range depends on RFsignal absorption, reflection and interference)
• Available Frequencies: Between 524 — 865 MHz (available frequencies dependon applicable regulations in country where system used)
• Audio Range: 50 — 15,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW, typical (varies by region)
• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
• Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")
• Battery Life: Up to 14 hours
• Dynamic Range: 100 dB A-weighted
• System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHztone)
• Operating Temperature Range: -18°C (0°F)— +50°C (122°F)
• Power Requirements:
• -BLX1: 2 AA alkaline or rechargeable batteries(included)
• -BLX4R: 12 — 18 V DC at 260 mA, supplied by external powersupply
