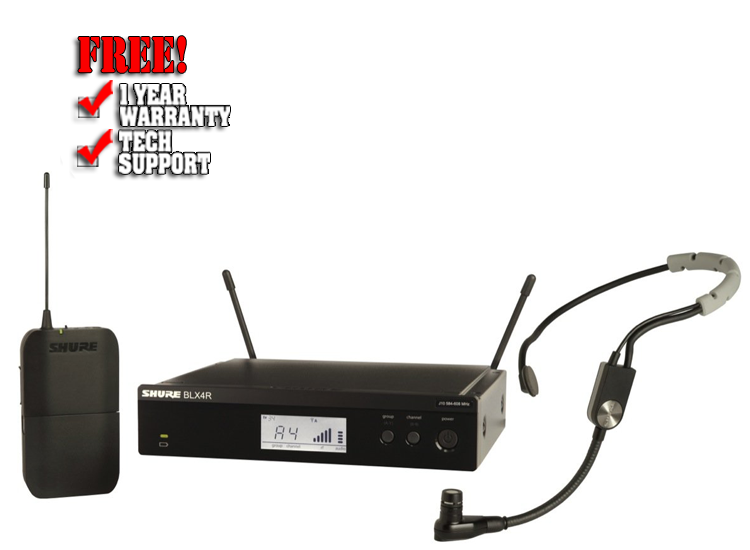

Shure BLX14R/SM35 Wireless Headset Microphone System, Band H10 (542-572 MHz)

Overview

Shure BLX14R/SM35 Wireless Headset

For performers who wish to unplug from the wire, BLX Wireless Systems are the clearest choice. Shure delivers wireless confidence with legendary sound from industry-renown microphones, decades of wireless design proficiency and world-class construction.

The Shure BLX14R/SM35 Wireless Headset Microphone System joins world-class design and construction with simple and easy setup and operation, featuring QuickScan frequency selection and the durable SM35 headset condenser microphone which gives multi-instrumentalists the freedom to express themselves without having to sacrifice the sound quality found in traditional microphones. Get legendary sound and performance, right out of the box.

The SM35 headset condenser microphone from Shure features a tight, unidirectional (cardioid) pickup pattern provides excellent rejection of off-axis sound sources to prevent feedback and signal bleed for superior performance on stage. Standard TA4F (TQG) connectivity seamlessly integrates into any Shure wireless bodypack system, and its availability in a number of bundled systems makes it appropriate for any stage, ranging from small clubs to large installations and arena tours.

Features

• Wearable wireframe headset with secure, comfortable fit made for fitness and aerobics instructors
• Tight, unidirectional (cardioid) condenser pickup pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
• Flexible gooseneck design provides discrete adjustment options to optimize placement for greatest isolation
• Lightweight and low-profile form factors stave off fatigue during high-impact use
• TA4F connector compatible with any Shure wireless bodypack system
• Locking snap-fit windscreen tames plosive, breath and wind noise for clean and intelligible sound
• Tailored frequency response refined for crisp and clear vocal reproduction
• Legendary Shure precision engineering for durability and performance

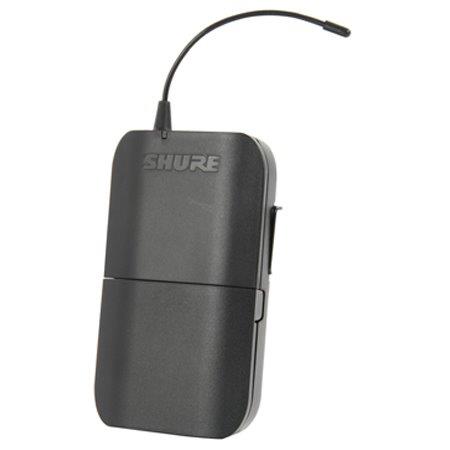

BLX1 Bodypack Transmitter:

• Up to 14 hours of continuous use (2AA batteries)
• Up to 300 feet (100m) transmission radius (line of sight)
• Quick and easy frequency matching (GROUP and CHANNEL selection buttons)
• TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
• Tactile on/off switch
• Adjustable gain control
• Lightweight, rugged construction

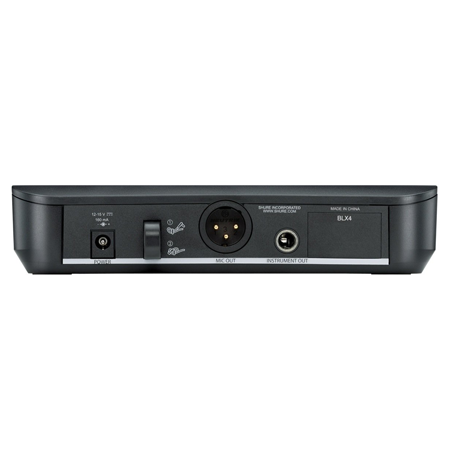

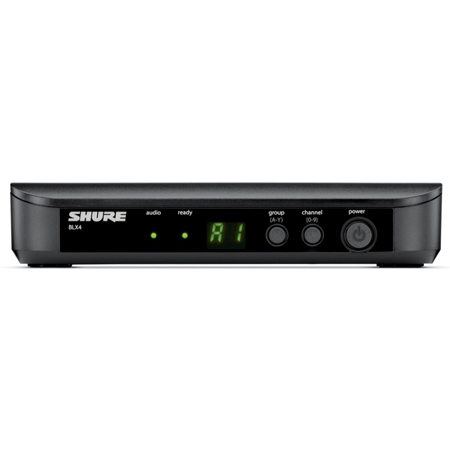

BLX4 Wireless Receiver:

• Rack mount kit included
• Adjustable output level
• Removable antennas for quick antenna distribution
• One-touch QuickScan frequency selection quickly locates the best open frequency
• Up to 12 compatible systems per frequency band
• Two-color audio and RF status LED indicators
• LCD display with detailed RF and audio metering
• XLR and 1/4 inch output connectors
• Working Range 91 m (300 ft) Line of Sight
• Audio Frequency Response 50 to 15,000 Hz Note: Dependent on microphone type
• Total Harmonic Distortion 0.5%, typical
• Dynamic Range 100 dB, A-weighted, typical
• Operating Temperature -18*C (0*F) to 57*C (135*F)

BLX1 Bodypack Transmitter Specifications:

• Audio Input Level gain max: -16 dBV maximum
• Audio Input Level gain min (0 dB) : +10 dBV maximum
• Gain Adjustment Range: 26 dB
• Input Impedance: 1 MO
• RF Transmitter Output: 10 mW, typical varies by region
• Dimensions: 110 x 64 x 21 mm (H x W x D)
• Weight: 75 g (2.6 oz.), without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: up to 14 hours (alkaline)

BLX4R Wireless Receiver:

• Output Impedance XLR connector: 200 O
• Output Impedance 6.35 mm (1/4") connector: 50 O
• Audio Output Level XLR connector: -20.5 dBV (into 100 kO load)
• Audio Output Level 6.35 mm (1/4") connector:-13 dBV (into 100 kO load)
• RF Sensitivity: -105 dBm for 12 dB SINAD, typical
• Image Rejection: >50 dB, typical
• Dimensions: 50 mm X 198 mm X 163 mm H x W x D
• Weight: 998 g (2.2 lb.) without antennas
• Housing Molded: ABS, steel
• Power Requirements: 12-15 V DC @ 260 mA, supplied by external power supply

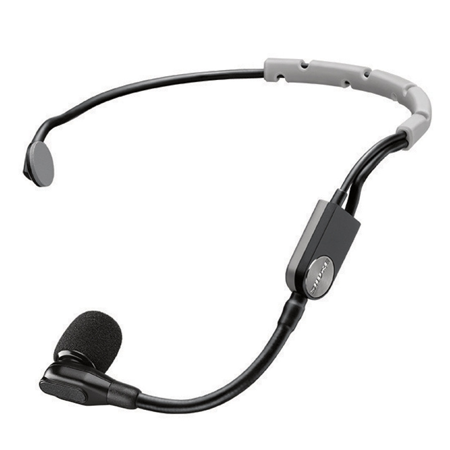

SM35 Performance Headset Condenser Microphone:

• Type: Electret Condenser
• Frequency Response: 45 to 20,000 Hz
• Polar Pattern: Unidirectional (Cardioid)
• Output Impedance: @ 1 kHz 600 O
• Audio Output Level: -50 dBV/Pa
• Signal-To-Noise Ratio: @ 1 kHz 66 dB
• Maximum SPL: 1000 O load, @ 3% THD 145.0 dB
• Dynamic Range: @ 1 kHz, 1000 O load 117.0 dB
• Equivalent Output Noise: Typical, A-Weighted 28 dB
• Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
• Cable: 1.1 m (45 in.)
• Connector: TA4F
• Net Weight: 60 g (2.11 oz.)
• Included: BLX4 wireless receiver; BLX1 bodypack transmitter; SM31FH Fitness Headset Condenser Microphone with windscreen and cable clip
