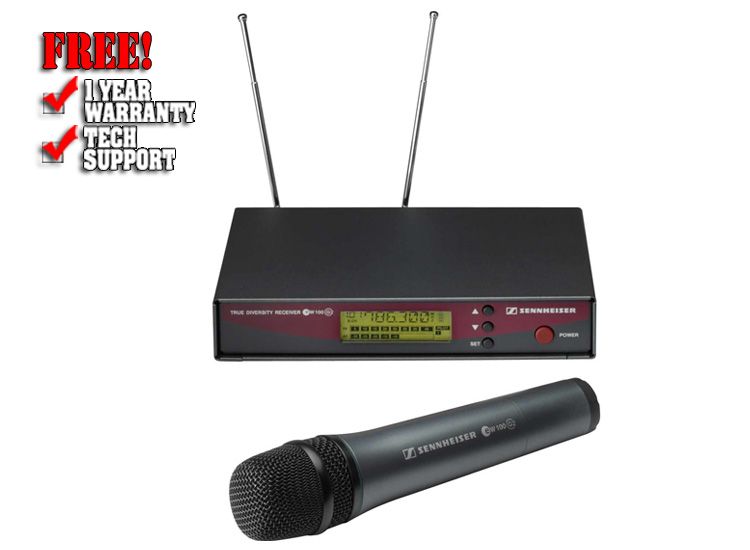

Sennheiser EW135G2

Description

• Simply the best, most affordable way to get professional caliber UHF wireless! Sennheiser's original evolution series introduced startling new technology and innovative design. Now, they're again pushing the limits of performance, audio quality, ruggedness and ease of use. With redesigned features such as much smaller body packs, larger backlit LCD displays, AutoScan function on all receivers, 36MHz switching bandwidth, and more, evolution G2 is today's most advanced, best sounding, easy-to-use, road-worthy wireless system. The amazing 100 Series offers 4 switchable presets (reprogrammable to any of 1,440 available frequencies), a true diversity, and - unlike other wireless systems at this price - metal construction that will stand up to the rigors of life on the road. The system features variable-level 1/4" TRS and XLR balanced connectors.

  Features

• Autoscan on all receivers for simple and secure frequency selection
• 1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
• Robust metal construction for durability
• Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
• New battery concept(AA cells and rechargeable battery accessories)
• Transmitter battery status telemetry on all models
• Audio signal metering on transmitter LCD display
• External charging contacts on 300 and 500 series bodypacks
• XLR jacks on all rack-mountable units

  Technical Info
• Channel Frequencies
  Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
  Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
  Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)

  General Specs
• Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
• Switchable Frequencies: 1440
• Af Freq Response: 40-18000Hz
• Signal To Noise Ratio: >110dB
• Compander System: HDX HDX
• Pilot Tone: 32768kHz, deafeatable

Receiver

• Weight: approx.1100g
• Dimensions: 212 x 145 x 38mm
• Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
• Current Consumption: approx.200mA
• Power Supply: 10.5-16V DC, 12V nom.
• Adjacent Channel Rejection: >65dB
• Image Rejection: >70dB
• Sensitivity: <2.5µV
• Intermodulation Spacing: >65dB
• Receiver Principle: True Diversity
• Booster Dc Supply: None(only via antenna splitter ASP2)

Transmitter

• Weight: approx. 450g
• Power Supply: 2.4V DC
• Nominal Peak Deviation:
  Mic: 1.8V eff.
  Line: approx. 2,4Veff
• Operating Voltage: >8h
• Current Consumption: <170mA <250µ:A
• Rf Outputs: typ. 30mW
• Input Impedance:
  Mic: 10kOhm
  Line: 1MOhm
• Max Sound Pressure Level: approx. 154dB
