Sennheiser EW122G2 Evolution G2 100 Series Cardioid Lavalier UHF Wireless System

Description

Sennheiser EW122G2

• This 100 Series system is ideal for stage productions and presentations. The unobtrusive ME 4 clip-on microphone is virtually invisible and has excellent feedback rejection. The extremely small SK 100 G2 bodypack transmitter as well as the EM 100 rack-mount receiver feature 9 frequency banks with 4 frequency presets each for direct channel selection and are ready for immediate use.

  Features

• 1440 tunable UHF frequencies for interference-free reception
• Absolutely reliable transmission and extended range due to high RF output power
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Transmitter and receiver with rugged metal housings
• Receiver features user-friendly menu operation via backlit display
• Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Transmitter and receiver feature "Low Battery" indicators
• Mute function for the transmitter
• Wide range of accessories adapts the system to any requirement

Technical Info

• Channel Frequencies
  Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
  Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
  Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
• RF frequency range: 518..... 866 MHz
• Transmission/receiving frequencies: 1440
• Presets: 4
• Switching bandwidth: 36 MHz
• Peak deviation: +/- 48 kHz
• Compander: HDX
• Frequency response (microphone): 40.....18000 Hz
• Signal-to-noise ratio: > 110 dB(A)
• THD, total harmonic distortion: < 0,9 %
• In compliance with: ETS 300422 , ETS 300445 , CE , FCC
• Antenna connector: 2 BNC, 50 Ohm
• Audio-XLR connector: 6,3 mm
• Audio output level (balanced): XLR: +18 dBu max
• Audio output level (unbalanced): Jack: +12 dBu max
• Power supply: 10,5 - 16 V DC
• Dimensions (Receiver): 212 x 145 x 38 mm
• Weight (Receiver): 1100 g
• RF output power: 30 mW
• Power supply: 2x 1.5 V battery AA (Mignon)
• Operating time (transmitter): > 8 h
• Input voltage range: mic 1,8 V
• Input voltage range: line 2,4 V
• Dimensions (Transmitter): 82 x 64 x 24 mm
• Weight (Transmitter): 158 g
• Transducer; Microphone type: elektret
• AF sensitivity: 40 mV/Pa
• Sound pressure level (SPL): 120 dB(SPL) max.
• Pick-up pattern: cardioid

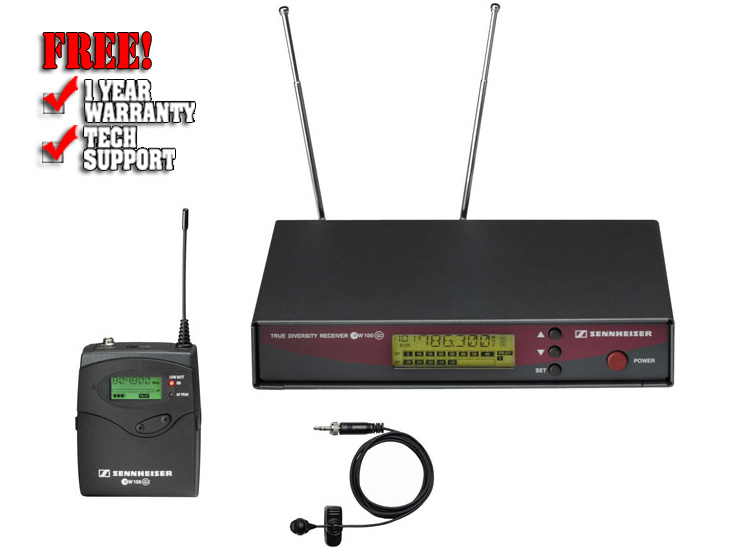

  Delivery Includes
  1 EM 100 G2 rack-mount receiver
• 1 SK 100 G2 bodypack transmitter
• 1 ME 4 clip-on microphone (cardioid)
• 1 NT 2-1 power supply unit
• 2 telescopic antennas
• 2 AA batteries
• Operating instructions
