American Audio WM-419

Description

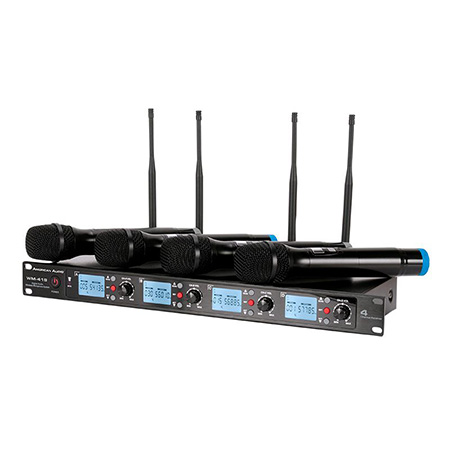

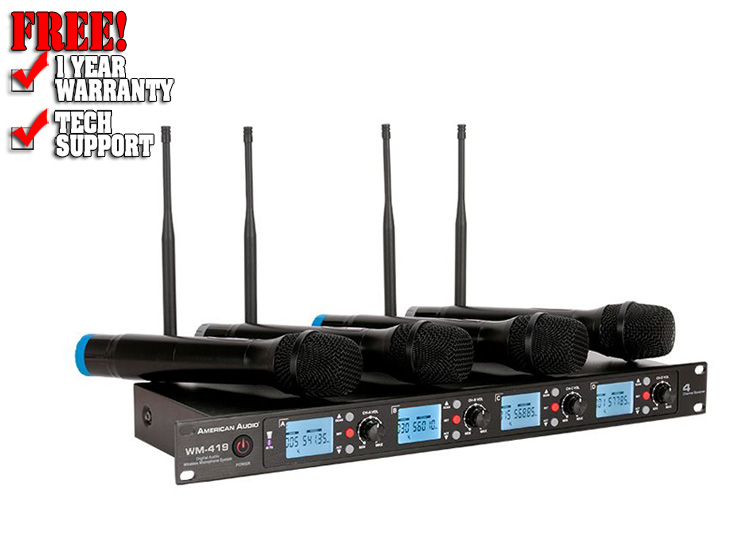

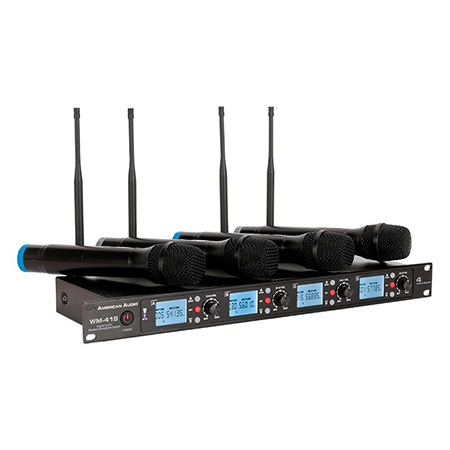

The American Audio WU-419V is a 4-channel UHF wireless microphone system that includes four wireless microphones, four different color coded rings (to differentiate each microphone) and a wireless receive with individual volume control and audio input for each microphone.

The WU-419V is designed for use in PA, karaoke, mobile entertainers, schools and houses of worship. It has a wireless range of 300 feet / 90M (line of site) and each microphone has 6-10 hour battery life.

The American Audio VPS Series microphones were designed with singers, MC's, and anyone who wants a good quality mic at a fair price in mind. Each VPS series mic has been acoustically tailored to outperform competitively priced microphones . From the least expensive VPS-20 to the VPS-80, our mics feature Cardiod and Supercardiod patterns for better feedback rejection while still retaining crystal clear audio properties in order to achieve higher gain levels before feedback. Great care has also been taken when designing the mic capsule, suspension and the barrel in order to help minimize handling noise while still remaining ergonomically comfortable and attractive.

Features:

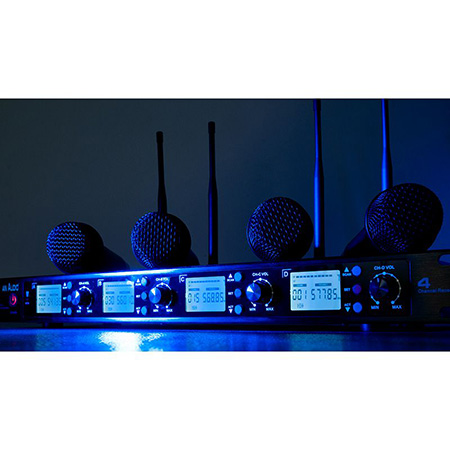

• Individual volume controls on each channel.
• On/Off power switch.

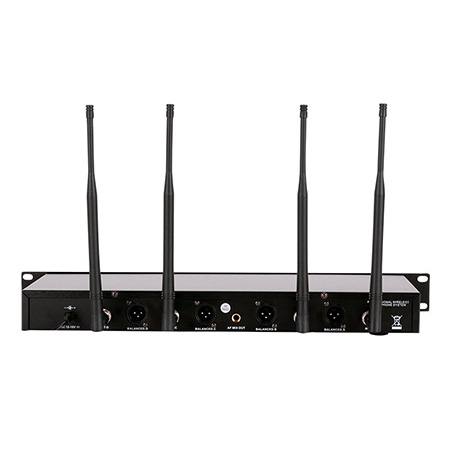

• 4 Individual 3-pin XLR balanced microphone outputs + One 1/4-inch mixed output.
• 2 removable antennas.
• Rugged 1RU Metal Receiver Chassis.
• Quartz Controlled Fixed Frequency.

Specifications:

• Wireless Range: 300 ft. (90M) line of site*
• Battery life with full charge: 6-10 hours
• Frequency Range: UHF 510-556MHz
• Dynamic Range: >95dB
• Total Harmonic Distortion: <0.5%
• Frequency Response: 40HZ ~ 18Hz 3dB
• Signal to Noise Ratio: >98dB
• Audio Output Level: 0-400mV (Balanced: 0-2V)
• Power: 10mW

* Actual wireless range will depend on RF signal absorption and interference.

Dimensions / Weight:

• Receiver Dimensions (LxWxH): 19"x10.4"x1.9" / 482x260x49mm
• Receiver Weight: 4.25 lbs. / 1.9kg.

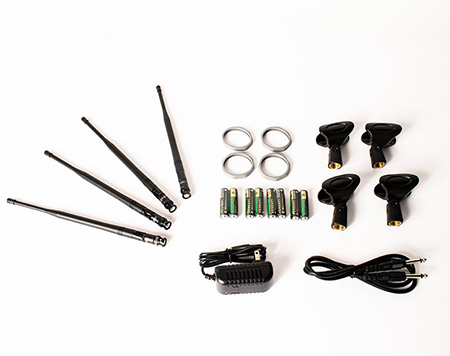

The WU-419V Box Includes:

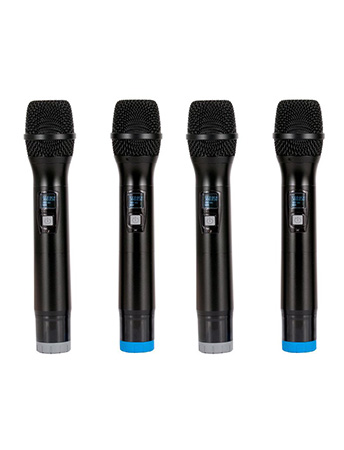

• (4) Wireless Microphones
• (4) Color Coded Rings
• (1) Wireless Receiver
• (2) Detachable Antennas
• (1) Power Cable
