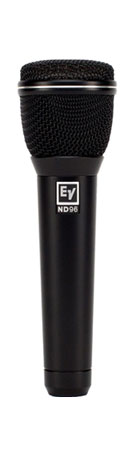

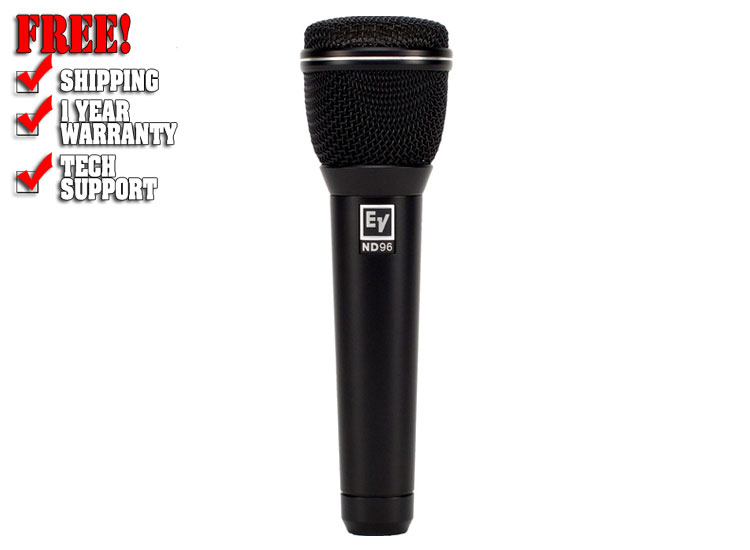

Electro-Voice ND96 Dynamic Supercardioid Vocal Microphone

The Electro-Voice ND96 is a robust, high-performance dynamic supercardioid vocal microphone. Designed for excellent acoustic control on very loud stages, the ND96 special structural and acoustical designs create performance characteristics allowing the microphone's gain before feedback in a mix to be significantly louder than most microphones.

The ND96 dynamic capsule contains a large Mylar diaphragm which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transient response.

The ND96 features a selectable vocal tuning that can be engaged to reduce certain low-mid frequency areas and emphasize key upper-midrange vocal presence areas to increase intelligibility in high energy reinforcement.

The ND96 features an innovative capsule shock-mount system consisting of a 4-point suspension around the circumference of the capsule combined with a tuned pneumatic pump at the capsule base, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix.

The ND96 capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. ND dynamic mics can be used with confidence near speaker cabinets and EMF generating equipment racks. The ND96 Memraflex grille is made of a durable tightmesh grille wire that withstands extraordinarily-rough treatment. Your microphone remains protected and looking good gig-after-gig, year-after-year.

Features:

• Excellent acoustic control on very loud stages: exceptionally high gain before feedback
• Large diaphragm dynamic capsule creates a rich and detailed frequency response
• Vocal presence emphasis switch selects between alternate sonic signatures
• Shock-mounted capsule minimizes handling noise
• Humbucking coil guards against line hum

Specification:

• Audio Frequency Response: 140 - 15,000
• Case Material: Die cast zinc
• Connector Type: 3-pin XLR
• Diameter (Max): 1.99" (50.5 mm)
• Element: Dynamic
• Finish: Black polyurethane paint
• Impedance, Low-Z balanced: 350 O
• Maximum SPL: > 140 dB
• Mic Type: Handheld
• Open Circuit Voltage: 3.3 mV/Pascal
• Polar Pattern: Supercardioid
• Power Requirement: Passive
• Wired/Wireless: Wired

Dimensions and Weight in Packaging

• Base Item
• Shipping Weight: 1.25 lbs
• Shipping Dimensions: 10 x 5 x 3 in
