Audio Technica AT4080 Isolation Recording Kit

Overview

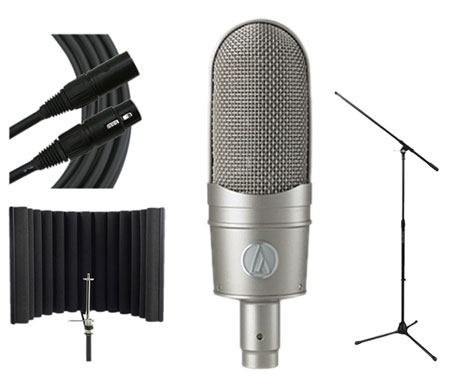

Package Includes

• 1x Audio Technica AT4080 Bi-directional Active Ribbon Mic
• 1x sE Electronics Reflexion Filter RF-X Portable Acoustic Treatment
• 1x Mogami Gold Studio 25' Microphone XLR Mic Cable
• 1x On Stage Stands Mic Boom Stand - MS7701B

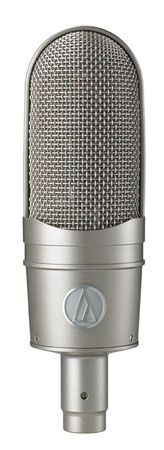

Audio Technica AT4080 Bi-directional Active Ribbon Mic

With the groundbreaking AT4080, Audio-Technica achieves the coveted ribbon microphone sound while solving the problems of fragility and low output that have historically plagued ribbon mics. Delivering the warm, smooth sound of a classic ribbon microphone, Audio-Technica's handcrafted AT4080 Ribbon Microphone offers a robust build for long-lasting, reliable performance and higher output for maximum compatibility with microphone preamplifiers.

Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica's innovative MicroLinear(TM) ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. With 18 patents pending, Audio-Technica's innovative ribbon transducer advances the evolution of ribbon microphone design. Experience the difference.

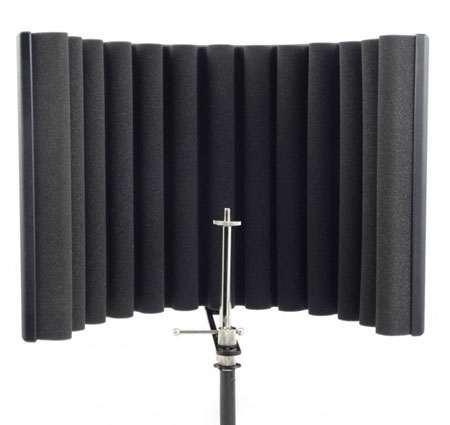

sE Electronics Reflexion Filter RF-X Portable Acoustic Treatment

Unwanted audio ambience may be generated if working in 'untreated' acoustic environments when recording and this naturally affects the quality of any signal captured via microphone. Six years ago sE Electronics were the first company to develop a solution to this commonplace problem and launched the highly successful Reflexion Filter RF-PRO.

The sE Electronics RF-X is the latest high-performance acoustic filter joining sE's highly-acclaimed line of successful and industry standard Reflexion Filter products. Using the same US patented design technology as the RF-PRO the new RF-X has been concieved to answer the needs of the discerning recording artist working on a budget. With a new lightweight body and re-designed lightweight clamp assembly the RF-X is simplicity itself, providing unbeatable performance and ease-of-use.

The RF-X clamp assembly also utilizes a new lightweight design allowing it to be used on almost any microphone stand. It has been simplified to achieve this and allows vertical mounting only - making it the perfect solution for vocal recording. (We recommend the IRF2 for angled instrument miking, or the RF-Pro for specialized vocal mic positioning).

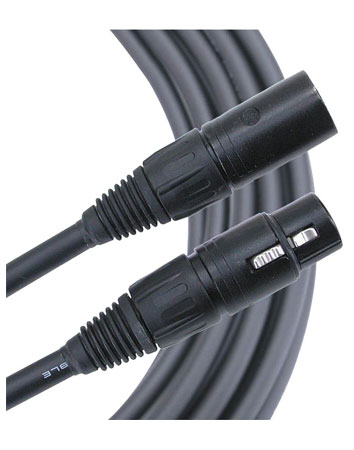

Mogami Gold Studio 25' Microphone XLR Mic Cable

The Gold Series uses selected Mogami Neglex "Studio Quad" Oxygen Free Copper cable. This 4-conductor cable actually cancels noise caused by poor ground planes and high RF or electromagnetic fields. The ultra-low-noise spiral shield is the most densely wound available. All this engineering helps cure many of the problems encountered in a project or home studio, creating a much quieter recording environment with vastly improved Dynamic Range.

Virtually every major recording facility in the world is wired with Mogami cable. This means that just about any music you choose has been recorded using Mogami in the audio chain. The Mogami Gold Studio Microphone Cable is famous for unmatched accuracy, extremely low noise and remarkable flexibility. Top engineers rave about its amazing clarity and silent background. If accuracy in reproduction is your goal, this is the cable for you.

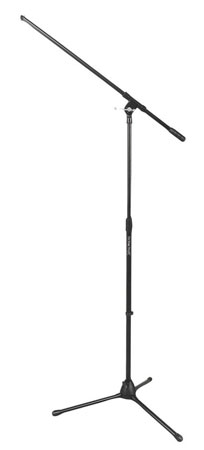

On Stage Stands Mic Boom Stand - MS7701B

Features a steel midpoint locking clutch, 30" removable boom. Tripod base folds flat. Black finish. Ask about our floor display! (Inv. #72037)Our best selling stand! This Euro Boom boasts a hybrid sheet metal and composite leg housing, making it virtually unbreakable. With a removable boom arm and its ability to fold flat, this stand is a must for every member of the band. Features a zinc mid-point clutch and black finish.

Specifications

Audio Technica AT4080 Bi-directional Active Ribbon Mic

• Smooth, warm and natural high-fidelity sound for professional recording, broadcast and sound reinforcement
• Groundbreaking Audio-Technica ribbon design with 18 patents pending
• Proprietary MicroLinear(TM) ribbon imprint for superior durability
• Innovative dual ribbon construction for increased sensitivity
• Extremely powerful N50 neodymium magnets for high output level
• Ultra-fine mesh helps protect against ribbon damage
• Classic bidirectional (figure-of-eight) polar pattern picks up sounds equally from the front and back of the element
• High-SPL capability and extended frequency response
• Extended frequency response for natural audio reproduction
• Acoustic baffle system and extra large output transformer provide natural low-frequency response and extended dynamic range
• Handmade production - including ribbon corrugation, imprint and assembly
• Open acoustical environment of the housing assembly minimizes unwanted internal reflections
• Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers
• Custom shock mount provides superior isolation
• Certified by the METAlliance (Music Engineering and Technology Alliance)
• Element: Ribbon
• Polar Pattern: Figure-Of-Eight
• Response: 20-18,000 Hz
• Open Circuit Sensitivity: -39 Db (11.2 Mv) Re 1v At 1 Pa
• Impedance: 100 Ohms
• Maximum Input Sound Level: 150 Db Spl, 1 Khz At 1% T.H.D.
• Noise: 22 Db Spl
• Dynamic Range (Typical): 128 Db, 1 Khz At Max Spl
• Signal-To-Noise Ratio: 72 Db, 1 Khz At 1 Pa
• Phantom Power Requirements: 48v Dc, 3.0 Ma Typical
• Weight: 474 G (16.7 Oz)
• Dimensions: 177.5 Mm (6.99") Long, 53.4 Mm (2.10") Maximum Body Diameter
• Output Connector: Integral 3-Pin Xlrm-Type
• Accessories Furnished: At8449/Sv Shock Mount For 5/8"-27 Threaded Stands; Microphone Dust Cover; Protective Carrying Case
• Audio-Technica Case Style: R1
• Dimensions and Weight in Packaging
• Shipping Weight: 3 lbs
• Shipping Dimensions: 10 x 11 x 5 in

sE Electronics Reflexion Filter RF-X Portable Acoustic Treatment

• sE's patented acoustic filter technology at an incredibly affordable price
• Rugged enough to stand up to the most demanding work environments
• 4-layer design gives your tracks near-zero sonic coloration
• Lightweight body and clamp assembly for easy, streamlined operation

Mogami Gold Studio 25' Microphone XLR Mic Cable

• Wired with Neglex Studio Quad
• Offers superior clarity and freedom from noise/RF interference
• Terminated with black body 3-pin XLR connectors and gold contacts

On Stage Stands Mic Boom Stand - MS7701B

• Boom Length: 30
• Height Adj.: 36-64
• Base Spread: 23
• Gross Weight: 5.15 lbs
• The easy-to-use Euro-Style clutch featured on the boom stands in this series allow for convenient one-handed angle adjustments on stage.
• Tripod base leg housing is made from a combination of plastic and steel that folds for easy storage and travel
