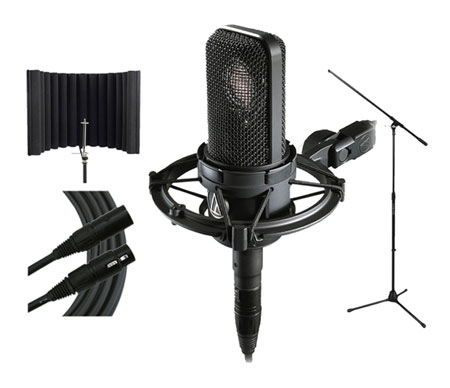

Audio Technica AT4040 Isolation Recording Kit

Overview

Package Includes

• 1x Audio Technica AT4040 Side Address Mic
• 1x sE Electronics Reflexion Filter RF-X Portable Acoustic Treatment
• 1x Mogami Gold Studio 25' Microphone XLR Mic Cable
• 1x On Stage Stands Mic Boom Stand - MS7701B

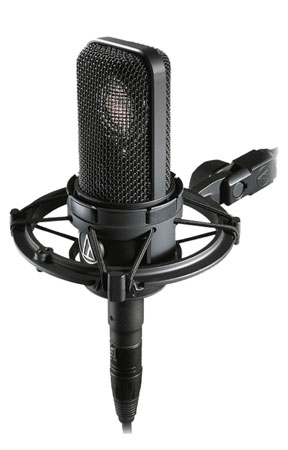

Audio Technica AT4040 Side Address Mic

The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics. A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility. This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems. The AT4040's low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.

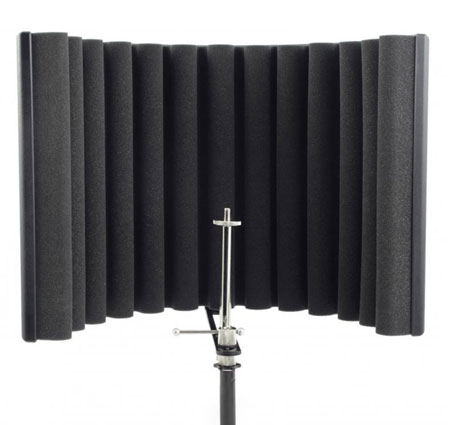

sE Electronics Reflexion Filter RF-X Portable Acoustic Treatment

Unwanted audio ambience may be generated if working in 'untreated' acoustic environments when recording and this naturally affects the quality of any signal captured via microphone. Six years ago sE Electronics were the first company to develop a solution to this commonplace problem and launched the highly successful Reflexion Filter RF-PRO.

The sE Electronics RF-X is the latest high-performance acoustic filter joining sE's highly-acclaimed line of successful and industry standard Reflexion Filter products. Using the same US patented design technology as the RF-PRO the new RF-X has been concieved to answer the needs of the discerning recording artist working on a budget. With a new lightweight body and re-designed lightweight clamp assembly the RF-X is simplicity itself, providing unbeatable performance and ease-of-use.

The RF-X clamp assembly also utilizes a new lightweight design allowing it to be used on almost any microphone stand. It has been simplified to achieve this and allows vertical mounting only - making it the perfect solution for vocal recording. (We recommend the IRF2 for angled instrument miking, or the RF-Pro for specialized vocal mic positioning).

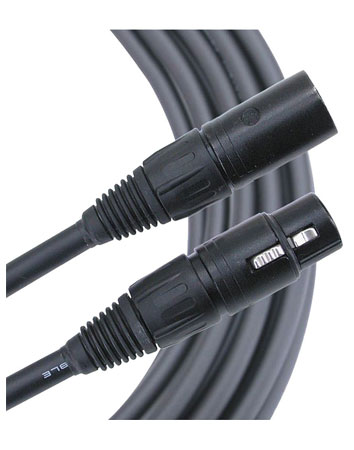

Mogami Gold Studio 25' Microphone XLR Mic Cable

The Gold Series uses selected Mogami Neglex "Studio Quad" Oxygen Free Copper cable. This 4-conductor cable actually cancels noise caused by poor ground planes and high RF or electromagnetic fields. The ultra-low-noise spiral shield is the most densely wound available. All this engineering helps cure many of the problems encountered in a project or home studio, creating a much quieter recording environment with vastly improved Dynamic Range.

Virtually every major recording facility in the world is wired with Mogami cable. This means that just about any music you choose has been recorded using Mogami in the audio chain. The Mogami Gold Studio Microphone Cable is famous for unmatched accuracy, extremely low noise and remarkable flexibility. Top engineers rave about its amazing clarity and silent background. If accuracy in reproduction is your goal, this is the cable for you.

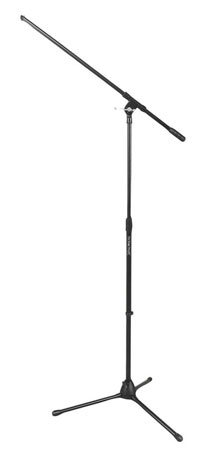

On Stage Stands Mic Boom Stand - MS7701B

Features a steel midpoint locking clutch, 30" removable boom. Tripod base folds flat. Black finish. Ask about our floor display! (Inv. #72037)Our best selling stand! This Euro Boom boasts a hybrid sheet metal and composite leg housing, making it virtually unbreakable. With a removable boom arm and its ability to fold flat, this stand is a must for every member of the band. Features a zinc mid-point clutch and black finish.

Specifications

Audio Technica AT4040 Side Address Mic

• Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics
• Externally polarized (DC bias) true condenser design
• Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility
• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
• Custom shock mount provides superior isolation
• Switchable 80 Hz hi-pass filter and 10 dB pad
• Element : Externally-polarized (DC bias) condenser
• Polar Patterns : Cardioid
• Frequency Response : 20-20,000 Hz
• Low Frequency Roll-Off : 80 Hz, 12 dB/octave
• Open Circuit Sensitivity : -32 dB (25.1 mV) dB re 1V at 1 Pa
• Impedance : 100 ohms
• Maximum Input Sound Level : 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• Noise : 12 dB SPL
• Dynamic Range (typical) : 133 dB, 1 kHz at Max SPL
• Signal-To-Noise Ratio : 82 dB, 1 kHz at 1 Pa
• Phantom Power Requirements : 48V DC, 4.2 mA typical
• Switches : Polar selection; Flat, roll-off; 10 dB pad (nominal)
• Weight : 12.7 oz (360 g)
• Dimensions : 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter
• Output Connectors : Integral 3-pin XLRM-type
• Accessories Furnished AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
• Audio-Technica Case Style R1

sE Electronics Reflexion Filter RF-X Portable Acoustic Treatment

• sE's patented acoustic filter technology at an incredibly affordable price
• Rugged enough to stand up to the most demanding work environments
• 4-layer design gives your tracks near-zero sonic coloration
• Lightweight body and clamp assembly for easy, streamlined operation

Mogami Gold Studio 25' Microphone XLR Mic Cable

• Wired with Neglex Studio Quad
• Offers superior clarity and freedom from noise/RF interference
• Terminated with black body 3-pin XLR connectors and gold contacts

On Stage Stands Mic Boom Stand - MS7701B

• Boom Length: 30
• Height Adj.: 36-64
• Base Spread: 23
• Gross Weight: 5.15 lbs
• The easy-to-use Euro-Style clutch featured on the boom stands in this series allow for convenient one-handed angle adjustments on stage.
• Tripod base leg housing is made from a combination of plastic and steel that folds for easy storage and travel
