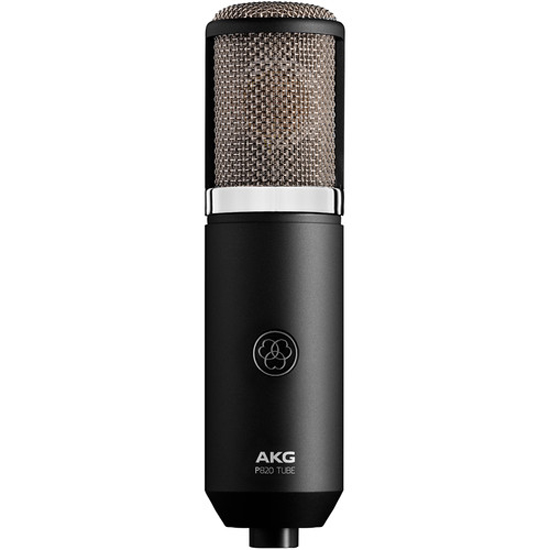

AKG P820 Tube Large-diaphragm Condenser Microphone

Flagship of AKG's Project Studio line, the P820 Tube condenser makes quality tube mic performance affordable, delivering rich sonics as only a tube mic can. The P820 Tube gives you excellent versatility, offering a choice of cardioid, onmi, and figure-8 polar patterns (plus six intermediate patterns), along with a low-cut filter and 20dB pad, all accessable from the supplied remote power supply. With its 1" dual-capsule design and advanced ECC83 dual-triode circuitry, the P820 Tube gives you you a smooth, dimensional sound. And although it excels on vocals, its ability to withstand high sound pressure levels make the P820 Tube an all-around studio workhorse. Includes metal carrying case and spider shock mount.

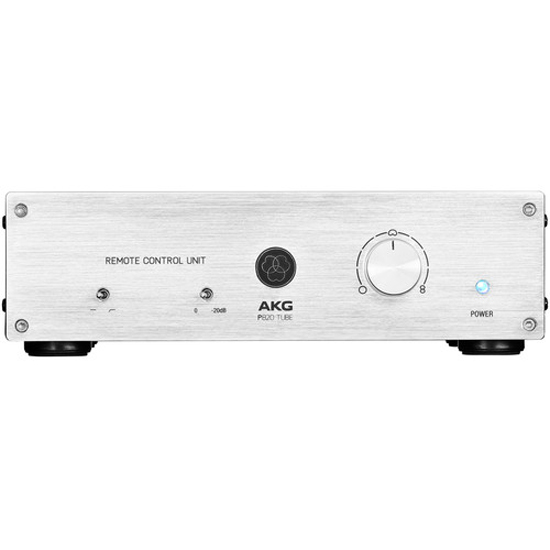

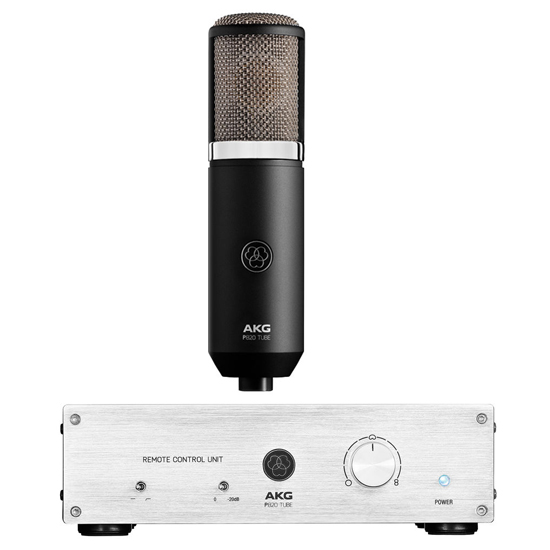

The AKG P820 Tube includes a remote power supply with a rotary switch that lets you select the microphone's polar pattern from omnidirectional (fully counter-clockwise) to cardioid (center) to figure-8 (fully clockwise). Between those settings are six intermediate patterns. All the switch positions are detented, so your settings are easily reproducible in the heat of session.

Two singers, one mic: grab the AKG P820 Tube, set it to figure-8, and you're good to go. Record a sax solo overdub with natural "slap": position the P820 Tube (again, on figure-8) between the sax player and the control room window; adjust mic position to taste. Ginormous Val Garay-style toms (two racks and a floor): three P820s on cardioid, fairly close-in - just don't let the drummer hit the mics! Full symphony orchestra, Bob Fine's Mercury Living Presence technique: again, three P820s, this time set to omni, across the proscenium arch; record to three tracks panned left, center, right. Set your levels for peaks, then leave those faders alone and let the conductor balance the orchestra. We could go on, but even without exploring the intermediate polar pattern settings, you can already see how the P820 Tube can be used in any number of ways to produce incredible sounding tracks.

Features

• Cardioid, omni, and figure-8 polar patterns, plus six intermediate patterns
• Included remote control allows choice of nine different polar patterns
• Switchable 80Hz bass-cut filter eliminates rumble
• Switchable 20dB preattenuation pad
• Perfect for high-SPL applications up to 155dB SPL
• Frequency response: 20Hz-20kHz

Specifications

• Microphone Type: Tube Condenser
• Mono/Stereo: Mono
• Polar Pattern: 9 Selectable Polar Patterns
• Diaphragm Size: 1" (25.4mm)
• Frequency Response: 20Hz-20kHz
• Max SPL: 135 dB, 155 dB w/Pad
• Output Impedance: 200 ohms
• Signal to Noise Ratio: 78dB (A weighted)
• Self Noise: 16dB (A weighted)
• Low Cut Filter: 80Hz (-12 dB/octave)
• Pads: -20 dB
• Color: Black
• Connector: XLR
• Weight: 1.69 lbs.
• Included Accessories: 1 x Shockmount, 1 x Mic, 1 x Power Cable, 1 x Metal Carrying Case
