Audio Technica ATW-802-T8

Descriptions

Audio-Technica's System 8 Wireless Systems offer reliable performance, easy setup and clear, natural sound quality. Available in handheld, headworn, guitar, lavalier and body-pack configurations, these single-channel, fixed-frequency systems are available in three traveling VHF frequencies: T2 (169.505 MHz), T3 (170.245 MHz), and T8 (171.905 MHz).

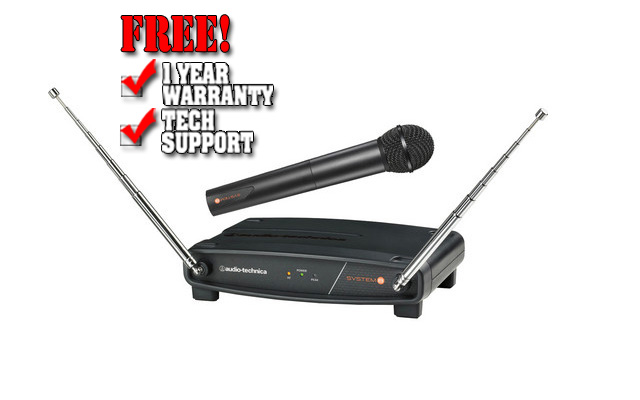

The ATW-802 handheld system features an ATW-R800 receiver and an ATW-T802 handheld dynamic unidirectional microphone/transmitter. This is the T8 (171.905 MHz) version.

Features:

• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
• Power, RF, and AF Peak indicators
• Volume control, 1/4" output jack and user-adjustable squelch
• Rugged unidirectional dynamic element on handheld microphone/transmitter
• Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
• Professional locking connector on UniPak body-pack transmitter

Specifications:

Audio-Technica System 8 Wireless General Specifications:

• Operating Frequency: VHF highband, 169 MHz to 172 MHz
• Modulation Mode: FM
• Maximum Deviation: +/-10 kHz
• Dynamic Range: >/=90 dB (A-weighted), typical
• Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
• Operating Range: 200 feet typical (open range environment with no interfering signals)
• Operating Temperature Range: 40° F to 110° F (battery performance may be reduced at very low temperatures)
• Frequency Response: 80 Hz to 13 kHz

Audio-Technica ATW-R800 Receiver Specifications:

• Receiving System: Non-diversity, single-channel, dual antenna system
• Image Rejection: 50 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions (W x H x D): 7.48" x 1.82" x 5.06"
• Net Weight: 11.8 oz
• Accessory Included: Power supply

Audio-Technica ATW-T802 Handheld Microphone/Transmitter Specifications:

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Batteries: Two 1.5V AA Alkaline (not included)
• Battery Life: 8 hours (alkaline) depending on battery type and use pattern
• Dimensions: 9.91" long 2.11" diameter
• Net Weight: 9.2oz (without battery)
• Accessory Included: AT8456a Quiet-Flex stand clamp
