Audio Technica ATW-802-T3

Descriptions

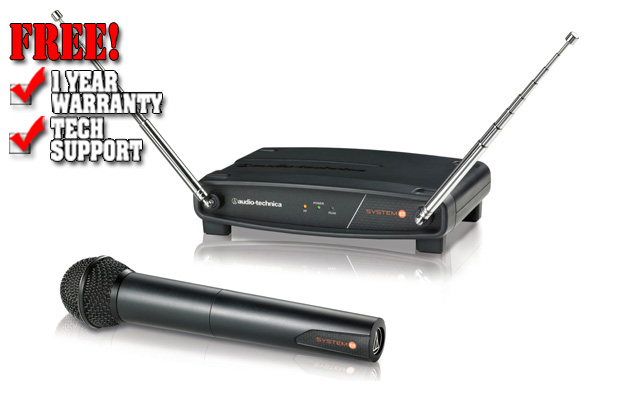

Audio-Technica's System 8 VHF Wireless Systems are engineered for today's demanding professional. Featuring sleek contemporary styling and stackable housings, the System 8 Wireless Systems are designed to provide years of reliable performance, easy setup, and only the cleanest, most natural sound quality. The ATW-802-T3 is a single-channel, fixed-frequency handheld microphone system, operating in the 170.245 MHz range (also available in 169.505 and 171.905 MHz, designated T2 and T8, respectively). You get the ATW-R800 receiver with 1/4" output, dipole antennae for extended range, as well as Power, RF, and Peak indicators and user-adjustable squelch. You also get the ATW-T802 handheld microphone transmitter, which features variable trim control, multi-color power/mute/battery indicator, and operates on standard AA batteries to make it through long shows or presentations with ease.

Specifications:

Overall System Specifications:

• Operating frequency: VHF highband, 169 to 172 MHz
• Modulation mode: FM
• Frequency response: 80 – 13,000 Hz
• Dynamic range >/= 90 dB (A-weighted), typical
• THD: <1% (@ 1 kHz) · Operating range: 200 feet (60m) typical (open range line-of-sight environment with no interfering signals)
• Operating temperature range: 40° to 110° F (4° to 43° C) Note: battery performance may be affected at very low temperatures.

Receiver Specifications:

• Receiving system: Non-diversity, single channel, dual antenna
• Image rejection: 50 dB minimum
• RF sensitivity: 20 dBuV @ 60 dB S/N ratio (50 ohm termination)
• Audio output: 1/4" unbalanced
• Power supply (included): 100-240 VAC 50/60 Hz
• Dimensions: 7.46" W x 1.82" H x 5.06" D (190 x 46.2 x 128.5 mm)
• Weight: 11.8 oz. (335 g).

Transmitter Specifications:

• Element: Dynamic
• Polar pattern: Unidirectional
• RF power output: 10mW
• Batteries: 2 AA alkaline (not included)
• Battery life: 8 hours typical (depending on battery type and usage pattern)
• Dimensions: 2.11" D x 9.11" L (53.5 x 251.8 mm)
• Weight: 9.2 oz. (260 g) without batteries.

• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
• Power, RF, and AF Peak indicators
• Volume control, 1/4" output jack and user-adjustable squelch
• Rugged unidirectional dynamic element on handheld microphone/transmitter
• Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
