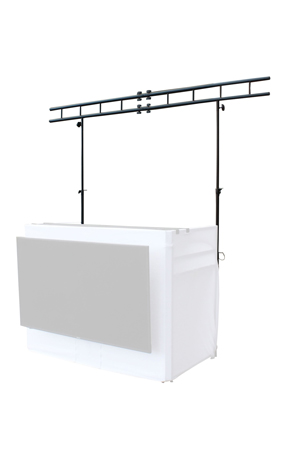

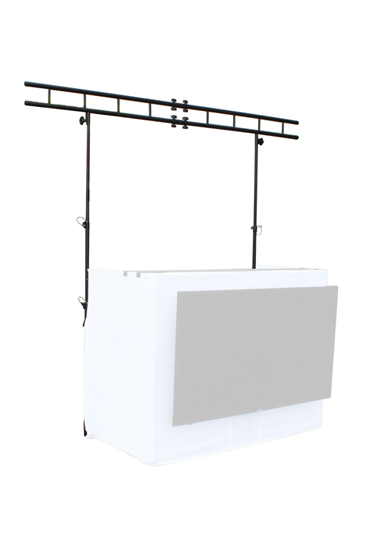

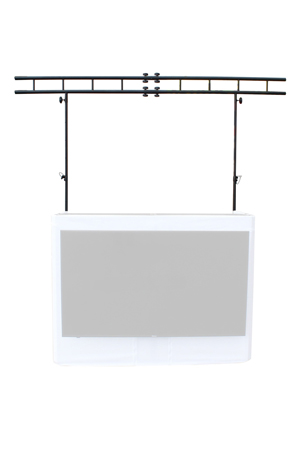

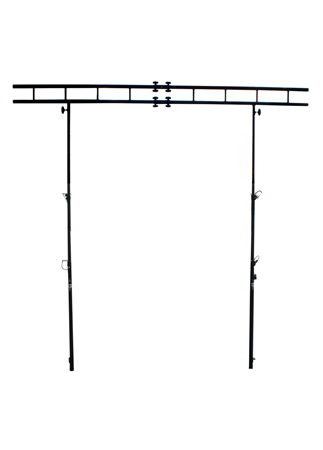

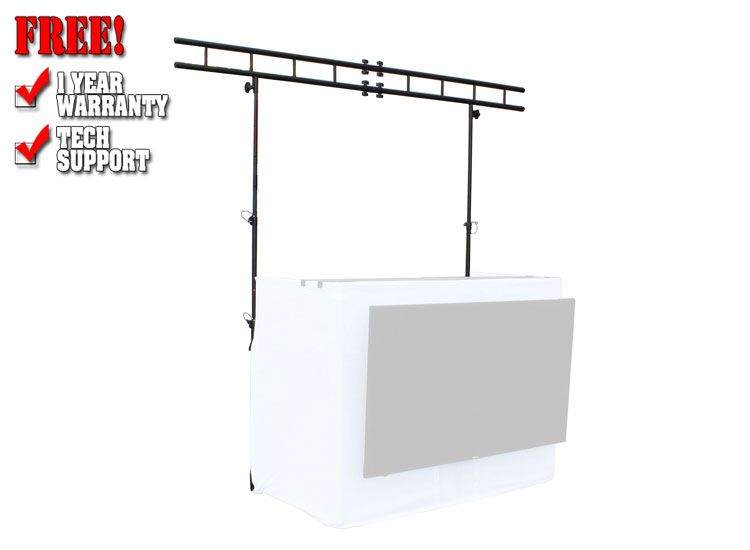

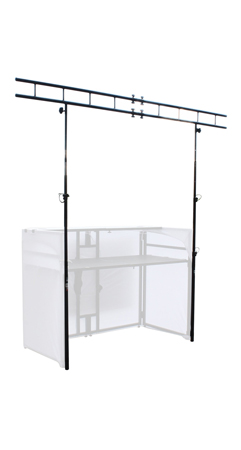

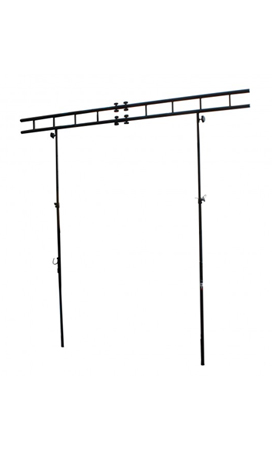

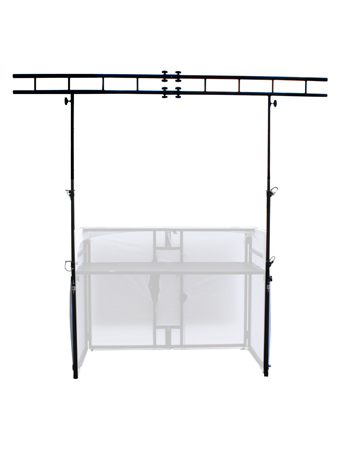

ProX XF-MESATRUSS 8FT x 8FT Mesa Facade Truss Lighting Stand with Carry Bag

The ProX XF-MESATRUSS is a Dual T-Bar Telescoping Lighting Pole Stand with Spanning Truss for XF-MESA MEDIA & XF-MESA Facades. The XF-MESATRUSS clamps are located on the rear vertical frame of the MESA Facade, and provides a unique method of mounting lighting and other lightweight fixtures without taking up additional footprint space in the DJ area. It is constructed of durable steel and is powder coated in black. The ProX XF-MESATRUSS fits Mesa Media and Mesa MK2 Facades only. Ensure that the facade and truss are positioned on a hard stable surface, in a suitable location, on firm level ground and clear of overhead obstacles. When outdoors, secure the truss system with braces or cables, in the case of wind.

ProX XF-MESATRUSS Mesa Truss Lighting Stand Features:

• T-Bars extend 10 ft high.
• 2 Interlocking 5 Foot Sections of "I" Truss.
• Steel Construction.
• Black Powder Coating.
• All Hardware Included.
• 80 lbs Capacity Evenly Distributed.
• Truss Tubing Diameter: 1 3/8".
• All Metal Connectors & Clamps.
• Fits Mesa Media and Mesa MK2 Facades.

Safety Instructions

To avoid problems a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse, and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule. Observe all warnings and usage instructions in the full manual.

Safety Notes:

• Loading on the truss system should comply with rated weights.
• Lock all the safety mechanisms (safety pins, knobs.)
• Loads must be centered & balanced.
• Safety cables or chains must be installed on each item attached to the unit.
• Leave a safety perimeter with a radius 5ft greater than the maximum height of the truss during lifting and lowering of loads.
• During transport, close all the sections and lightly tighten tube clamps.
• Do not attempt to move the facade when truss is loaded or in an extended position.

Specifications

ProX XF-MESATRUSS Specifications:

• To Fit: MESA MK2 and MESA MEDIA Facades
• Weight: 18.00 lbs
• Shipping Dimensions: 46.00"L x 5.00"D x 10.00"H
• Shipping Weight: 20.00 lbs

What's in the Box

Each XF-MESATRUSS Retail Box Includes:

• (1) ProX XF-MESATRUSS 8FT x 8FT Mesa Facade Truss Lighting Stand
• (1) Carry Bag
