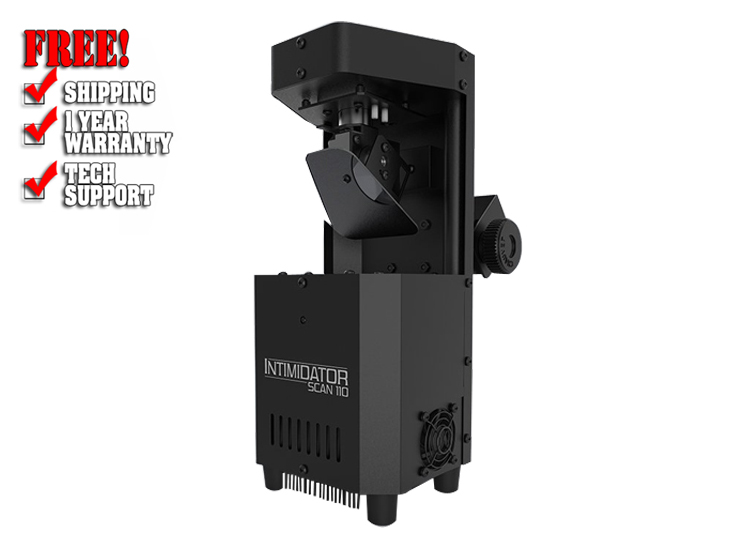

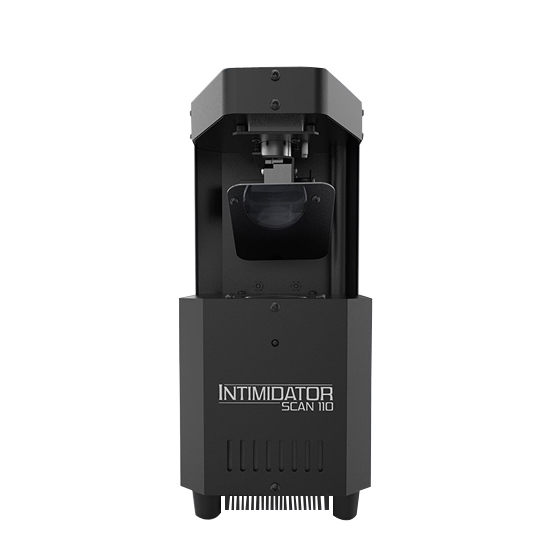

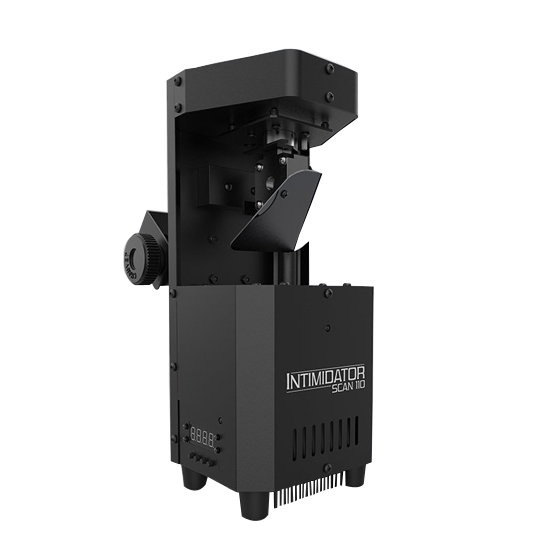

Intimidator Scan 110

Overview

Small and mighty moving beam power! Intimidator Scan 110 is an extremely compact and lightweight LED scanner perfect for mobile applications. Energize any dance floor with fast and precise movements using either sound-activated programs that dance to the beat of the music or convenient, wireless non-DMX control using an optional IRC-6 remote. Intimidator Scan 100 is a time saver too! Built-in movement macros and move-in-black features make programming fast and easy and you can save time running cables and extension cords by power linking multiple units as well. Fits best in the CHS-40 VIP gear bag.

Features:

• Extremely compact and lightweight LED scanner perfect for mobile applications
• Minimize programming time using built-in movement macros and move-in-black features
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• Save time running cables and extension cords by power linking multiple units
• Energize the dance floor with fast and precise movements
• Sound-activated programs dance to the beat of the music
• Fits best in the CHS-40 VIP gear bag

Specifications:

• DMX Channels: 5 or 11

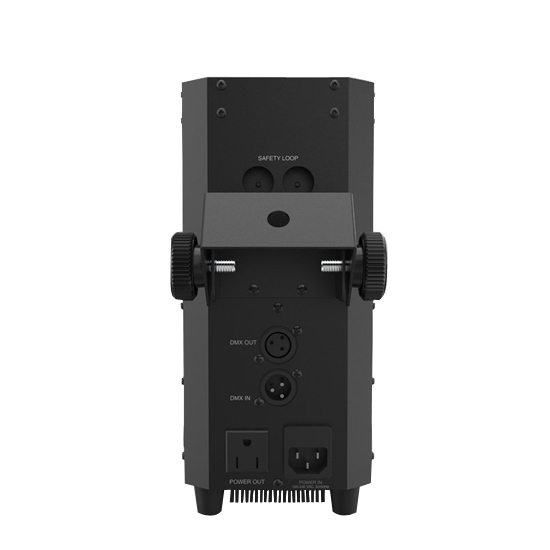

• DMX Connectors: 3-pin XLR
• Pan and Tilt: 180°/45°
• Light Source: 1 LED (cool white) 10 W, (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 18 Hz
• Beam Angle: 13°
• Illuminance: 1,110 lux @ 2 m
• Power Linking: 17 units @ 120 V; 31 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 30 W, 0.5 A @ 120 V, 60 Hz
  30 W, 0.3 A @ 230 V, 50 Hz
• Weight: 4.6 lb (2.1 kg)
• Size: 7.5 x 4.7 x 10.6 in (190.5 x 119.3 x 269 mm)
• Approvals: CE
• Combined Color/gobo combinations: 8 patterns + open
• Optional Controllers: IRC-6
