Eliminator Lighting VORTEX

Description

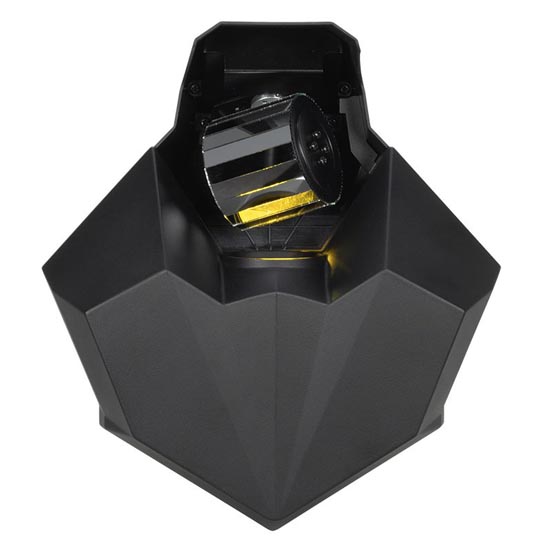

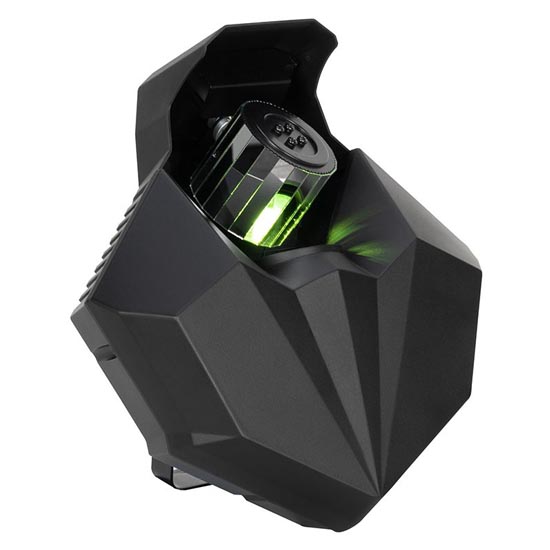

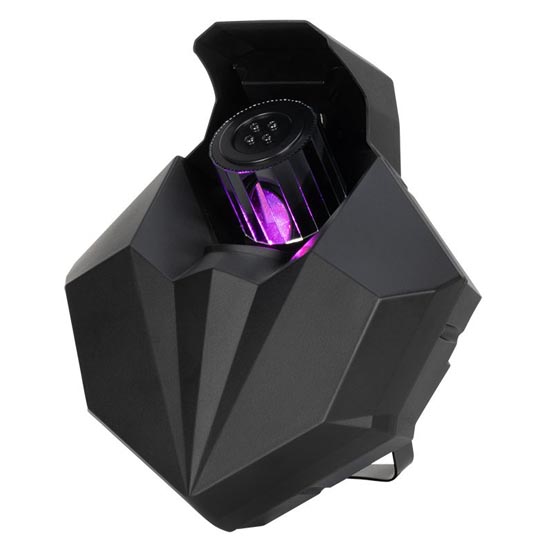

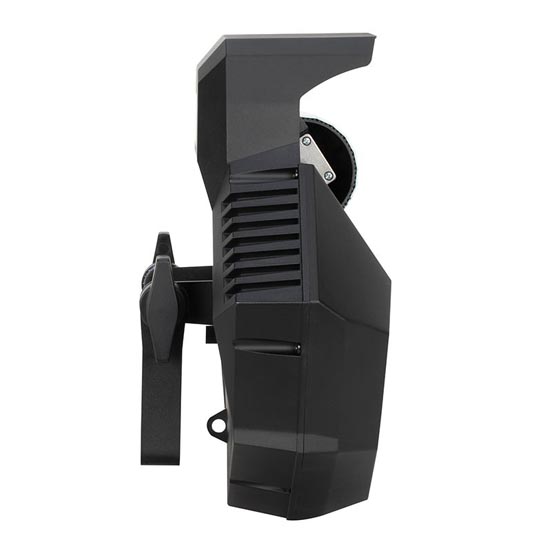

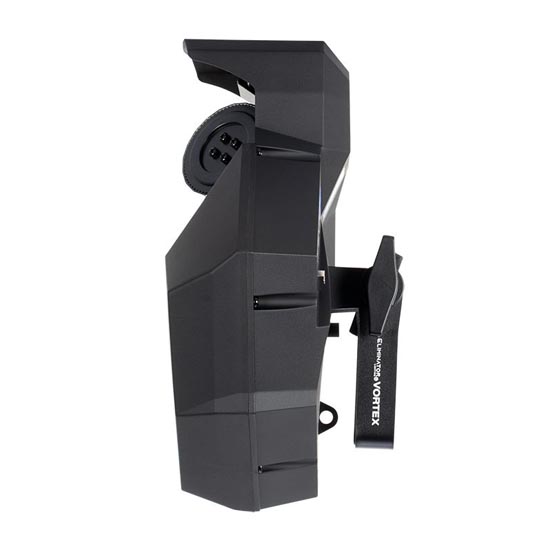

The Eliminator Vortex is a classic 80W LED moonflower effect featuring a barrel mirrored scanner.The Eliminator Vortex is a classic moonflower effect with a barrel mirrored scanner that produced multiple razor-sharp 5-degree beams of light powered by an 80W LED engine. It features 10 Color/GOBOs combinations, GOBO shake effect, mesmerizing strobe effects and has 6 built-in light shows.

The Vortex may be controlled by DMX, Remote Device Management (RDM), sound activation or in show mode from a 4-buttom control menu with a digital display. The quick barrel movements run 180-degrees on the X-axis and 260-degrees on the Y-axis. The beams may be focused from manual focusing knob.

A great effect for those who love fast moving scanner, the Vortex is compact and lightweight, making it a great effect for venues with low ceilings or tight spaces, bars, lounges, roller rinks, jump parks and fun centers.

Specifications

• Light Source:
  • 80W White LED (50,000 Hrs.)
• Barrel Mirror:
  • Barrel Movement: X-Axis = 180°, Y-Axis 360°
  • Beam Angle: Multiple Beams, 5° each
  • Beam Focusing Knob
• Colors/GOBOs:
  • 10 Color / Gobo combinations
  • Color/Gobo Shake
• Control:
  • 1-40Hz Strobe Rate
  • 6 Built-In Light Shows
  • Control: DMX512, RDM, Sound and Show Mode
  • DMX Modes: 2 DMX Control Modes (10 & 12 Channels)
  • 4-Button Digital Display

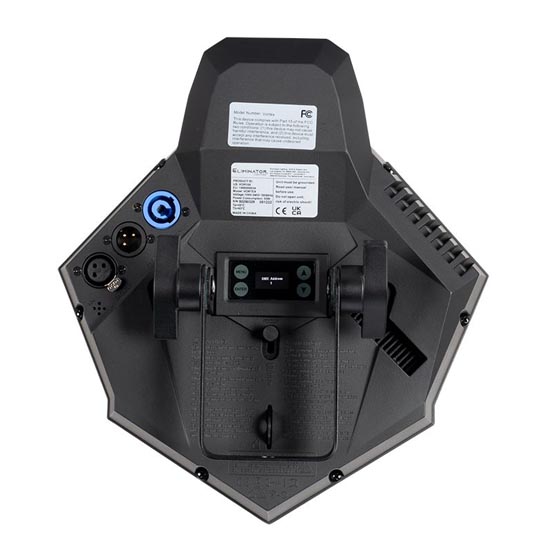

• Connections:
  • 3-pin DMX In/Out
  • Indoor Locking power input
  • Safety eye to attach a safety cable
• Electrical:
  • Power: 100-240VAC, 50/60HZ
  • Power Consumption: 100W
• Size / Weight:
  • Dimensions (LxWxH): 12.3" x 11.11" x 6.2" (312x282x157mm)
  • Weight: 7.1 lbs. (3.2Kg)
• Approvals:
  • CE and cETLus (Pending)
  • IP20
• Included:

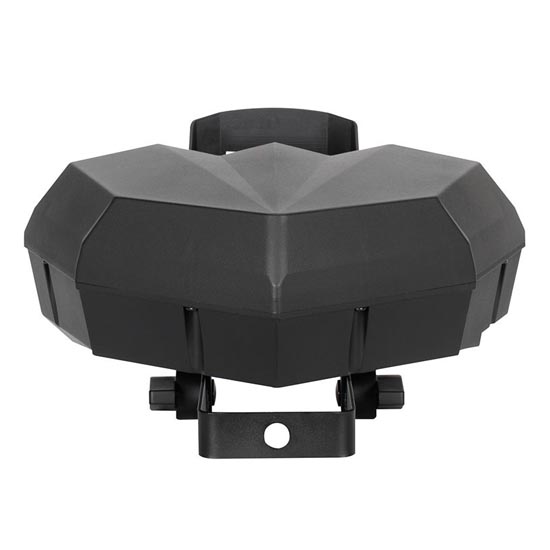

  • Adjustable Angle Hanging Bracket
  • Power Cable
