Saber Spot RGBW

Description

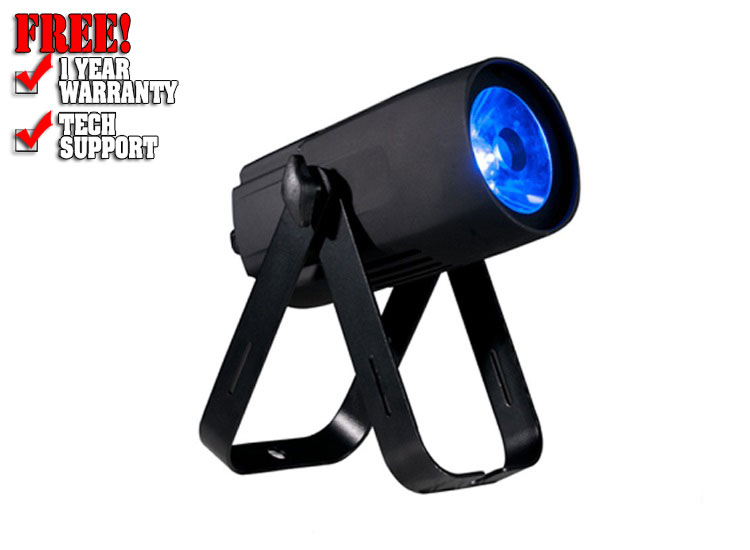

The Saber Spot RGBW is a compact Pinspot with smooth RGBW color mixing from one 15W 4-in-1 Quad LED, and features DMX-512, flicker-free operation, 64 built-in color macros, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle.

The Saber Spot RGBW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.

Specifications:

Optical:

• Light Source: 15-Watt Quad (RGBW) LED
• LED Life Expectancy: 10,000 Hrs
• Beam Angle: 4-degrees
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• Refresh Rate: 3.6KHz

Technical Features

• 9 Built-in Color Macros
• 6 Operational Modes: Static Color mode; Color Change Mode
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 - 100%
• Flicker Free
• Includes a scissor yoke to be hung, or set on the ground

Connections

• Power Input: powerCON
• Power Pass through: powerCON
• Control: 3-pin DMX In/Out pigtails
• With Wired Digital Communication Network

Control

• 11 DMX Channel Modes: 3/4/4/5/6/6/7/8/8/9/11/12

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 14W, 0.12 Amps
• Power draw 220V 50Hz: 14W, 0.06 Amps

Physical

• Dimensions (LxWxH): 3.5" x 6.75" x 3.5" / 88 x 170 x 87mm
• Weight: 2.6 lbs / 1.2 kg.
• Black Housing

Certifications

• ETL Approved, UL, CE
• IP 20: Dry area, No liquids

What's Included

• Manual
• powerCON power cord
• 2 frost filter lens (10-degree & 45-degree)
• O-ring for frost filter lens

Optional Accessories

• PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)
