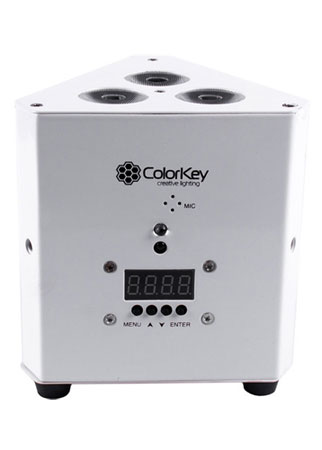

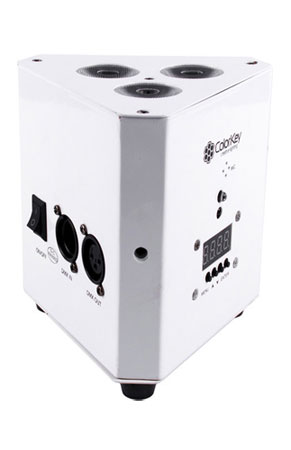

ColorKey TrussPar QUAD 3 (White)

The white ColorKey TrussPar QUAD 3 is an RGBW LED wash light designed to fit inside most triangular trussing for up-lighting truss legs and totems and is well suited for mobile DJs, concerts, weddings, and other mobile event applications. The instrument features three 10W 4-in-1 LEDS (Red, Green, Blue, & White) with a 16° beam angle and the ability to strobe. The LEDs are rated for up to 50,000 hours of life expectancy.

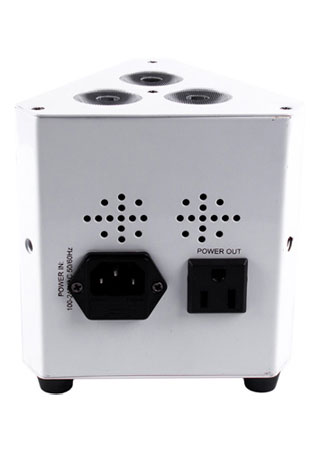

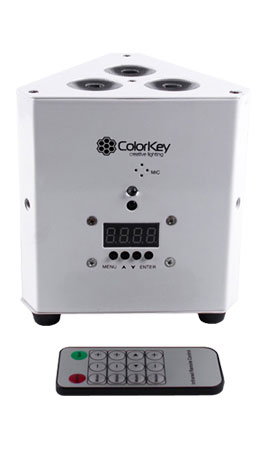

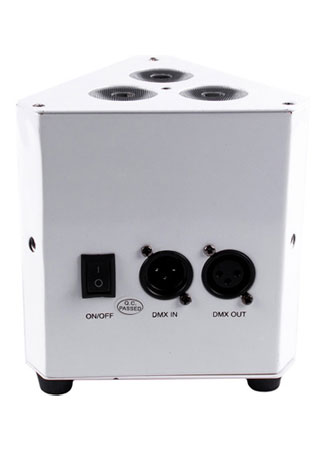

The ColorKey TrussPar QUAD 3 offers DMX control with 5 and 9 channel modes. There are 3-pin DMX input and output connectors for daisy chaining, as well as IEC power input and output for power chaining. An IRC remote is included and offers control over colors and programs.

• Light Source: 3 x 10W RGBW LED's
• DMX Channels: 5 & 9
• DMX Connectors: 3-pin XLR
• Strobe Rate: 0-17 Hz
• Beam Angle: 16?
• Field Angle: 30?
• Illuminance: 1,066 lux @ 6.6' / 2m
• Lamp Life: Up to 50,000 hrs

ColorKey TrussPar Quad 3 White Specs

• Light Source 3 x RGBW LEDs, 10 W
• (Red, green, blue, white)
• Life Expectancy Up to 50,000 hours
• Beam Angle 16°
• Field Angle 30°
• Illuminance 1,066 lux @ 6.6' / 2.0 m
• Color Mixing RGBW
• Built-In Programs Yes
• Sound Active Yes
• Master/Slave Support Yes
• Protocols DMX
• DMX Channels 5 and 9 channels
• DMX Connectors Input: 1 x XLR 3-pin
• Output: 1 x XLR 3-pin
• Remote Control Yes
• Display/Controls Four-button LED menu
• Input Voltage 100 to 240 VAC, 50-60 Hz
• Power Connector Input: Standard IEC
• Output: Standard Edison (for power chain)
• Dimensions (L x W x H) 4.3 x 4.3 x 5.3" / 109.2 x 109.2 x 134.6 mm
• Weight 1.8 lb / 0.8 kg

Packaging Info

• Package Weight 2.55 lb
• Box Dimensions (LxWxH) 6.1 x 5.6 x 4.9"
