Blizzard The Puck Unplugged RGBA

And, take full advantage of Blizzard’s wiCICLE® wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture’s DMX jack, meaning even fewer cords and less setup time.

Features:

• High-capacity Lithium-Ion Battery system provides unplugged operation for up to 20 hours!
• RGB color mixing via 144x high-power 10mm Red/Green/Blue/Amber LEDs
• Variable electronic strobe
• Variable electronic dimmer (0 – 100%)
• User selectable 4 (Red/Green/Blue/Amber dimming) or 7 DMX channels
• Built-in chase macros via DMX
• Full RGBA color mixing in Standalone, Master/Slave and DMX modes.
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• Easy to use LED control panel
• Running hours display
• Rugged all-metal case with dual mounting yokes
• IEC power in and daisy chain connections to connect additional units
• Able to directly power the wiCICLE® wireless system via DMX

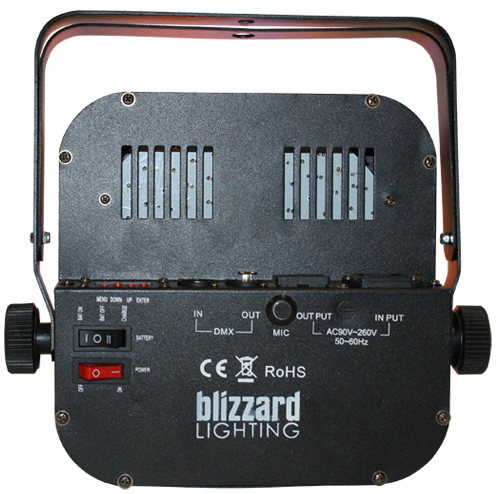

• Power and DMX connections and LED control panel are all in places which means you can truly use The Puck in ANY position, including flat on the floor!
• Two-piece mounting yoke allows flexibility in positioning

Weight & Dimensions

• Length 8.25 inches (210 mm)
• Width 3.75 inches (63.5 mm)
• Height 8.25 inches (210 mm)
• Weight 4.5 lbs (2.05 kg)

Power

• Operating Voltage 90-230VAC, 50-60 Hertz
• Fuse 3A 250V
• Power Consumption 20W

Light Source

• LED 144x 10mm Red/Green/Blue/Amber 100K hrs.

Optical

• Beam Angle 21 degrees
• 32 degree field
• Luminous Intensity 2,995 Lux @ 1m

Thermal

• Max. Operating Temp. 104 degrees F (40 degrees C) ambient

Control

• Protocol USITT DMX-512
• DMX Channels 4 or 7 (User Selectable)
• Input 3-pin XLR Male
• Output 3-pin XLR Female

Other Operating Modes

• Standalone, Master/Slave, Sound Active,
• Color Preset, Standalone color mixing

Battery

• Type/Rating
• Field-replaceable Lithium-Ion, 11.1V 8.0Ah with built-in protection circuit.

Warranty

• Fixture: 2-year limited warranty.
• Battery: 1-year limited warranty covering failure only.
