Eliminator Mega Flat Pak8 EP

The Eliminator Lighting Mega Flat Pak8 EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event. This lighting system includes: 8x Eliminator Lighting Mega Par Profile EP Pars, 8x (1M/3ft.) IEC to Edison power cables, 7x (6ft/2M) DMX Cables and a soft transport bag.

Specifications

Source:

• 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)
• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)
• Beam Angle: 30 degrees
• Long Life LEDs (50,000 hrs.)

Features:

• Smooth RGB+UV Color Mixing (fast or slow color change operation)
• Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Display Inversion Mode
• Color strobe effect
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

Control:

• 5 DMX Channel modes: 4/5/6/9/10 channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled
• 16 Sound Active shows
• 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)
• 64 built-in Color Macros
• Stand Alone or Primary/Secondary Configuration
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• With Wired Digital Communication Network
• Electronic Dimming: 0-100%
• 4-button function display

Connections:

• 3-pin DMX In/Out
• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)

Electrical:

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Draw: 16W Max

Dimensions & Weight:

• Dimensions (LxWxH): 9"x 8.75"x 3.5"/ 225x220x85mm
• Weight: 3 lbs./ 1.1 kg.

The Eliminator Lighting Mega Flat Pak8 EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage lighting to any event. It includes eight (8) Mega Par Profile EP LED Wash Fixtures, seven (7) DMX connector cables, and a soft carrying case to protect your Mega Par Profile EP's during transport and dust-free while storing.

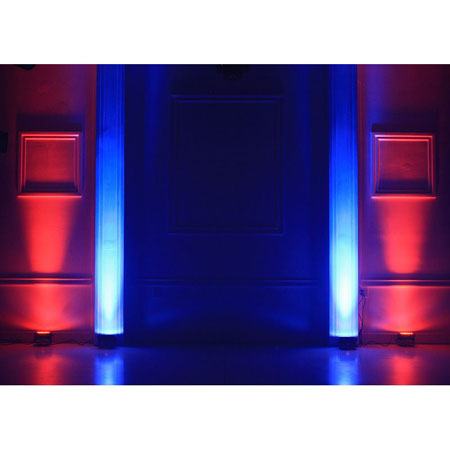

The Mega Par Profile 8 Plus slim design and vibrant RGB + UV output is perfect for Uplighting, stage washing and wall washing. The carrying case easily fits eight Mega Par Profile Plus's and the DMX cables, plus a space for a small LED Controller (controller sold separately).

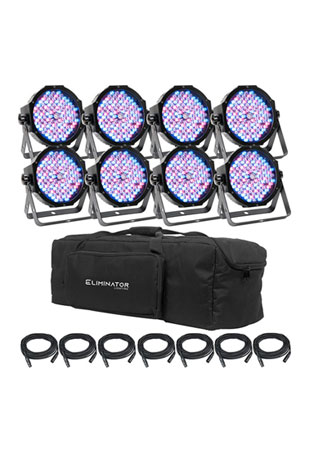

System Incudes:

• 8x Eliminator Lighting Mega Par Profile EP
• 8x (1m/3 ft) IEC to Edison Power Cables
• 7x (2m/6 ft) DMX Cables
• 1x ADJ Carry Bag

IEC power link cables sold separately and available in 3, 6, 10 & 15 foot lengths. (Items: ECCOM-3, ECCOM-6, ECCOM-10 & ECCOM-15)
