Eliminator Mega Flat PAK EP

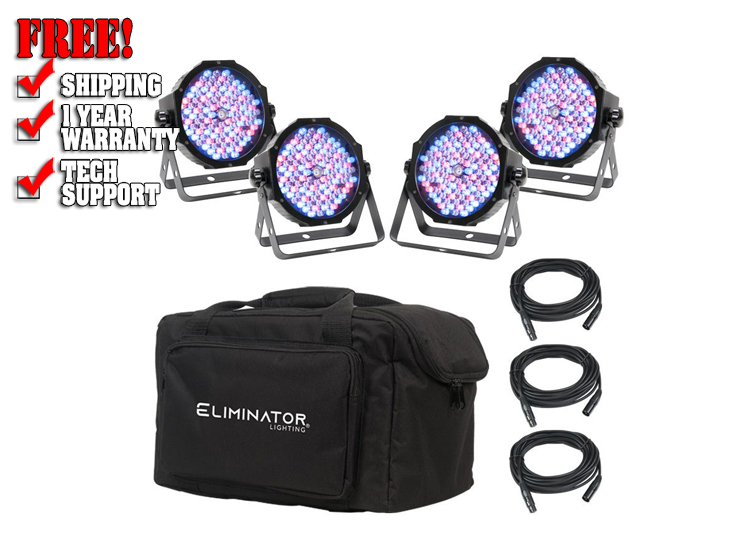

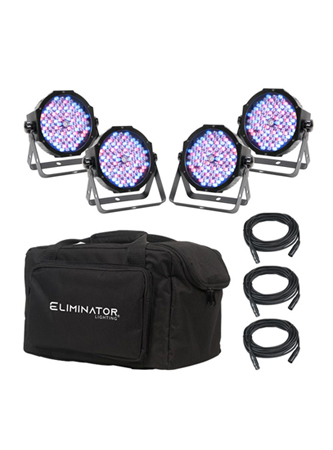

The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event. This lighting system includes: 4x Eliminator Lighting Mega Par Profile EP Pars, 4x (1M/3ft.) IEC to Edison power cables, 3x (6ft/2M) DMX Cables and a soft transport bag.

Specifications

Source:

• 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)
• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)
• Beam Angle: 30 degrees
• Long Life LEDs (50,000 hrs.)

Features:

• Smooth RGB+UV Color Mixing (fast or slow color change operation)
• Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Display Inversion Mode
• Color strobe effect
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

Control:

• 5 DMX Channel modes: 4/5/6/9/10 channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled
• 16 Sound Active shows
• 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)
• 64 built-in Color Macros
• Stand Alone or Primary/Secondary Configuration
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• With Wired Digital Communication Network
• Electronic Dimming: 0-100%
• 4-button function display

Connections:

• 3-pin DMX In/Out
• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)

Electrical:

• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Draw: 16W Max

Dimensions & Weight:

• Dimensions (LxWxH): 9"x 8.75"x 3.5"/ 225x220x85mm
• Weight: 3 lbs./ 1.1 kg.

What's Included:

• Includes scissor yoke to hang on truss, mount on a wall or set on the ground
• Power cable length: 1.8 meter (IEC)
