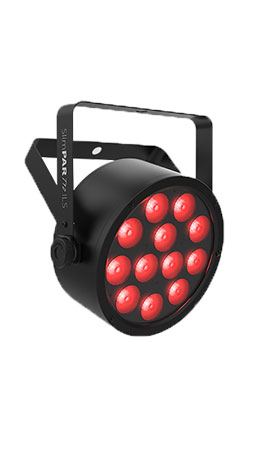

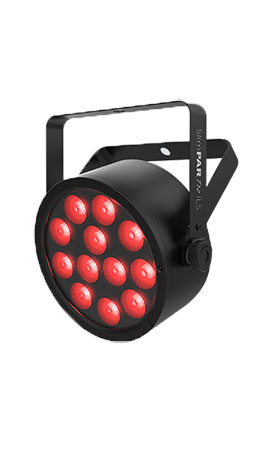

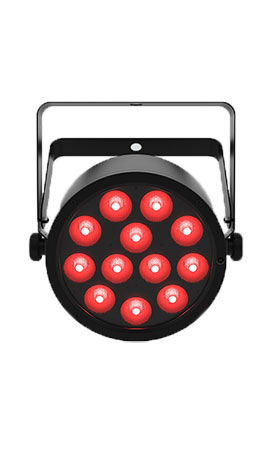

Chauvet SlimPAR T12 ILS

SlimPAR T12 ILS is a low-profile, high-output tri-color (RGB) LED Par featuring compatibility with the cutting edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. D-Fi USB compatibility is also featured for wireless Master/Slave or DMX control. From dance floor to studio, SlimPAR T12 ILS is great for on-camera use because of its flicker-free operation. This powerful par offers convenient access to RGB color mixing and static colors with or without DMX. Access built-in automated programs via IRC-6 remote, Master/Slave or DMX.

Highlights

• Low-profile, high-output tri-color (RGB) LED Par
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Convenient access to RGB color mixing and static colors with or without DMX
• Flicker-free operation suitable for on-camera use
• Save time running cables and extension cords by power linking multiple units
• Access built-in automated programs via IRC-6 remote, Master/Slave or DMX
• Fits best in the CHS-30 VIP Gear Bag
• Compact design easily fits inside sticks of TRUSST®

Specifications

• DMX Channels: 3 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 12 LEDs (tri-color RGB) 4.9 W (1.19A , 50,000 hours life expectancy
• Strobe Rate: 0 to 11 Hz
• Beam Angle: 17?
• Field Angle: 29?
• Illuminance: 3,362 lux @ 2 m
• Lumens: 1,415
• Power Linking: 13 units @ 120 V; 23 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 43 W, 0.6 A @ 120 V, 60 Hz
  43 W, 0.3 A @ 230 V, 50 Hz
• Weight: 3.6 lbs (1.6 kg)
• Size: 8.8 x 8.8 x 9.7 in (224.5 x 225.5 x 246 mm)
• Bracket Mounting Hole: 13 mm
• Optional controllers: IRC=6

WHAT'S INCLUDED

• SlimPAR T12 ILS
• Power cord
• Quick Reference Guide
