Chauvet SlimBANK H18 ILS

SlimBANK H18 ILS is a versatile hex-color (RGBAW+UV) LED wash light with brilliant eye candy effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time. Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments.

Highlights

• Versatile hex-color LED wash light with brilliant eye candy effects
• ILS compatibility for use in the ILS ecosystem
• Generate complex looks easily with built-in, eye-catching auto programs with sectional control

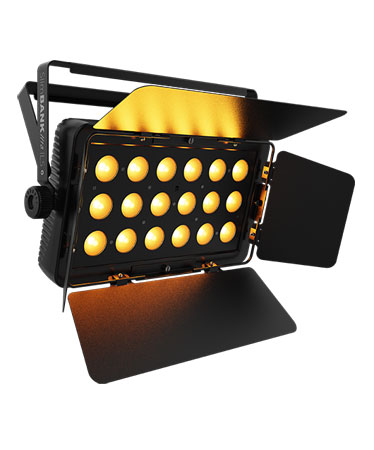

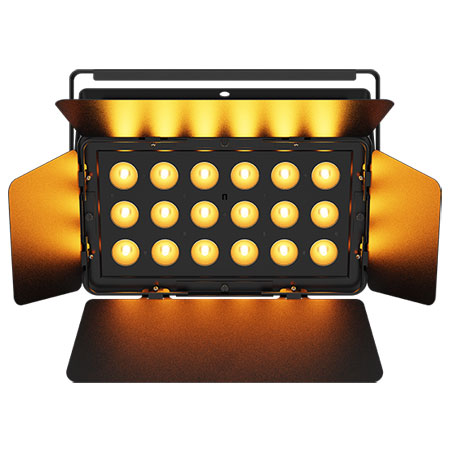

• Adjustable barn doors help direct and focus the light
• Control options include IRC-6 remote, Master/Slave, DMX, or ILS
• Achieve smooth LED fading with built-in dimming curves
• Ideal for sound-sensitive environments due to the radiant cooling design and no fan
• Save time running extension cords by power linking multiple units.

Specifications

• DMX Channels: 6, 8, 12 or 22
• DMX Connectors:3-pin XLR
• Light Source: 18 LEDs (hex-color RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 27°
• Field Angle: 43°
• Illuminance: 3,111 lux @ 2 m
• Lumens: 3,356
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
• Weight: 6 lb. (2.7 kg)
• Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
• Approvals: CE, RoHS
• Optional Controllers: IRC-6, ILS Command
• Bracket Mounting Hole: 13 mm
• Beam Angle: 27°
• Field Angle: 43°
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

WHAT'S INCLUDED

• SlimBANK H18 ILS
• Power cord
• Barn doors
• Quick Reference Guide
