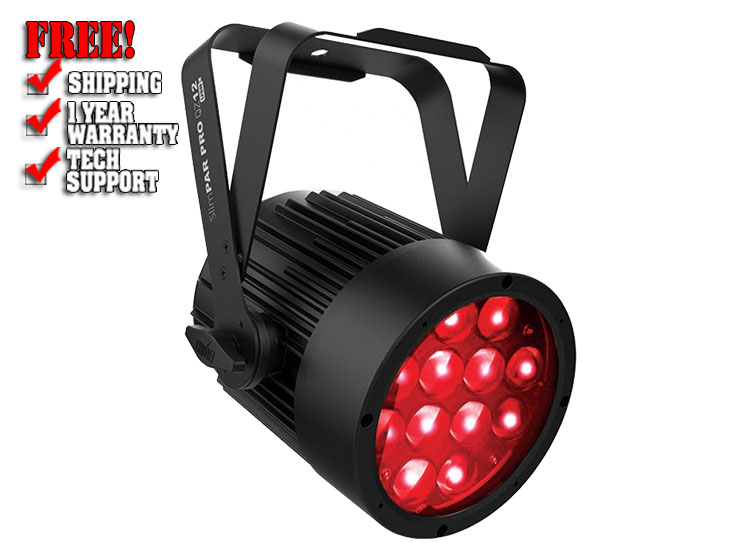

Chauvet DJ SlimPAR Pro QZ12 USB

Highlights

• Robust wash light with motorized zoom designed for mobile lighting professionals

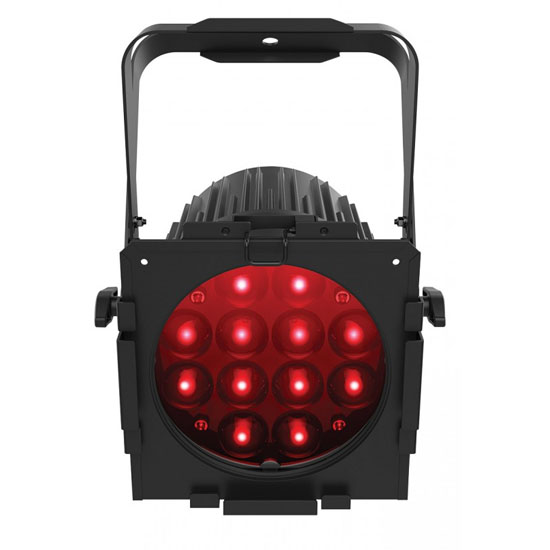

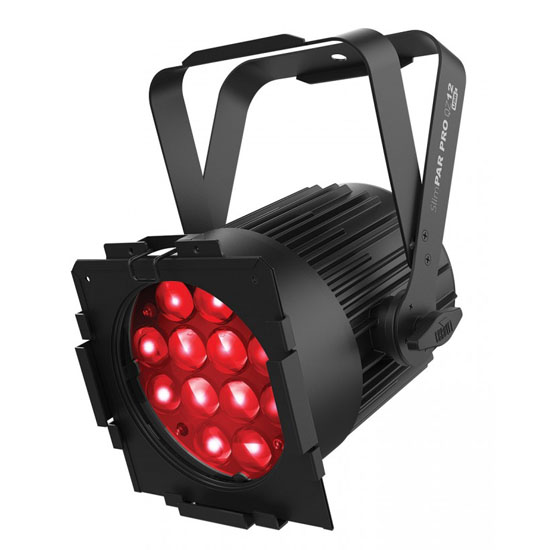

• Built-in gel frame holder and 7 1/2 -inch accessory slot to hold barn doors
• powerCON®-compatible power input/output connections for power linking
• Fanless design ensures 100% silent operation

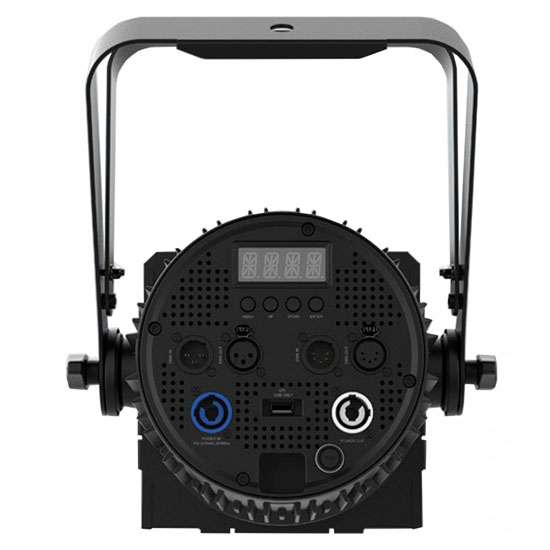

• Flexible control options with onboard 3- and 5-pin DMX connectors
• Flicker-free on video due to the high-frequency LED dimming
• D-Fi USB compatibility for wireless master/slave or DMX control
• Built-in dimming curves simulate halogen filaments
• Fits best in the CHS-40 VIP gear bag

Specifications:

• DMX Channels: 5, 6 or 11
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 12 LEDs (quad-color RGBA) 10 W (2.7 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 29 Hz
• PWM Frequency: 1,200 Hz
• Zoom Angle: (beam to field): 10° to 50°
• Illuminance: (10°): 16,070 lux @ 2 m
  (50°): 1,216 lux @ 2 m
  (10°): 2,352 lux @ 5 m
  (50°): 210 lux @ 5 m
• Power Linking: 9 units @ 120 V; 17 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 100 W, 0.8 A @ 120 V, 60 Hz
  112 W, 0.4 A @ 230 V, 50 Hz
• Weight: 10.2 lbs (4.6 kg)
• Size: 9.2 x 10.6 x 12.5 in (234 x 269 x 318 mm)
• Approvals: CE, MET, RoHS
• Optional Controllers: D-Fi USB

Whats Included

• SlimPAR Pro QZ12 USB
• SlimPAR Pro QZ12 USB
• Power cord
• Gel Frame
• Hanging bracket with mounting hardware

Downloads

• SlimPAR Pro QZ12 USB Quick Reference Guide
• SlimPAR Pro QZ12 USB User Manual
• SlimPAR Pro QZ12 USB ShowXpress Profile
