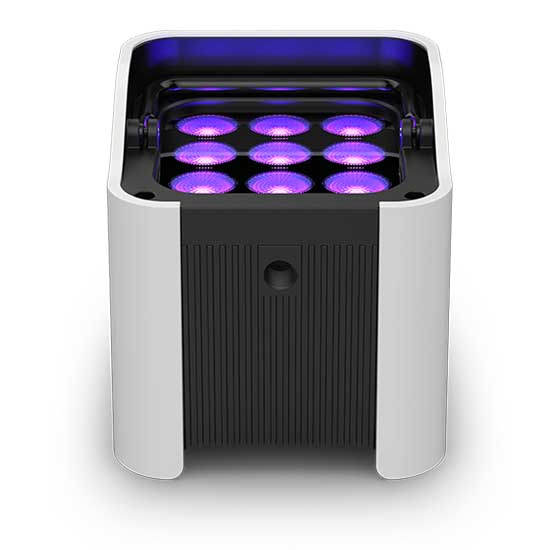

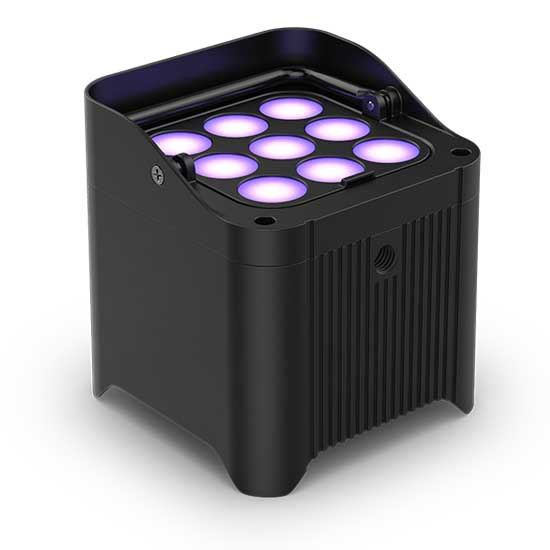

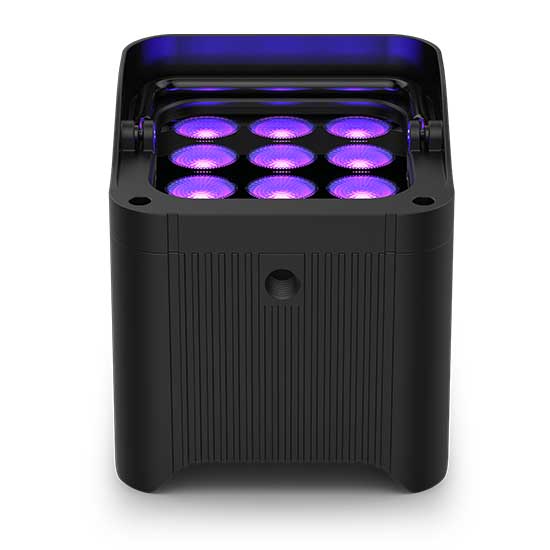

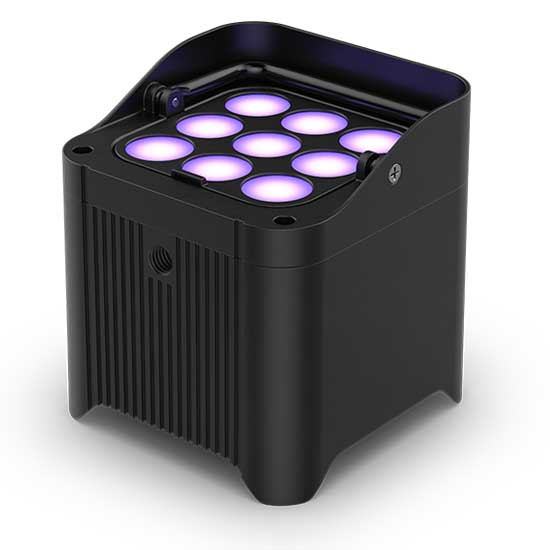

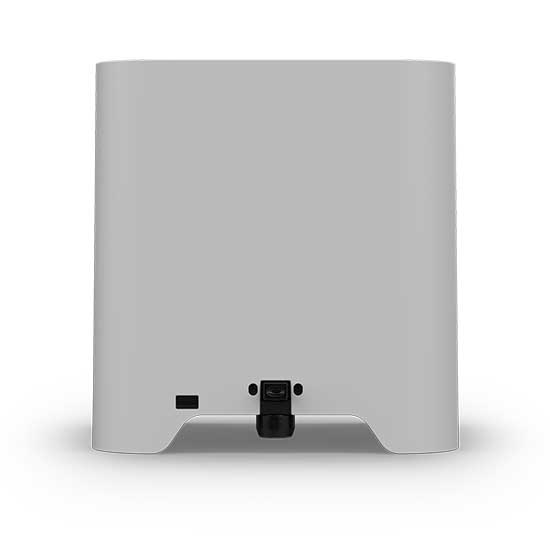

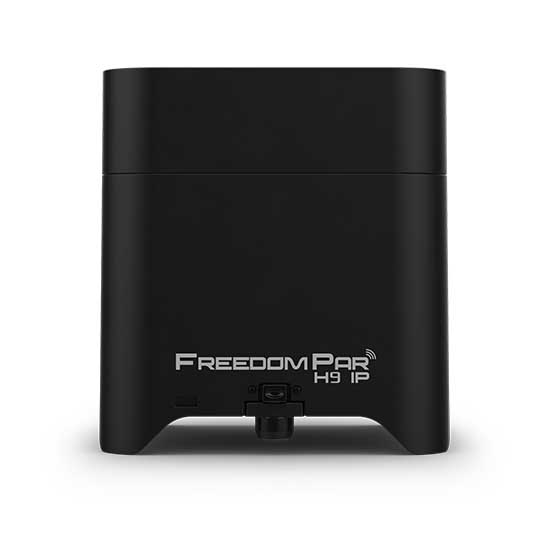

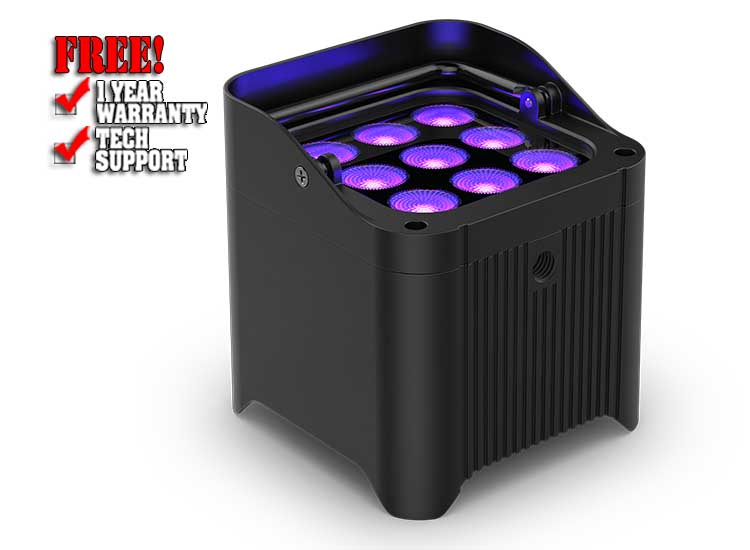

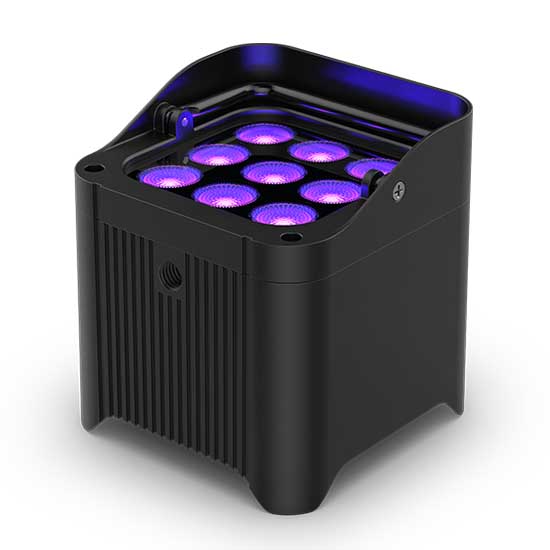

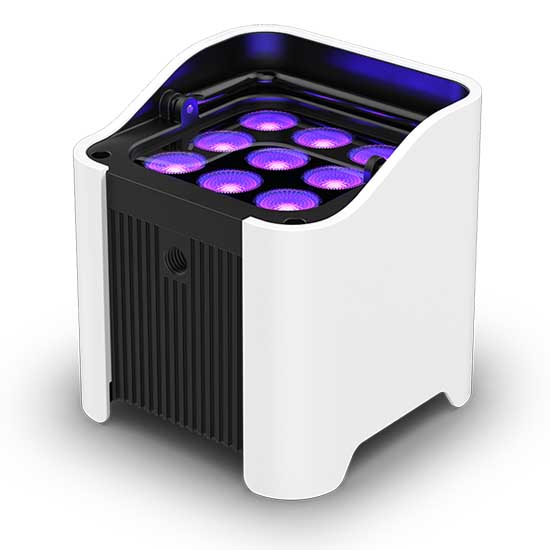

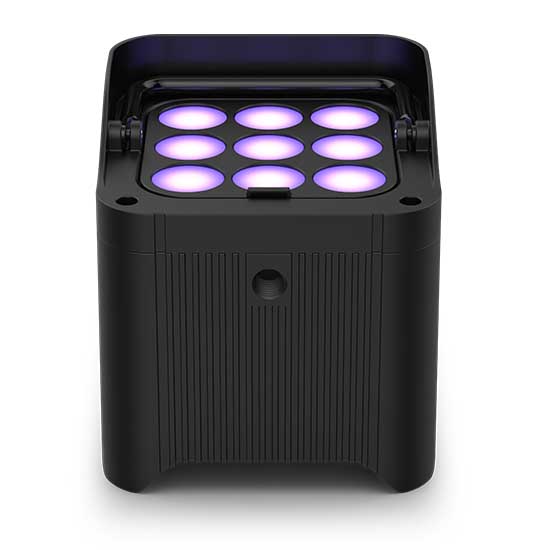

Chauvet DJ Freedom Par H9 IP

Highlights

• 100% TRUE wireless, battery-operated, hex-color LED uplight with built-in D-Fi transceiver
• Robust housing repels mother nature for temporary outdoor situations
• New secondary optics provide perfect color blending with nearly no artifacts
• Magnetic diffuser pops on or off with ease and widens the coverage area
• Adjustable run times ensure the fixture will last the length of the event
• OLED display allows for full-text and to easily change fixture's settings
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Adjust the projection angle using the spring-loaded kickstand
• Built-in glare shield protects light spillage and eye fatigue
• Extend the fixture's lifespan with the onboard charge and discharge protection circuitry
• Achieve smooth LED fading with built-in dimming curves
• Compact and lightweight design easily fits inside sticks of TRUSST®

Specifications

• DMX Channels: 6, 8 or 16
• Max Unobstructed Distance: 600 ft (183 m)
• Light Source: 9 LEDs (hex-color RGBAW+UV, 10 W, (5.7A), 50,000 hours life expectancy
• Strobe Rate: 1 to 25 Hz
• Beam Angle: 23°
• Field Angle: 46°
• Recharge Time: 3 hours
• Operating Frequency: 2.412 to 2.484 GHz
• Illuminance: 1249 lux @ 2 m
• Lumens: 1,258
• IP Rating: IP54
• Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
• Power and Current: 50 W, 0.7 A @ 120 V, 60 Hz, 50 W, 0.4 A @ 230 V, 50 Hz
• Weight: 4.6 lbs (2.1 kg)
• Size: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm)
• Approvals: CE, UKCA, RoHS, FCC
• Beam Angle (with diffuser): 40°
• Field Angle (with diffuser): 79°
• Illuminance (with diffuser): 432 lux @ 2 m
• Run Time (adjustable): 3, 5, 8, or 12 hrs
• Startup Temperature: 4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
• Bracket Mounting Hole: M12
• Optional Controllers: RFC, RFC-XL, FlareCON

Downloads

• User Manual

WHAT'S INCLUDED

• Freedom Par H9 IP
• External power supply
• Magnetic diffuser
• Quick reference guide
