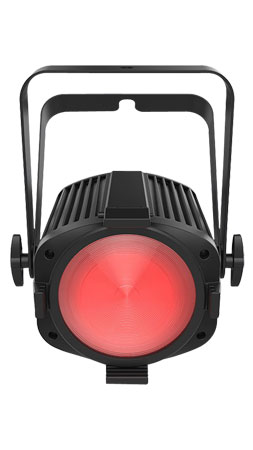

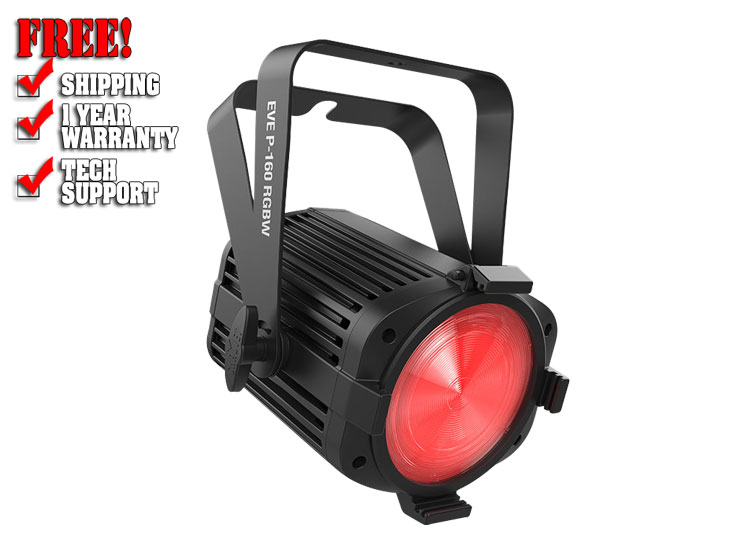

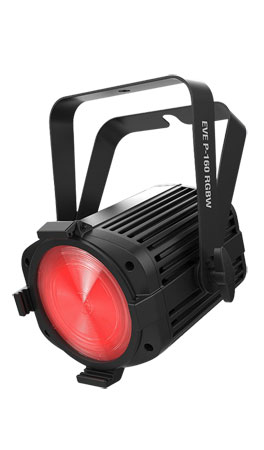

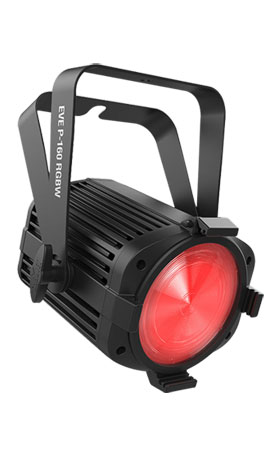

Chauvet DJ EVE P-160 RGBW

Highlights

• Robust wash light designed for mobile and installation applications
• Included interchangeable magnetic lenses alter the beam to desired angles
• Full color output as well as preset white color temperatures built in.
• Built-in gel frame holder and 6¼-inch accessory slot to hold barn doors
• Fanless design ensures 100% silent operation
• Flicker-free on video due to the high-frequency LED dimming
• D-Fi USB compatibility for wireless master/slave or DMX control
• Cast aluminum housing provides extra strength without the weight

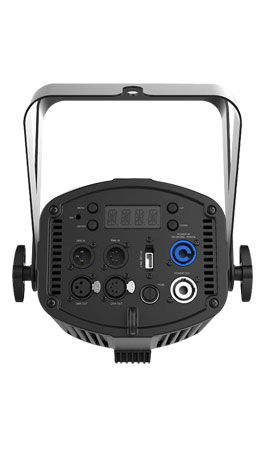

• powerCON® compatible power input/output connections for power linking
• Fits best in the CHS-40 VIP gear bag

Specifications:

• DMX Channels: 4, 6 or 11
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 61 LEDs (14 red, 13 green, 14 blue, 20 white) 160 W total, (3.8 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 33 Hz
• PWM Frequency: 2 kHz
• Beam Angle: 23°, 35° or 48°
• Field Angle: 50°, 63° or 85°
• Illuminance: (23°): 3,442 lux @ 2 m (no lens)
  (35°): 2,414 lux @ 2 m (lens 1)
  (48°): 1,310 lux @ 2 m (lens 2)
  (23°): 519 lux @ 5 m (no lens)
  (35°): 386 lux @ 5 m (lens 1)
  (48°): 211 lux @ 5 m (lens 2)
• Lumens: 4,880
• Power Linking: 11 units @ 120 V; 21 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 122 W, 1 A @ 120 V, 60 Hz
  121 W, 0.5 A @ 230 V, 50 Hz
• Weight: 7.8 lbs (3.6 kg)
• Size: 8.6 x 9.7 x 12 in (220 x 245 x 305 mm)
• Approvals: CE, MET, RoHS
• Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
• CRI: 80 (Warm White)
• Color Temperature Range: 2700 to 6500 K
• Optional Controllers: DFI USB

WHAT'S INCLUDED

• EVE P-160 RGBW
• Power cord
• 2 lenses
• Gel frame
• Quick Reference Guide
• User Manual
